5.94 inch LCD Touch Screen IPS 720*1280 MIPI 4-Channel LCD TFT Assembly Module With CTP
香港
展位编号: 5B-F09 | 显示技术世界
产品规格
型号编号
MTF060HD07A-V1
品牌
Microtech
尺寸
5.94
是否可订造
可以
产品简介
Feature | Spec | |
Display Spec. | Size | 5.94 inch |
Resolution | 720(RGB) x 1280 | |
Technology Type | a-Si | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Pixel pitch(mm) | 0.10275(W)* 0.10275(H) | |
Display Mode | Normally Black | |
LCM Luminance | 350 Cd/m2 | |
Viewing Direction | ALL | |

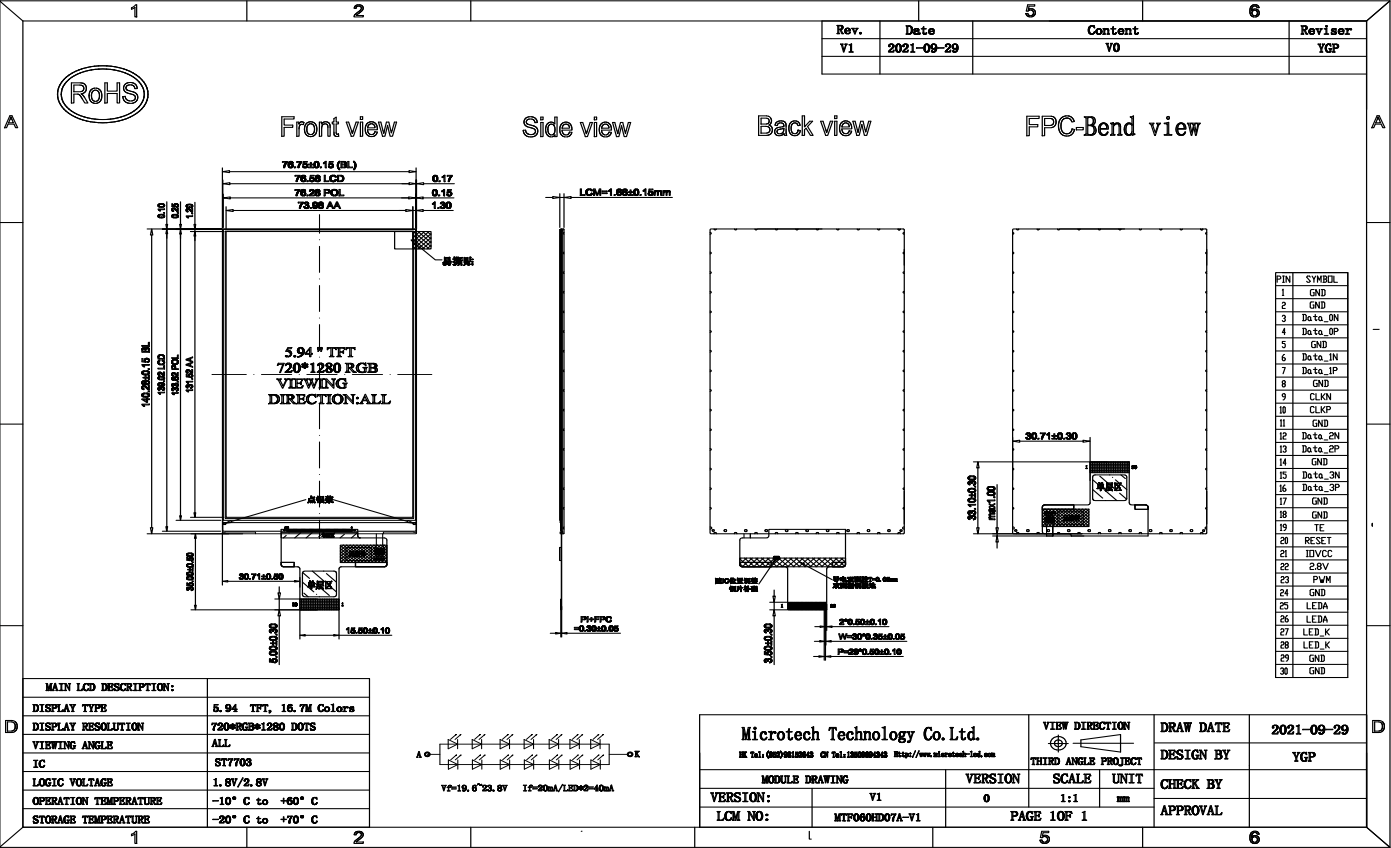

Mechanical Characteristics | LCM Module (W x H x D) (mm) | 76.75x140.28x1.66±0.15mm |
Active Area(mm) | 73.98x131.52mm | |
Matching Connection Type | FPC | |
Electrical Characteristics | LED Numbers | 14LEDs |
TFT Interface | MIPI | |
Display color | 16.7M | |
LCD Driver IC | ST7703 | |
Touch panel | CTP | |
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
生产所需时间
25-45 日
