ILI9881C 5.95 inch display module TFT dot matrix 1280*720 custom LCD screen
香港
| 生產線所在地：中國內地
展位編號: 5B-F09 | 顯示技術世界 |
產品規格
品牌
Microtech-lcd
尺寸
5.95inch
是否可訂造
可以
型號編號

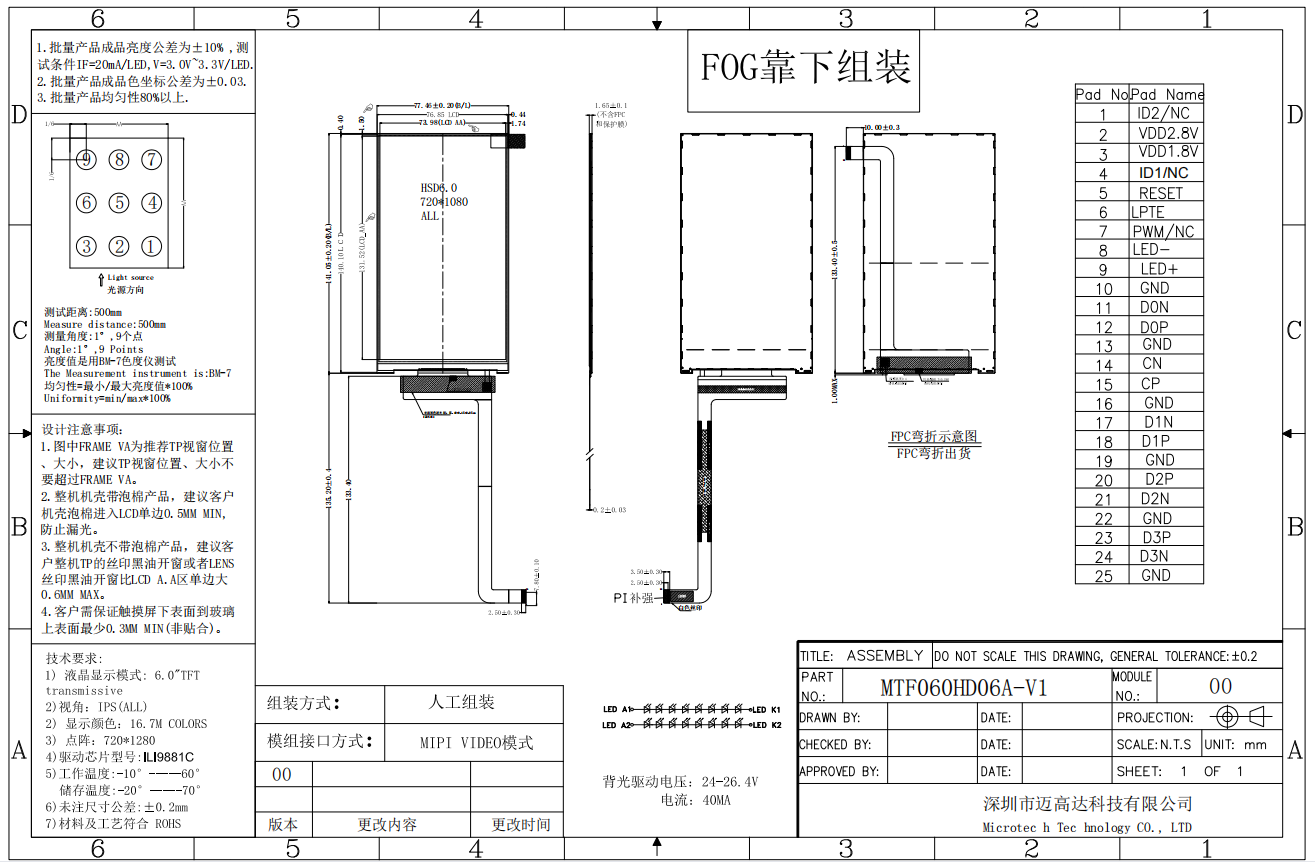

MTF060HD06A-V1
產品簡介
ILI9881C 5.95 inch display module TFT dot matrix 1280*720 custom LCD screen
Item | Contents | Unit |
LCD Type | IPS TFT-LCD /TRANSMISSIVE | - |
Number of Dots | 720(R.G.B)*1280 | Dot |
Outline dimensions | 77.46( W)* 141.05(H)* 1.65(T) | mm3 |
Active area | 73.98(W)* 131.52(H) | mm2 |
Pixel pitch | 0.10275*0.10275 | mm2 |
Module size | 5.95 | inch |
Viewing direction | All view | O'clock |
Backlight type | White LED(14*LED) | - |
LCD Driver IC | IL19881C | - |
Interface type | 4L M1PI interface | - |
LCM Input voltage | 2.8±0.1 | V |
生產所需時間
25-45 日
