FSTN blue/green/red backlight low temperature gas measuring instrument display
香港
| 生產線所在地：中國內地
展位編號: 5B-D08 | 顯示技術世界 |
產品規格
品牌
Microtech
是否可訂造
可以
型號編號
MTD449TA-V1
產品簡介

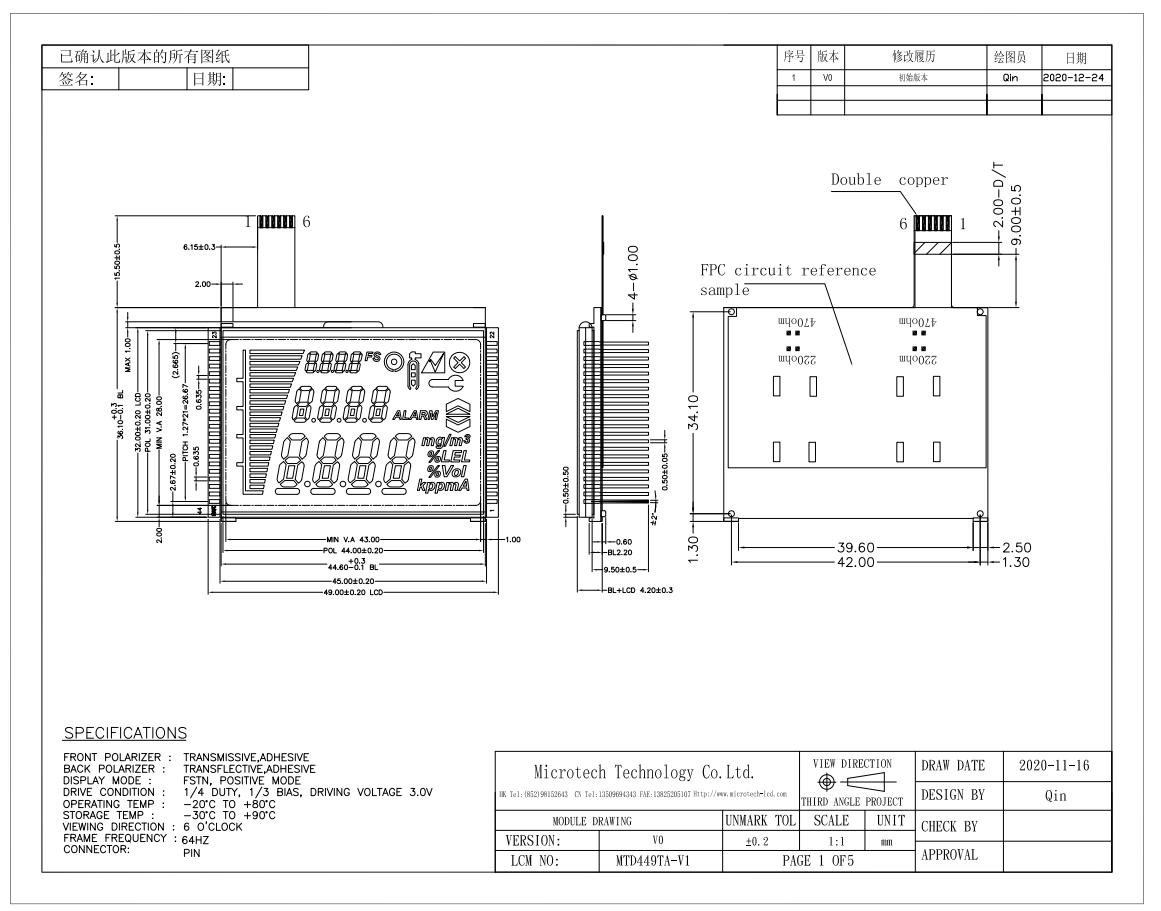

FSTN blue/green/red backlight low temperature gas measuring instrument display
FRONT POLARIZER | TRANSMISSIVE,ADHESIVE |
BACK POLARIZER | TRANSFLECTIVE,ADHESIVE |
DISPLAY MODE | FSTN POSITIVE MODE |
DRIVE CONDITION | 1/4 DUTY,1/3 BIAS,DRIVING VOLTAGE 3.0V |
OPERATING TEMP | -20℃ TO+80℃ (custom) |
STORAGE TEMP | -30℃ TO+90℃ (custom) |
VIEWING DIRECTION | 6 O'CLOCK |
FRAME FREQUENCY | 64HZ |
CONNECTOR | PIN |
生產所需時間
25-45 日
