Industrial Control Screen 10.1inch CTP LCD touch screen USB interface Driver IC ILI2511
香港
| 生產線所在地：中國內地
展位編號: 5B-F09 | 顯示技術世界 |
產品規格
品牌
Microtech
型號編號
MTP101GG30A-V1
尺寸
10.1inch
是否可訂造
可以
產品簡介

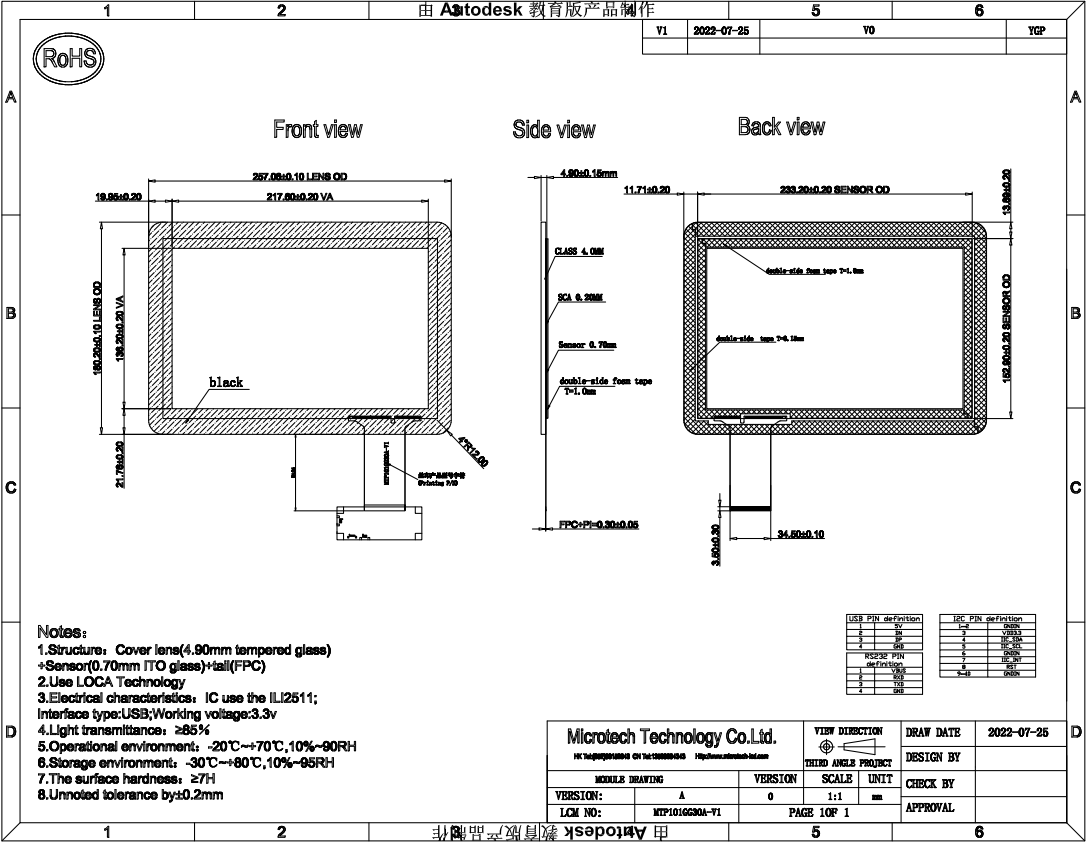

1.STRUCTURE: COVER LENS (4.90MM TEMPERED GLASS) + SENSOR (O.70MM ITO glass) + TAIL (FPC)
2.USe LOCA Technology
3.Electrical characteristics: IC use the ILI2511: Interface type: USB: Working voltage:3.3V
4.Light transmittance: ≥85%
5.OPERAtIONAL environment: -20℃~+70℃, 10%-90RH
6.STORAGE ENVIRONMENT: -30C-+80, 10%-95RH
7.THE SURFACE hardness: ≥7H
8.UNNOTED TOLERANCE BY ±0.2MM
生產所需時間
25-45 日
