    SA2300 three phase Power Quality Analyzer
    Shijiazhuang Suin Instruments Co., Ltd.
    中国内地
    展位编号: 5E-D06 | 电子配件及移动电子产品 |
    产品规格
    尺寸

    158 x 200 x 47mm

    Brand

    Suin

    Minimum Order Quantity

    1 piece

    Type of Payment

    T/T Advance

    Colour

    Blue

    Package

    有

    港口

    Beijing

    类型

    电度表

    Customised

    是

    产品型号

    SA2300

    产品简介

    Overview

    SA2300 can calculate a large number of electrical parameters and display them quickly. The device offers extensive and powerful measurements functions to check power distribution system, so it can detect quality of power grid and electrical characteristics rapidly and conveniently.

    Design Features

    • Economical, compact and simple to use
    • Provide all necessary measurement function
    • 4.3 inch color LCD touch screen
    • 32GB Micro SD card is used for storage

    Advance function interface

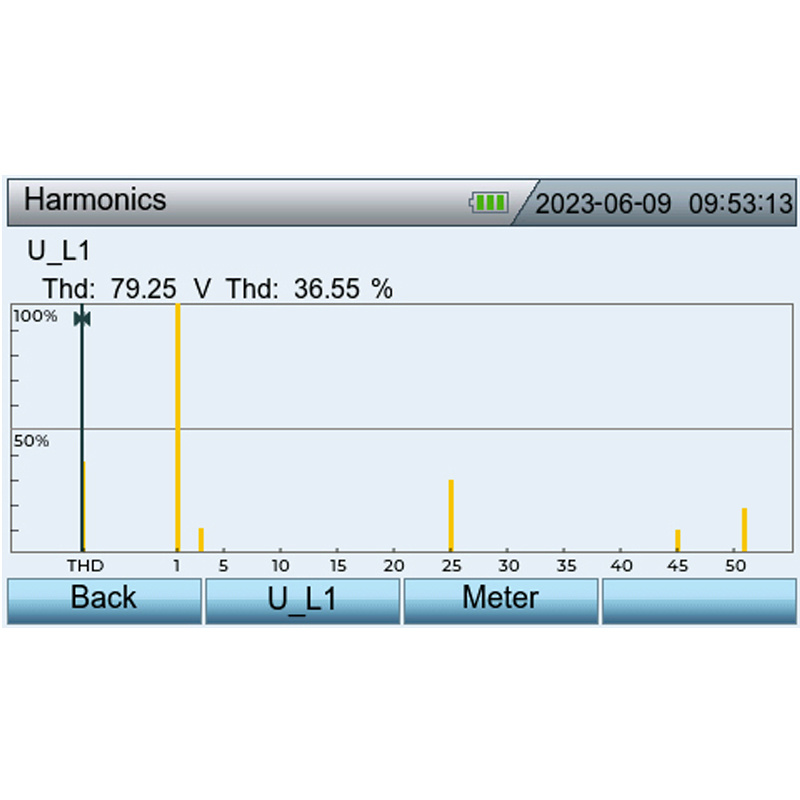

    1. Track harmonics up to 51th

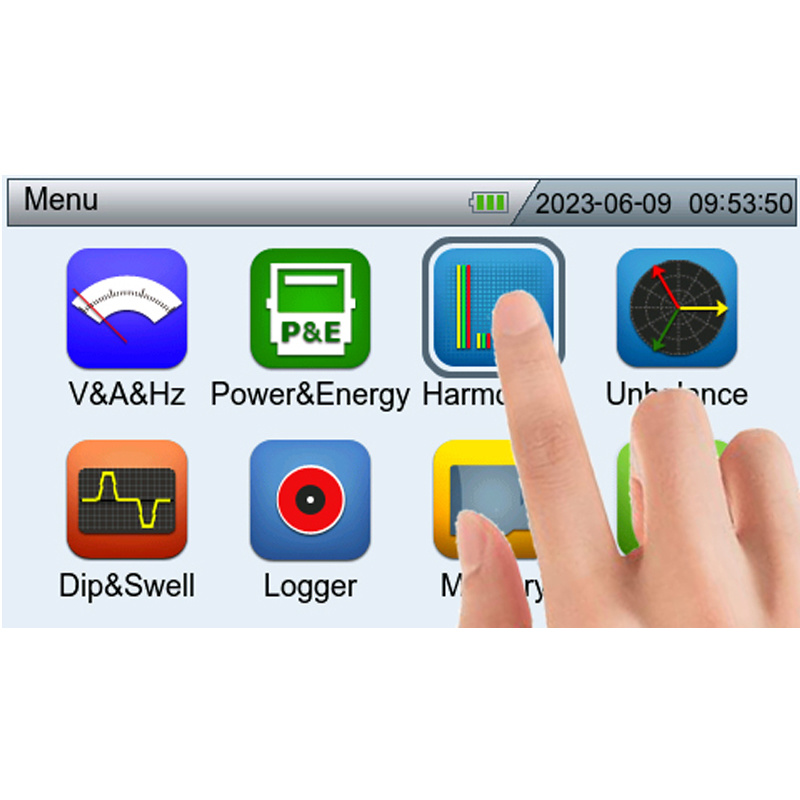

    2. 4.3 inch touch screen display for a easier operation

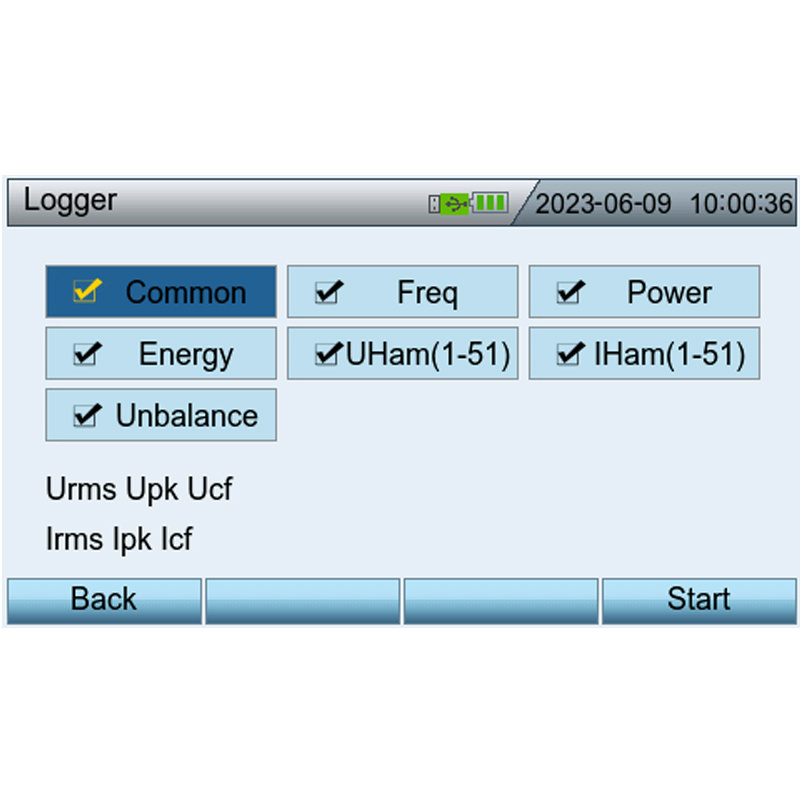

    3. Powerful logger function

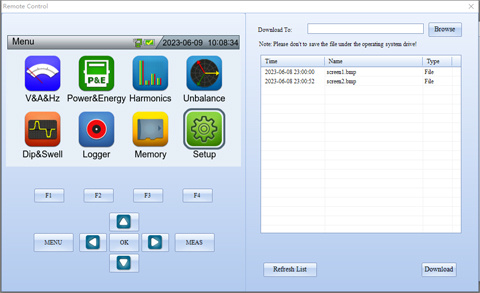

    4. Equipped with PC software for data analysis

     Specifications

    INPUT
    4 current input channels+4 voltage input channels
    3 PHASE MULTI-POWER SYSTEM

    1P/2W(1P+NEUTRAL

    1P IT NO NEUTRAL)

    1P/3W(1P Split Phase)

    3P/3W(3P DELTA)

    3P/4W (3P WYE)

    DATA REFRESH RATE
    1s
    MEASUREMENT

    Voltage/ACV

    (Urms, Upk)

    		Range5~600Vrms

    Accuracy

    (L1/A,L2/B,L3/C)

    		±0.2%±2counts
    PT ratio1 to 10000, variable

    Current/ACA

    (Irms, Ipk)

    		Range1500A, with SY-1500A current probe
    Accuracy±0.2%±5counts

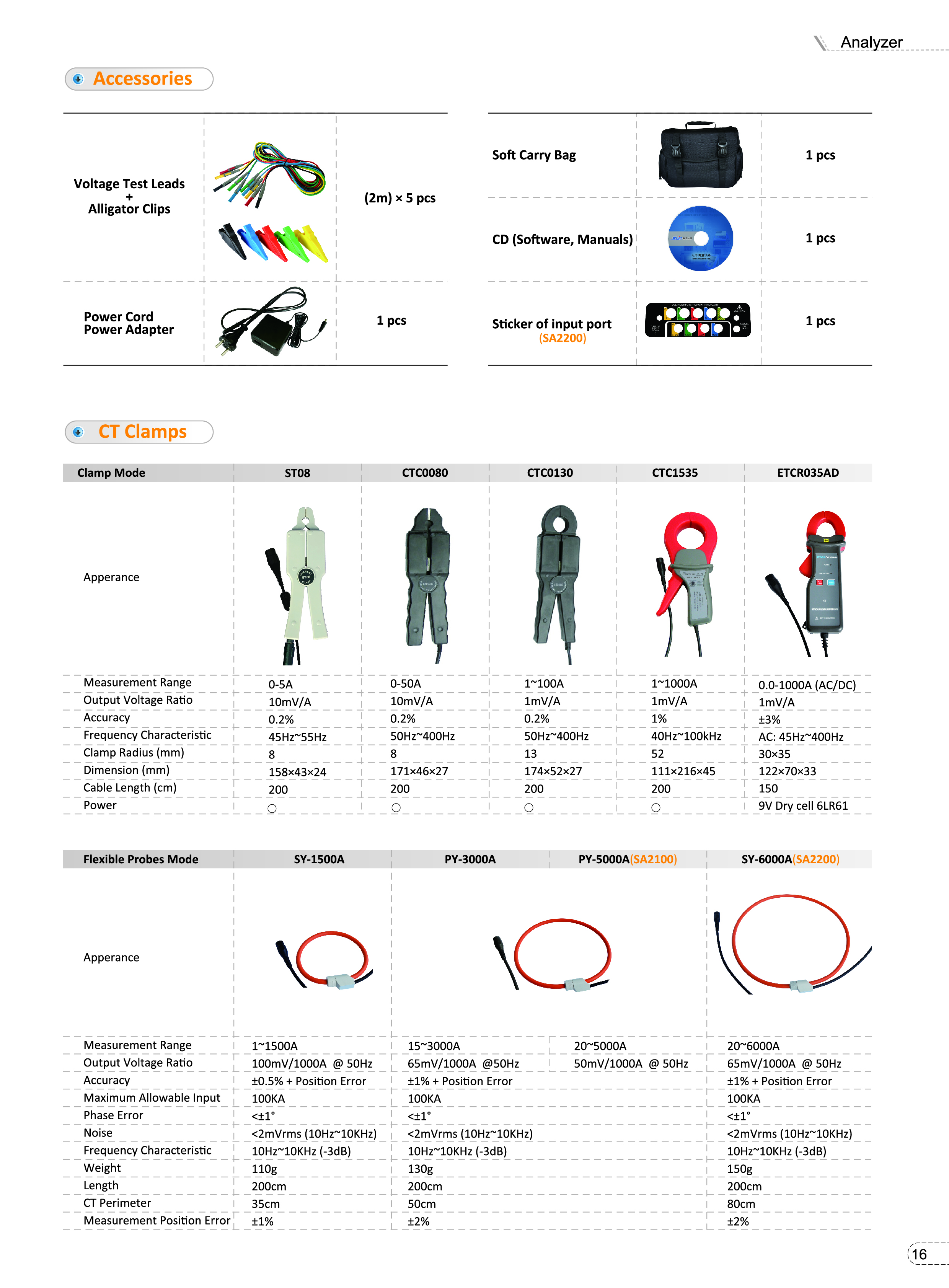

    Optional current probe

    ST08-5A, CTC0080-50A,CTC0130-100A,

    PY-3000A, SY-6000A

    CT ratio1 to 10000, variable
    FrequencyRange

    42.5-57.5Hz (50Hz nominal)

    51-69Hz (60Hz nominal)

    HarmonicNumber1-51th
    Accuracy±0.1%±n x 0.1%
    THD±2.5%
    Power

    Active power (P), Reactive power(Q),

     Apparent power(S),  Power Factor (PF),

    cosФ (DPF)

    Energy

    Active energy (EP), Reactive entergy(EQ),

     Apparent energy(ES)

    Transient EventDips/swell
    LoggerInterval1s to 60 minutes
    Memory 32G Micro SD card
    GENERAL
    Display4.3 inch color touch screen/480x272
    LanguageMulti languge including Chinese, English, etc.
    Communication PortUSB Host, LAN
    Dimension/Weight158x200x47mm/1kg
    Power

    18650 lithium ion 3.6V x 2, 5100mAh / 6h

    or DC 5V/3A adapter

    Safety standardIEC61010-1, CATIII 600V




    生产所需时间

    30 日
