Car audio amplifier Class AB 4 Channels Amplifie FX-4
中国内地
展位编号: 3C-F15 | 汽车及车载电子产品 |
产品规格
型号编号
FX-4
品牌
FREUDE
系列
FX series(car audio amplifier)
产品简介

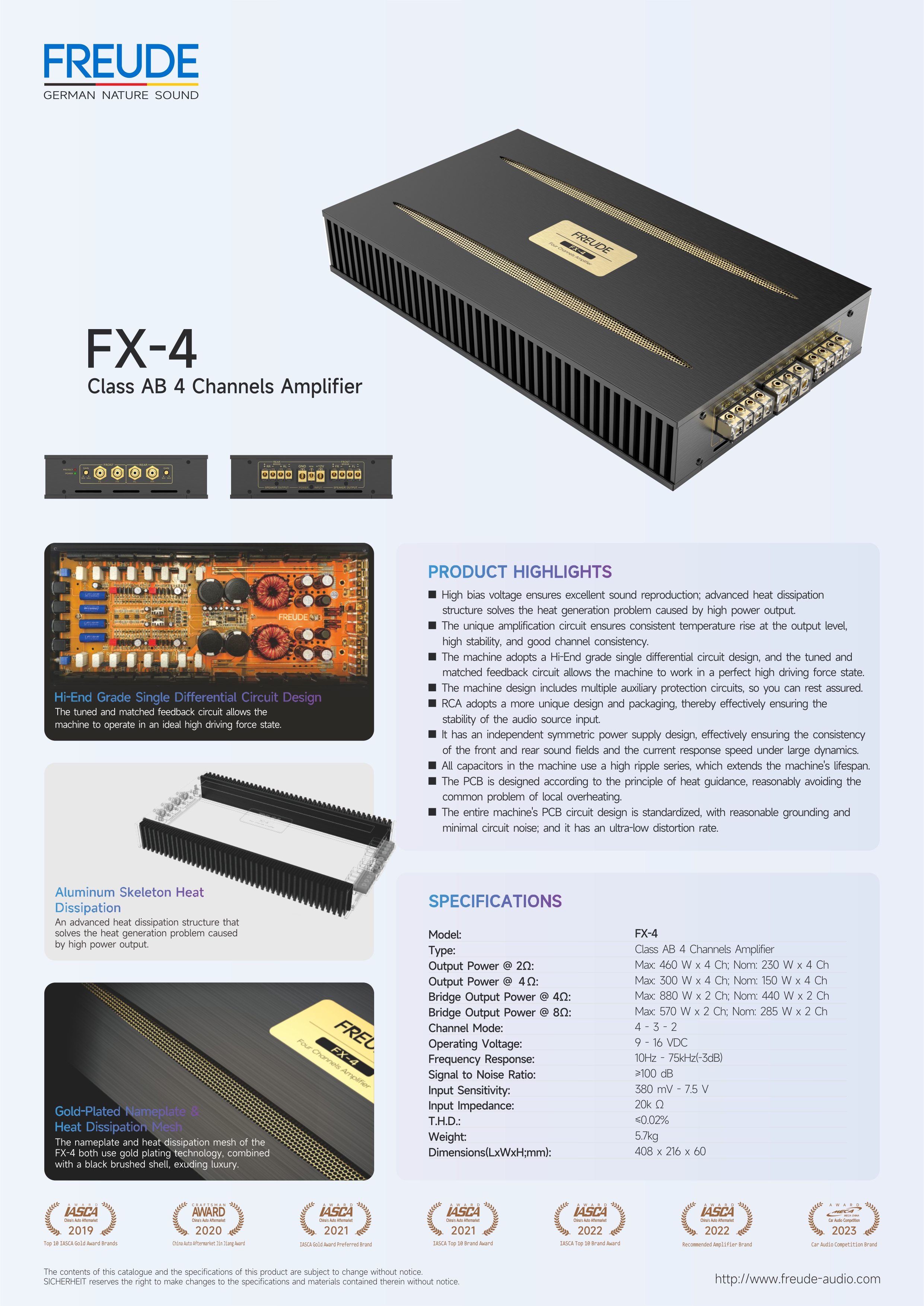

FX-4
Class AB 4 Channels Amplifie
■ High bias voltage ensures excellent sound reproduction; advanced heat dissipation structure solves the heat generation problem caused by high power output.
■ The unique amplification circuit ensures consistent temperature rise at the output level, high stability, and good channel consistency.
■ The machine adopts a Hi-End grade single differential circuit design, and the tuned and matched feedback circuit allows the machine to work in a perfect high driving force state.
■ The machine design includes multiple auxiliary protection circuits, so you can rest assured.
■ RCA adopts a more unique design and packaging, thereby effectively ensuring the stability of the audio source input.
■ It has an independent symmetric power supply design, effectively ensuring the consistency of the front and rear sound fields and the current response speed under large dynamics.
■ All capacitors in the machine use a high ripple series, which extends the machine's lifespan.
■ The PCB is designed according to the principle of heat guidance, reasonably avoiding the common problem of local overheating.
■ The entire machine's PCB circuit design is standardized, with reasonable grounding and minimal circuit noise; and it has an ultra-low distortion rate.
■ High bias voltage ensures excellent sound reproduction; advanced heat dissipation structure solves the heat generation problem caused by high power output.
■ The unique amplification circuit ensures consistent temperature rise at the output level, high stability, and good channel consistency.
■ The machine adopts a Hi-End grade single differential circuit design, and the tuned and matched feedback circuit allows the machine to work in a perfect high driving force state.
■ The machine design includes multiple auxiliary protection circuits, so you can rest assured.
■ RCA adopts a more unique design and packaging, thereby effectively ensuring the stability of the audio source input.
■ It has an independent symmetric power supply design, effectively ensuring the consistency of the front and rear sound fields and the current response speed under large dynamics.
■ All capacitors in the machine use a high ripple series, which extends the machine's lifespan.
■ The PCB is designed according to the principle of heat guidance, reasonably avoiding the common problem of local overheating.
■ The entire machine's PCB circuit design is standardized, with reasonable grounding and minimal circuit noise; and it has an ultra-low distortion rate.
| Model: | FX-4 |
| Type: | Class AB Four Channels Amplifier |
| Channel Mode: | 4 - 3 - 2 |
| Max Power @ 2Ω: | 460 W x 4 Ch |
| Nom Power @ 2Ω: | 230 W x 4 Ch |
| Max Power @ 4Ω: | 300 W x 4 Ch |
| Nom Power @ 4Ω: | 150 W x 4 Ch |
| Bridge Max Power @ 4Ω: | 880 W x 2 Ch |
| Bridge Nom Power @ 4Ω: | 440 W x 2 Ch |
| Bridge Max Power @ 8Ω: | 570 W x 2 Ch |
| Bridge Nom Power @ 8Ω: | 285 W x 2 Ch |
| Frequency Response: | 10Hz - 75kHz(-3dB) |
| Signal to Noise Ratio: | ≥100 dB |
| T.H.D.: | ≤0.02% |
| Input Sensitivity: | 380 mV - 7.5 V |
| Input Impedance: | 20k Ω |
| Operating Voltage: | 9 - 16 VDC |
| Net Weight: | 5.7kg |
| Dimensions (LxWxH;mm): | 408 x 216 x 60 |
