    DSP Amplifier Class D 4 Channels Amplifier-FH-4 Mini
    Speical City intelligent manufacturing (Zhongshan) Co., LTD
    中國內地
    展位編號: 3C-F15 | 汽車及車載電子產品 |
    產品規格
    品牌

    FREUDE

    型號編號

    FH-4 MINI

    產品簡介

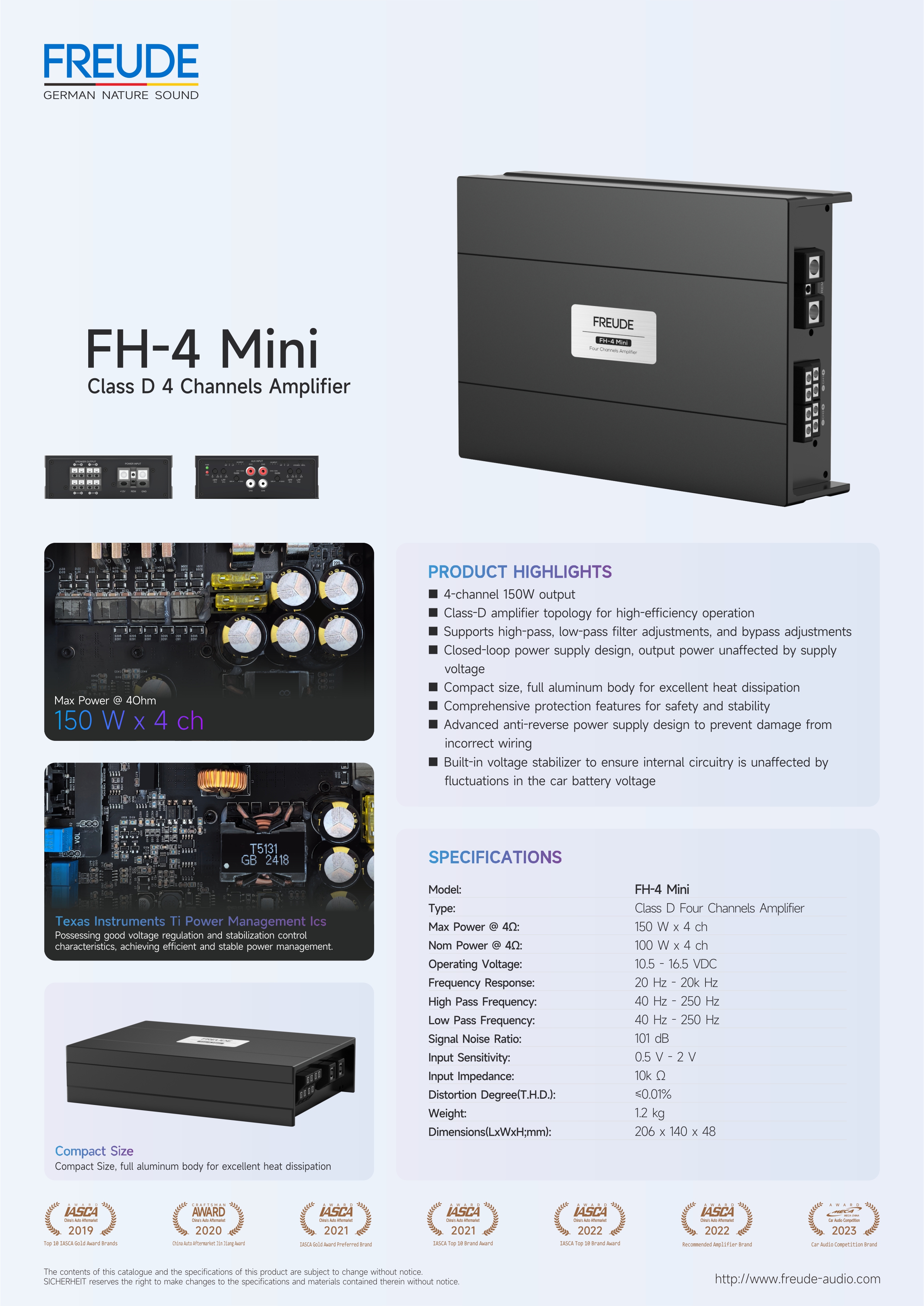

    FH-4 Mini

    Class D 4 Channels Amplifier

    ■ 4-channel 150W output
    ■ Class-D amplifier topology for high-efficiency operation
    ■ Supports high-pass, low-pass filter adjustments, and bypass adjustments
    ■ Closed-loop power supply design, output power unaffected by supply voltage
    ■ Compact size, full aluminum body for excellent heat dissipation
    ■ Comprehensive protection features for safety and stability
    ■ Advanced anti-reverse power supply design to prevent damage from incorrect wiring
    ■ Built-in voltage stabilizer to ensure internal circuitry is unaffected by fluctuations in the car battery voltage

    Model:    FH-4 Mini Type:    Class D Four Channels Amplifier Max Power @ 4Ω:    150 W x 4 ch Nom Power @ 4Ω:    100 W x 4 ch Operating Voltage:    8 - 18 VDC Frequency Response:    20 Hz - 20k Hz Low Pass Frequency:    40 Hz - 250 Hz High Pass Frequency:    40 Hz - 250 Hz Signal Noise Ratio:    101 dB Distortion Degree(T.H.D.):    ≤0.01% Input Sensitivity:    0.5 V - 2 V Input Impedance:    10k Ω Net Weight:    1.2 kg Dimensions (LxWxH;mm):    206 x 140 x 48Model:    FH-4 Mini Type:    Class D Four Channels Amplifier Max Power @ 4Ω:    150 W x 4 ch Nom Power @ 4Ω:    100 W x 4 ch Operating Voltage:    8 - 18 VDC Frequency Response:    20 Hz - 20k Hz Low Pass Frequency:    40 Hz - 250 Hz High Pass Frequency:    40 Hz - 250 Hz Signal Noise Ratio:    101 dB Distortion Degree(T.H.D.):    ≤0.01% Input Sensitivity:    0.5 V - 2 V Input Impedance:    10k Ω Net Weight:    1.2 kg Dimensions (LxWxH;mm):    206 x 140 x 48 Model:    FH-4 Mini Type:    Class D Four Channels Amplifier Max Power @ 4Ω:    150 W x 4 ch Nom Power @ 4Ω:    100 W x 4 ch Operating Voltage:    8 - 18 VDC Frequency Response:    20 Hz - 20k Hz Low Pass Frequency:    40 Hz - 250 Hz High Pass Frequency:    40 Hz - 250 Hz Signal Noise Ratio:    101 dB Distortion Degree(T.H.D.):    ≤0.01% Input Sensitivity:    0.5 V - 2 V Input Impedance:    10k Ω Net Weight:    1.2 kg Dimensions (LxWxH;mm):    206 x 140 x 48

    Model:FH-4 Mini
    Type:Class D Four Channels Amplifier
    Max Power @ 4Ω:150 W x 4 ch
    Nom Power @ 4Ω:100 W x 4 ch
    Operating Voltage:10.5 - 16.5 VDC
    Frequency Response:20 Hz - 20k Hz
    Low Pass Frequency:40 Hz - 250 Hz
    High Pass Frequency:40 Hz - 250 Hz
    Signal Noise Ratio:101 dB
    Distortion Degree(T.H.D.):≤0.01%
    Input Sensitivity:0.5 V - 2 V
    Input Impedance:10k Ω
    Net Weight:1.2 kg
    Dimensions (LxWxH;mm):206 x 140 x 48
