DSP Amplifier 6ch DSP with 4ch Amplifier-FP-6A V2
中國內地
展位編號: 3C-F15 | 汽車及車載電子產品 |
產品規格
型號編號
FP-6A V2
品牌
FREUDE
產品簡介

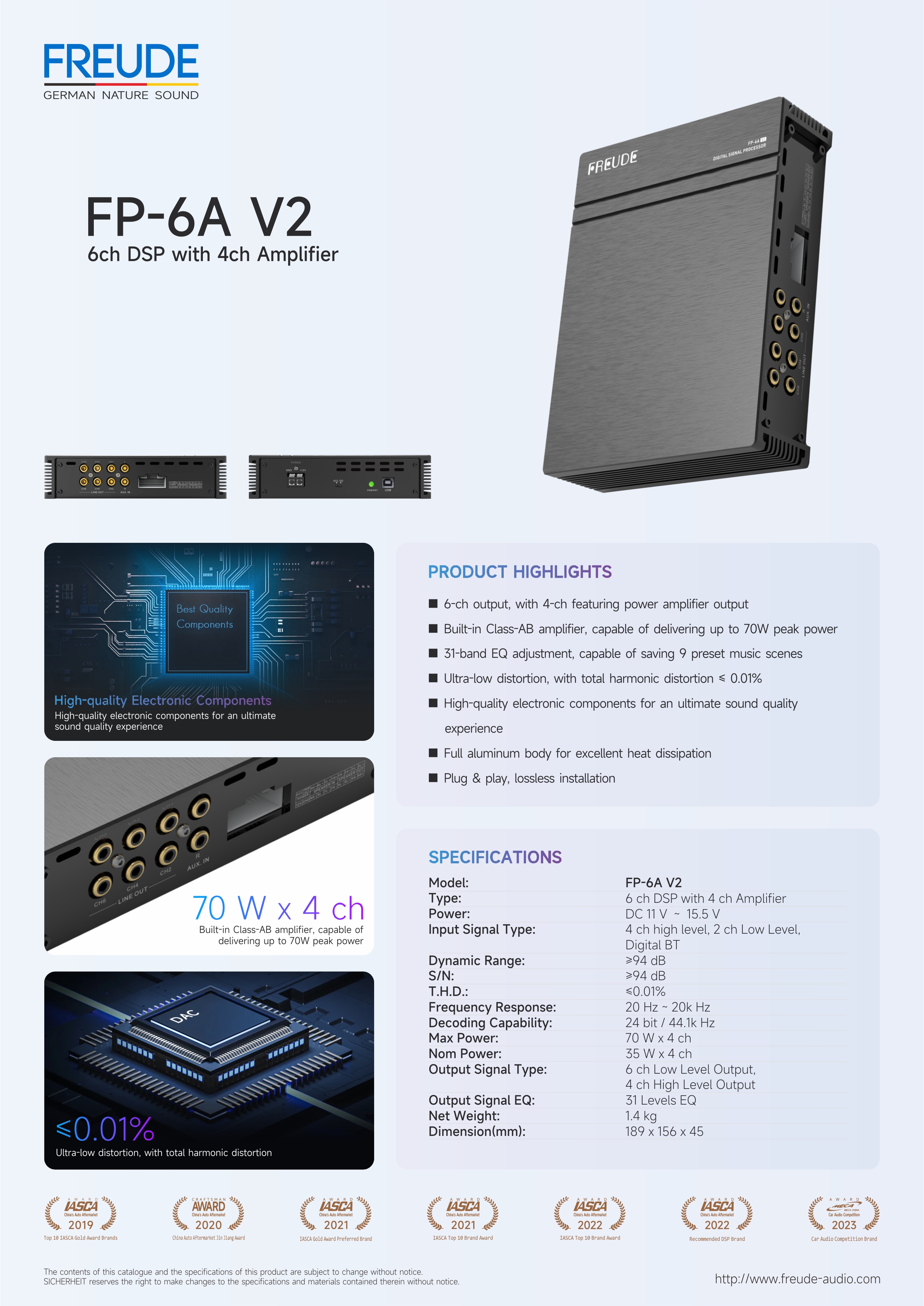

FP-6A V2
6ch DSP with 4ch Amplifier
■ 6-ch output, with 4-ch featuring power amplifier output
■ Built-in Class-AB amplifier, capable of delivering up to 70W peak power
■ 31-band EQ adjustment, capable of saving 9 preset music scenes
■ Ultra-low distortion, with total harmonic distortion ≤ 0.01%
■ High-quality electronic components for an ultimate sound quality experience
■ Full aluminum body for excellent heat dissipation
■ Plug & play, lossless installation
■ 6-ch output, with 4-ch featuring power amplifier output
■ Built-in Class-AB amplifier, capable of delivering up to 70W peak power
■ 31-band EQ adjustment, capable of saving 9 preset music scenes
■ Ultra-low distortion, with total harmonic distortion ≤ 0.01%
■ High-quality electronic components for an ultimate sound quality experience
■ Full aluminum body for excellent heat dissipation
■ Plug & play, lossless installation
| Model: | FP-6A V2 |
| Type: | 6 ch DSP with 4 ch Amplifier |
| Power: | DC 11 V ～ 15.5 V |
| Input Signal Type: | 4 ch high level, 2 ch Low Level, Digital BT |
| Dynamic Range: | ≥94 dB |
| S/N: | ≥94 dB |
| T.H.D.: | ≤0.01% |
| Frequency Response: | 20 Hz ~ 20k Hz |
| Decoding Capability: | 24 bit / 44.1k Hz |
| Max Power: | 70 W x 4 ch |
| Nom Power: | 35 W x 4 ch |
| Output Signal Type: | 6 ch Low Level Output, 4 ch High Level Output |
| Output Signal EQ: | 31 Levels EQ |
| Net Weight: | 1.4 kg |
| Dimension(LxWxH;mm): | 189 x 156 x 45 |
