DSP Amplifier 10 ch DSP with 12 ch Amplifier FP-12AD
中國內地
展位編號: 3C-F15 | 汽車及車載電子產品 |
產品規格
品牌
FREUDE
型號編號
FP-12AD
產品簡介

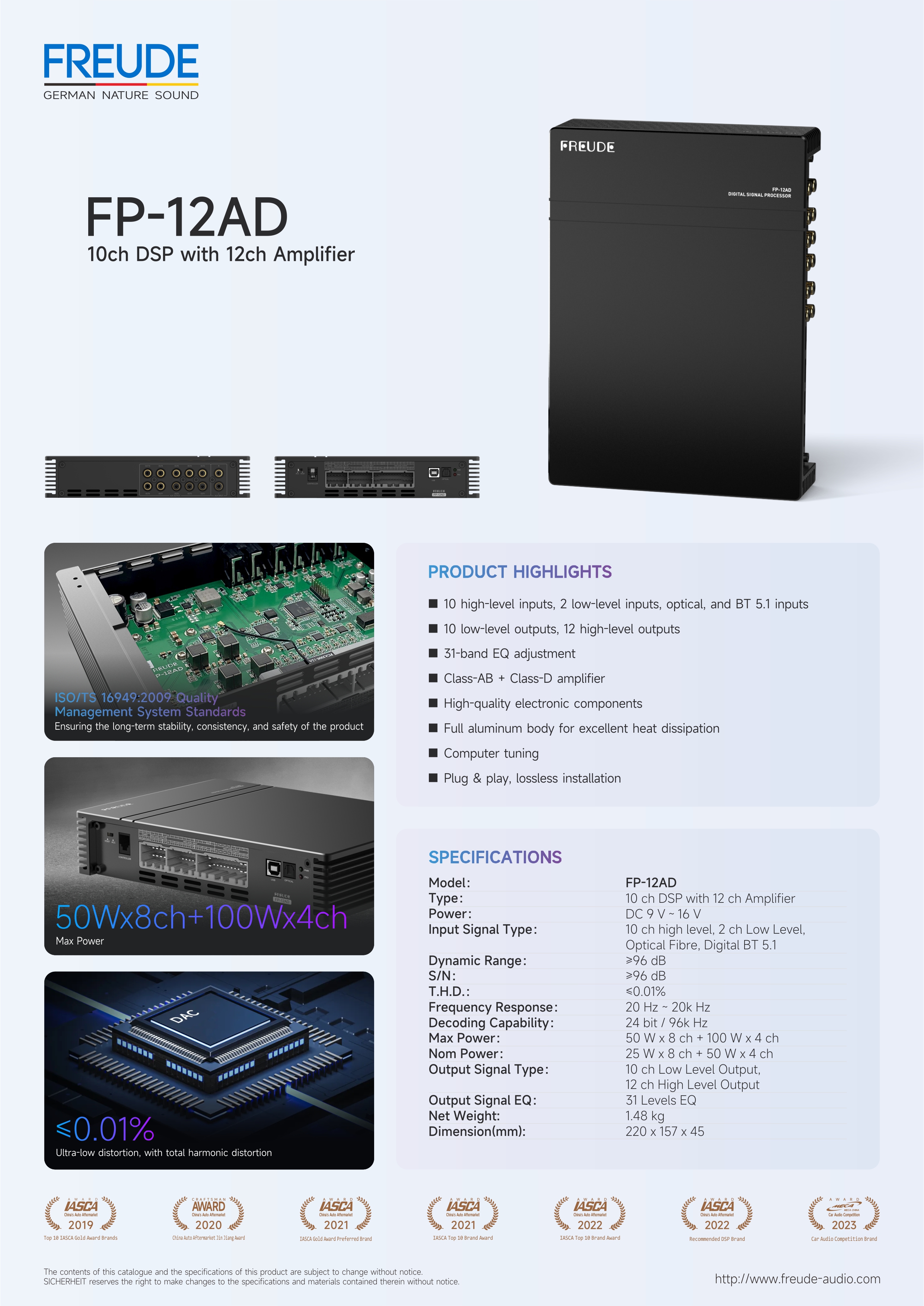

FP-12AD
10 ch DSP with 12 ch Amplifier
■ 10 high-level inputs, 2 low-level inputs, optical, and Bluetooth 5.1 inputs
■ 10 low-level outputs, 12 high-level outputs
■ 31-band EQ adjustment
■ Class-AB + Class-D amplifier
■ High-quality electronic components
■ Full aluminum body for excellent heat dissipation
■ Computer tuning
■ Plug & play, lossless installation
■ 10 high-level inputs, 2 low-level inputs, optical, and Bluetooth 5.1 inputs
■ 10 low-level outputs, 12 high-level outputs
■ 31-band EQ adjustment
■ Class-AB + Class-D amplifier
■ High-quality electronic components
■ Full aluminum body for excellent heat dissipation
■ Computer tuning
■ Plug & play, lossless installation
| Model: | FP-12AD |
| Type: | 10 ch DSP with 12 ch Amplifier |
| Power: | DC 9 V～16 V |
| Input Signal Type: | 10 ch high level, 2 ch Low Level, Optical Fibre, Digital BT 5.1 |
| Dynamic Range: | ≥96 dB |
| S/N: | ≥96 dB |
| T.H.D.: | ≤0.01% |
| Frequency Response: | 20 Hz ~ 20k Hz |
| Decoding Capability: | 24 bit / 96k Hz |
| Max Power: | 50 W x 8 ch + 100 W x 4 ch |
| Nom Power: | 25 W x 8 ch + 50 W x 4 ch |
| Output Signal Type: | 10 ch Low Level Output, 12 ch High Level Output |
| Output Signal EQ: | 31 Levels EQ |
| Net Weight: | 1.48 kg |
| Dimension(LxWxH;mm): | 220 x 157 x 45 |
