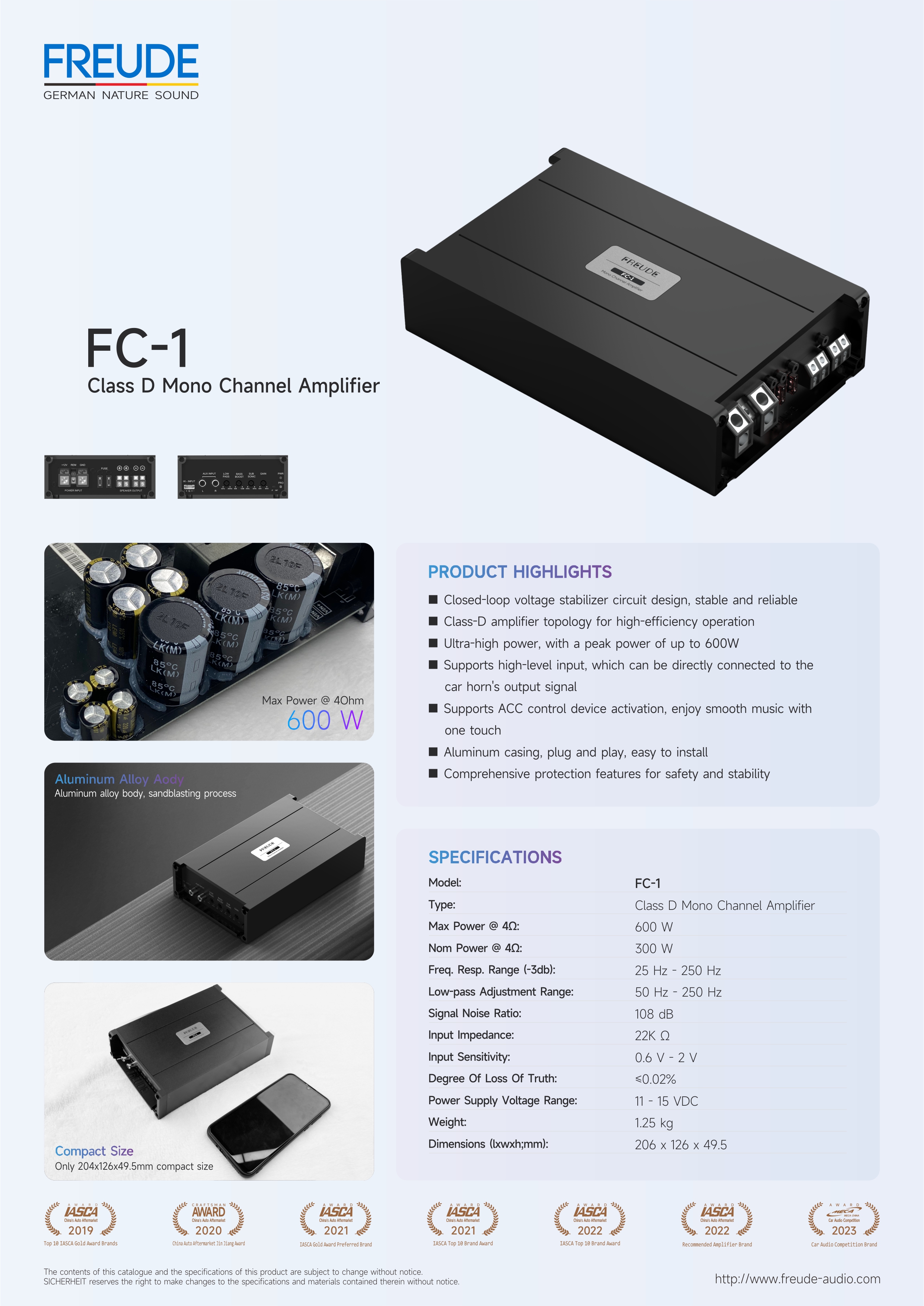

Car audio amplifier Class D Mono Channel Amplifier FC-1
中國內地
展位編號: 3C-F15 | 汽車及車載電子產品 |
產品規格
AMPLIFIER
Class D Mono Channel Amplifier
型號編號
FC-1
品牌
FREUDE
產品簡介
FC-1
Class D Mono Channel Amplifier
■ Closed-loop voltage stabilizer circuit design, stableand reliable
■ Class-D amplifier topology for high-efficiency operation
■ Ultra-high power, with a peak power of up to 600W
■ Supports high-level input, which can be directlyconnected to the car horn's output signal
■ Supports ACC control device activation, enjoy smoothmusic with one touch
■ Aluminum casing, plug and play, easy to install
■ Comprehensive protection features for safety and stability
■ Closed-loop voltage stabilizer circuit design, stableand reliable
■ Class-D amplifier topology for high-efficiency operation
■ Ultra-high power, with a peak power of up to 600W
■ Supports high-level input, which can be directlyconnected to the car horn's output signal
■ Supports ACC control device activation, enjoy smoothmusic with one touch
■ Aluminum casing, plug and play, easy to install
■ Comprehensive protection features for safety and stability
| Model: | FC-1 |
| Type: | Class D Mono Channels Amplifier |
| Max Power @ 4Ω: | 600 W |
| Nom Power @ 4Ω: | 300 W |
| Freq. Resp. Range (-3db): | 25 Hz - 250 Hz |
| Low-pass Adjustment Range: | 50 Hz - 250 Hz |
| Signal Noise Ratio: | 108 dB |
| Input Impedance: | 22K Ω |
| Input Sensitivity: | 0.6 V - 2 V |
| Degree Of Loss Of Truth: | ≤0.02% |
| Power Supply Voltage Range: | 11 - 15 VDC |
| Weight: | 1.25 kg |
| Dimensions (LxWxH;mm): | 206 x 126 x 49.5 |
