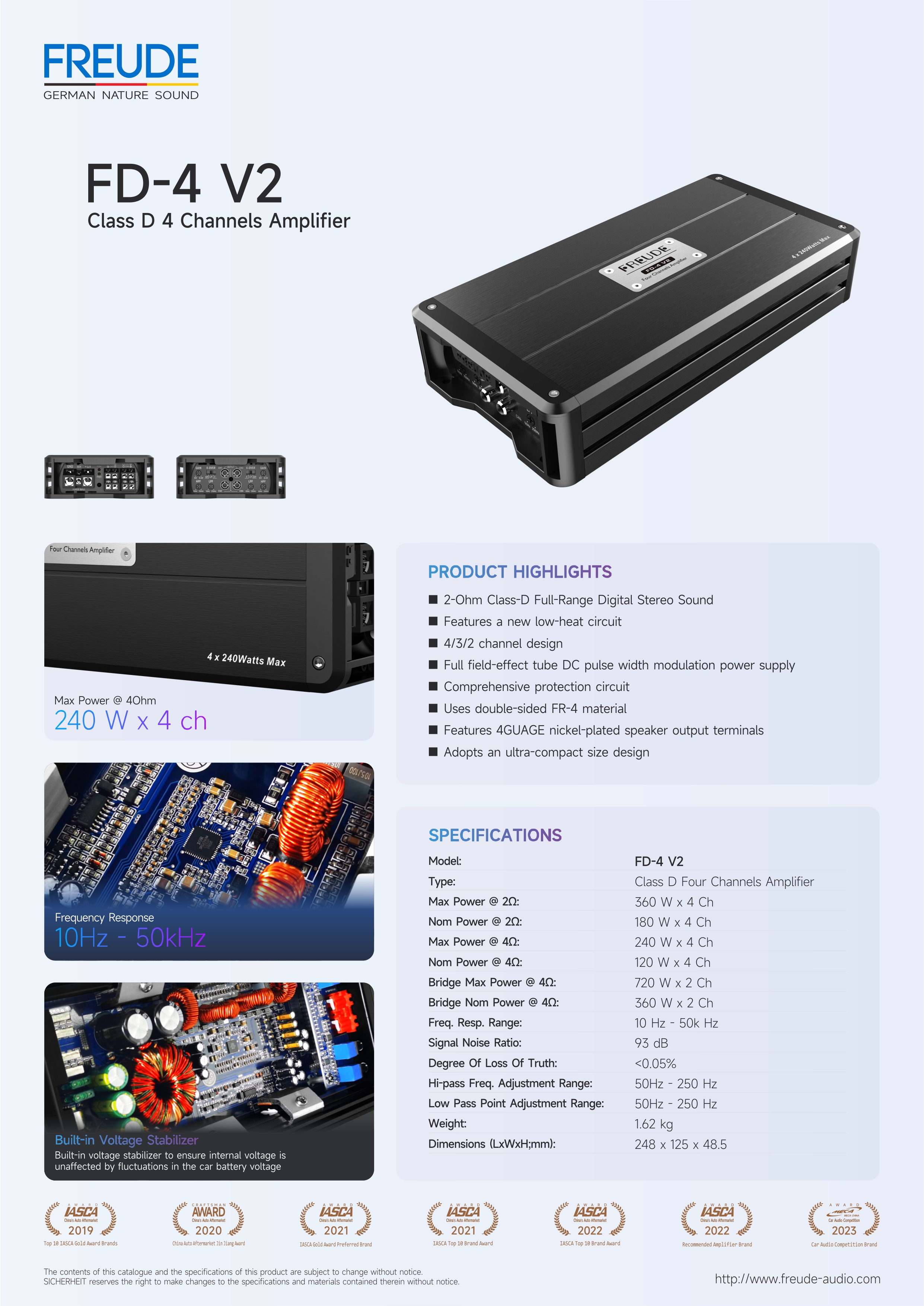

Car audio amplifier Class D Four Channels Amplifier FD-4 V2
中國內地
展位編號: 3C-F15 | 汽車及車載電子產品 |
產品規格
Amplifier
Class D Four Channels Amplifier
型號編號
FD-4 V2
品牌
FREUDE
產品簡介
FD-4 V2
Class D Four Channels Amplifier
■ 2-Ohm Class-D Full-Range Digital Stereo Sound
■ Features a new low-heat circuit
■ 4/3/2 channel design
■ Full field-effect tube DC pulse width modulation power supply
■ Comprehensive protection circuit
■ Uses double-sided FR-4 material
■ Features 4GUAGE nickel-plated speaker output terminals
■ Adopts an ultra-compact size design
■ 2-Ohm Class-D Full-Range Digital Stereo Sound
■ Features a new low-heat circuit
■ 4/3/2 channel design
■ Full field-effect tube DC pulse width modulation power supply
■ Comprehensive protection circuit
■ Uses double-sided FR-4 material
■ Features 4GUAGE nickel-plated speaker output terminals
■ Adopts an ultra-compact size design
| Model: | FD-4 V2 |
| Type: | Class D Four Channels Amplifier |
| Max Power @ 2Ω: | 360 W x 4 Ch |
| Nom Power @ 2Ω: | 180 W x 4 Ch |
| Max Power @ 4Ω: | 240 W x 4 Ch |
| Nom Power @ 4Ω: | 120 W x 4 Ch |
| Bridge Max Power @ 4Ω: | 720 W x 2 Ch |
| Bridge Nom Power @ 4Ω: | 360 W x 2 Ch |
| Freq. Resp. Range (-3db): | 10 Hz - 50k Hz |
| Hi-pass Freq. Adjustment Range: | 50Hz - 250 Hz |
| Low-pass Adjustment Range: | 50Hz - 250 Hz |
| Signal Noise Ratio: | 93 dB |
| Degree Of Loss Of Truth: | <0.05% |
| Weight: | 1.62 kg |
| Dimensions (LxWxH;mm): | 248 x 125 x 48.5 |
