產品規格
品牌
STONKAM
Waterproof rating
IP69K
Video output
1-CH 1080P AHD/VGA/CVBS(D1)/RTSP
Storage temperature
-40℃ ~ 85℃
Storage
Max. 1×512G SD card+1×2T SSD card
型號編號
BVA18P
Power supply
10-32V
Operating temperature
-20℃ ~ 70℃
Video input
Max.6CH×1080P AHD (25/30)FPS
是否可訂造
可以
產品簡介
The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only 6 calibration mats are needed, and they can be placed randomly to achieve accurate calibration.
Why do you need 6CH Waterproof 360 surround view system? |
How can large vehicles ensure compliance with international and regional safety regulations on the road?How can long vehicles drivers enhance their awareness in complex road conditions and environments?How can a single system provide comprehensive warnings during vehicle operation?How can calibration be completed quickly to save costs?How can remote vehicle management be achieved to improve management efficiency? |

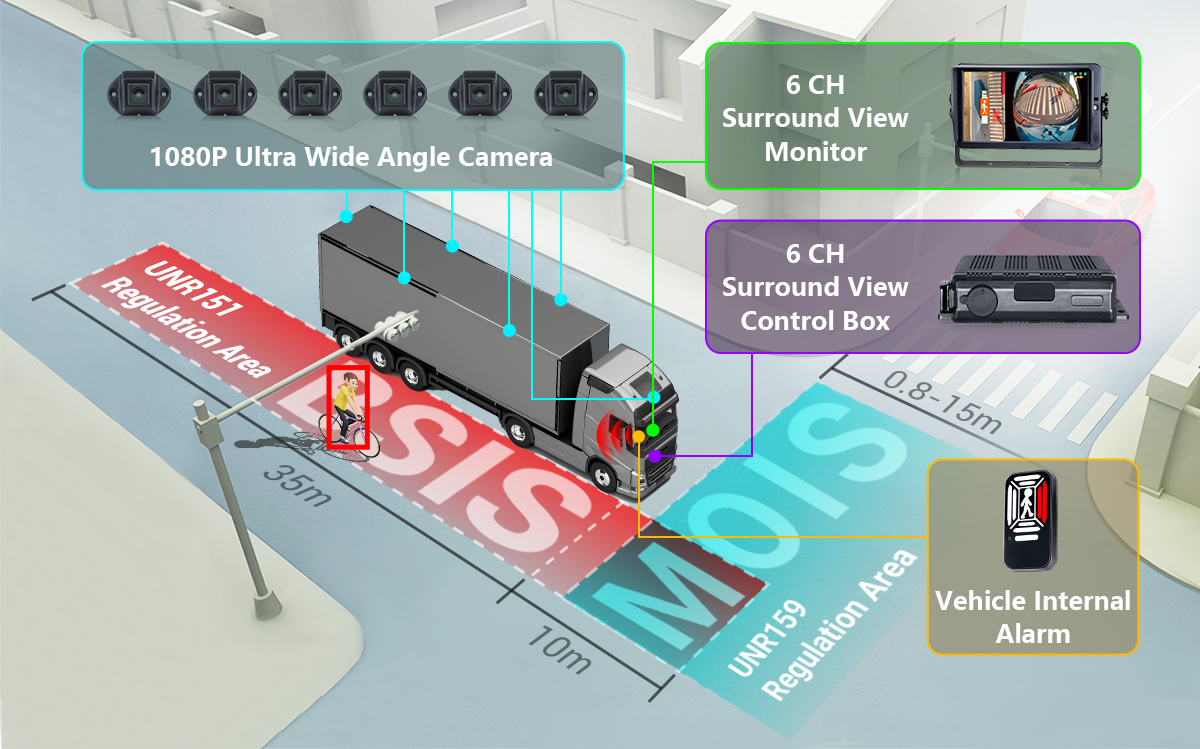

Compliant with UN ECE R151+R159, R158 regulations, eliminate lateral, anterior and rear blindness

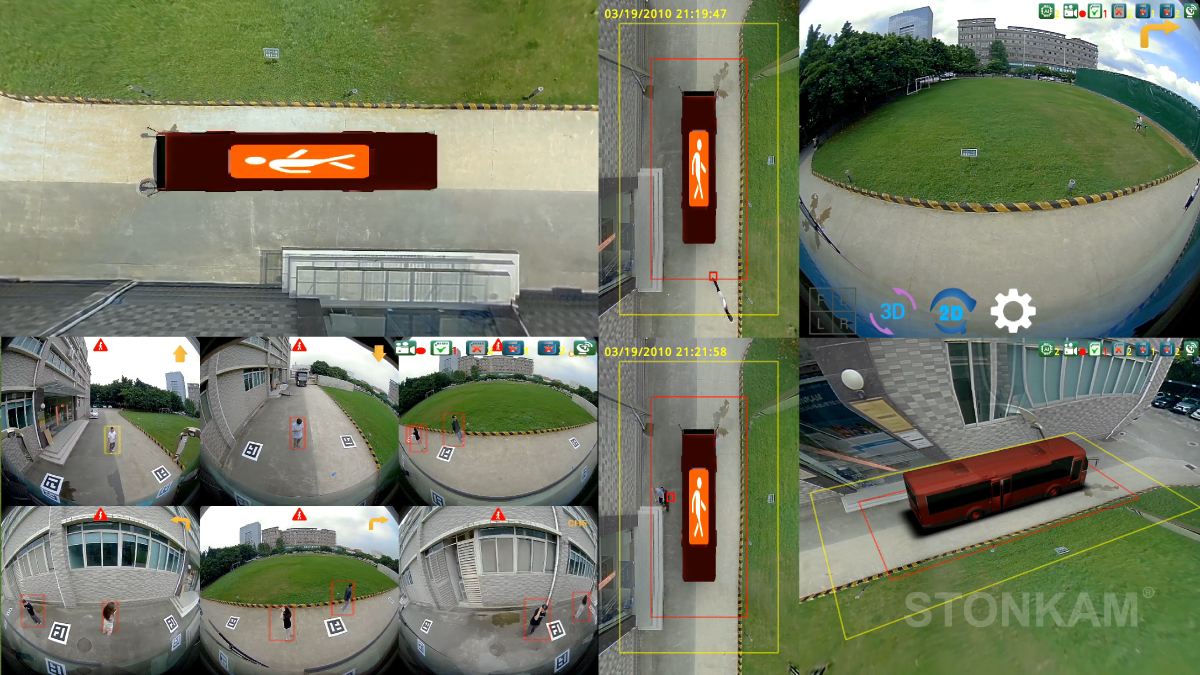

6CH 1080P image, 360° seamless splicing

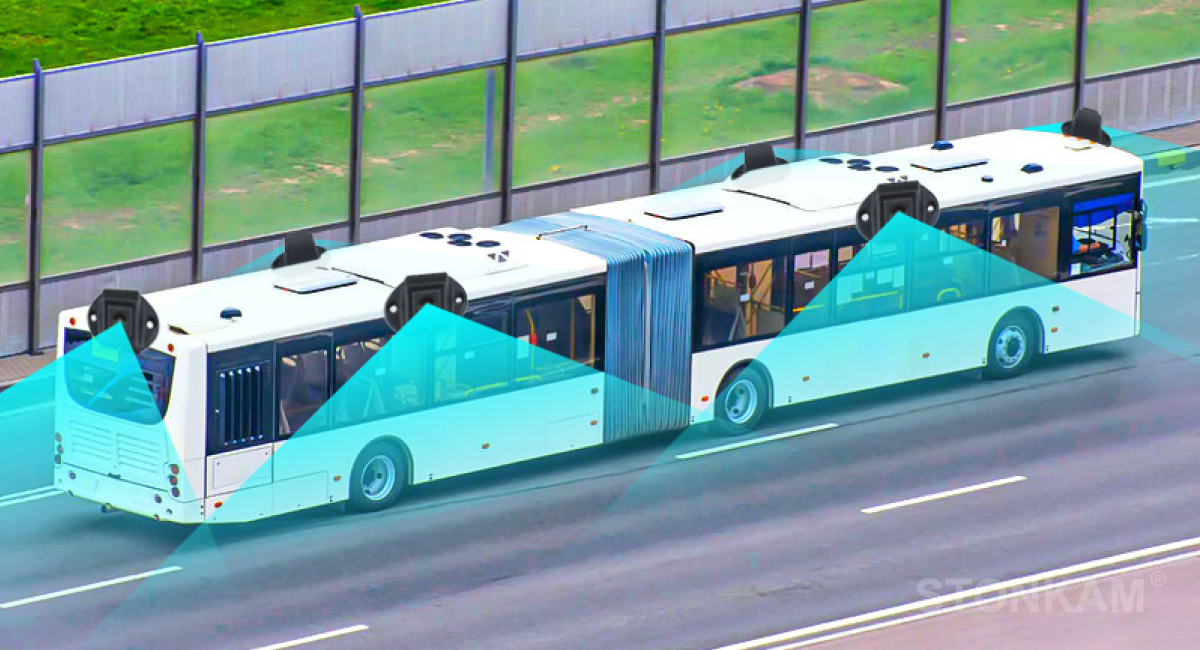

Specially designed for articulated buses, cranes, long trailers, container trucks, fire fighting trucks and other super long vehicles, 6CH ultra-wide angle HD cameras are spliced seamlessly to achieve real 360° panoramic bird view and zero blind spot monitoring, assisting in safe driving. Meanwhile, it also supports 360 surround view with 4 channels and other applications with 2 channels. In addition, expanding more camera inputs is feasible through Network Switch, meeting the monitoring demands of all kinds of vehicles.

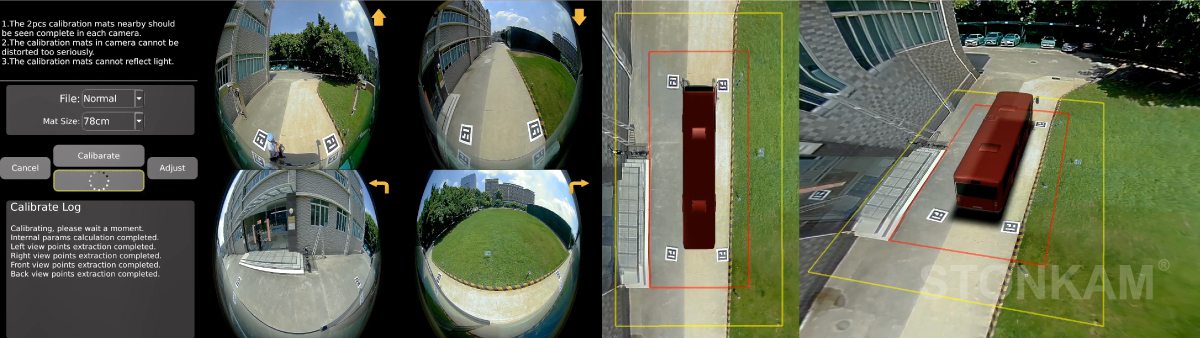

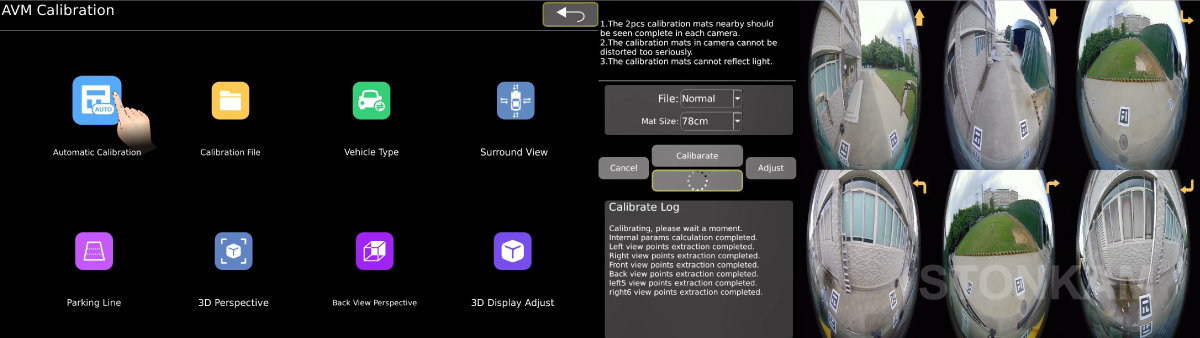

One-minute calibration
The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only 6 calibration mats are needed, and they can be placed randomly to achieve accurate calibration.
Calibration of 6 channel surround view system
Calibration of 4 channel surround view system
Dual AI Cores for Independent Processing, 2TOPS Computing Power
The control box supports dual AI cores for independent processing, achieving 2TOPS of AI computing power. This enables efficient execution of complex deep learning tasks and real-time image processing. It provides real-time analysis of complex road conditions and intelligent prediction of potential risks, ensuring comprehensive safety.

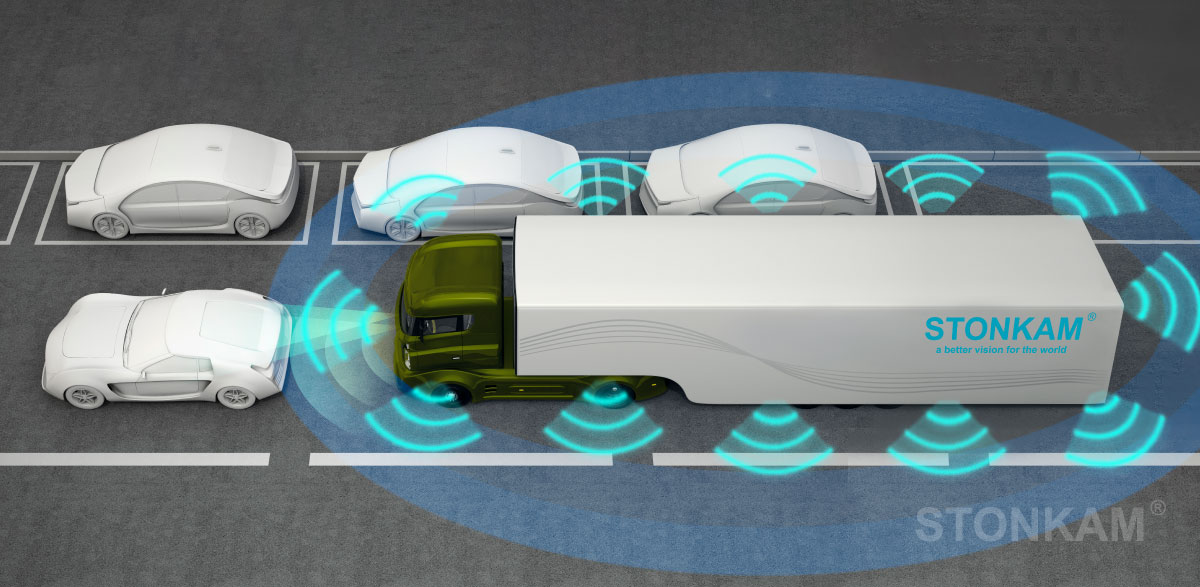

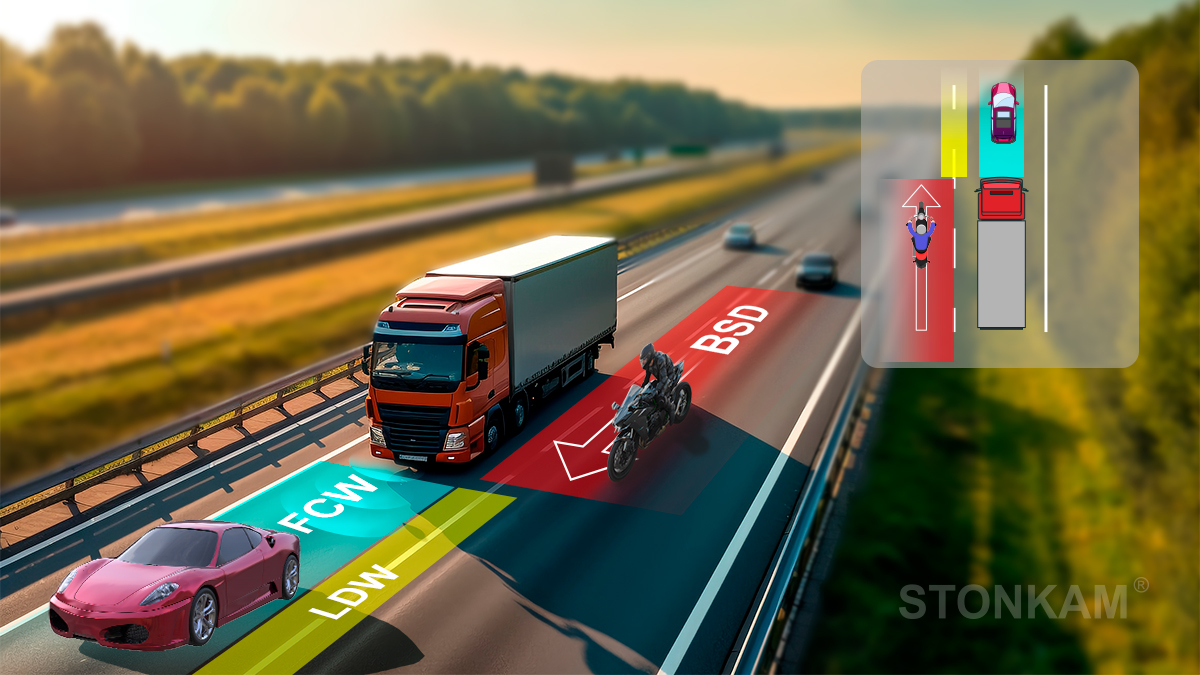

Built-in AI algorithm, integrating LDW+FCW+ BSD full area detection
Built-in AI algorithm, integrated with LDW+FCW+both sides BSD 360 degree detection, is able to detect lane departure, forward collision and overtaking/merging around the vehicle, and then to give an alarm.

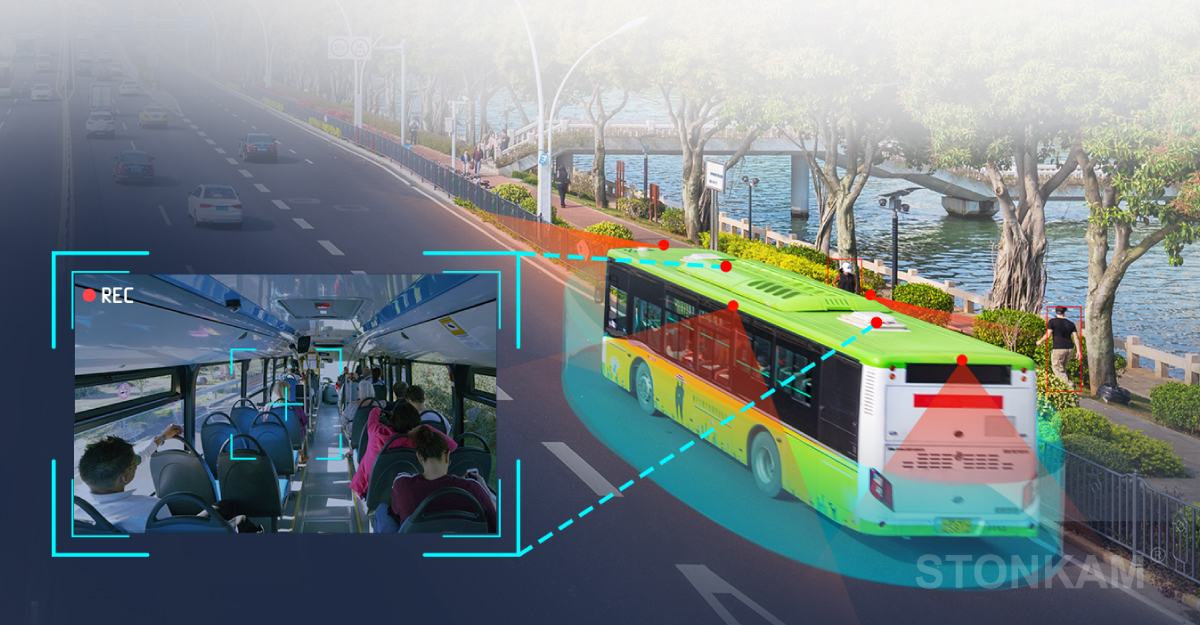

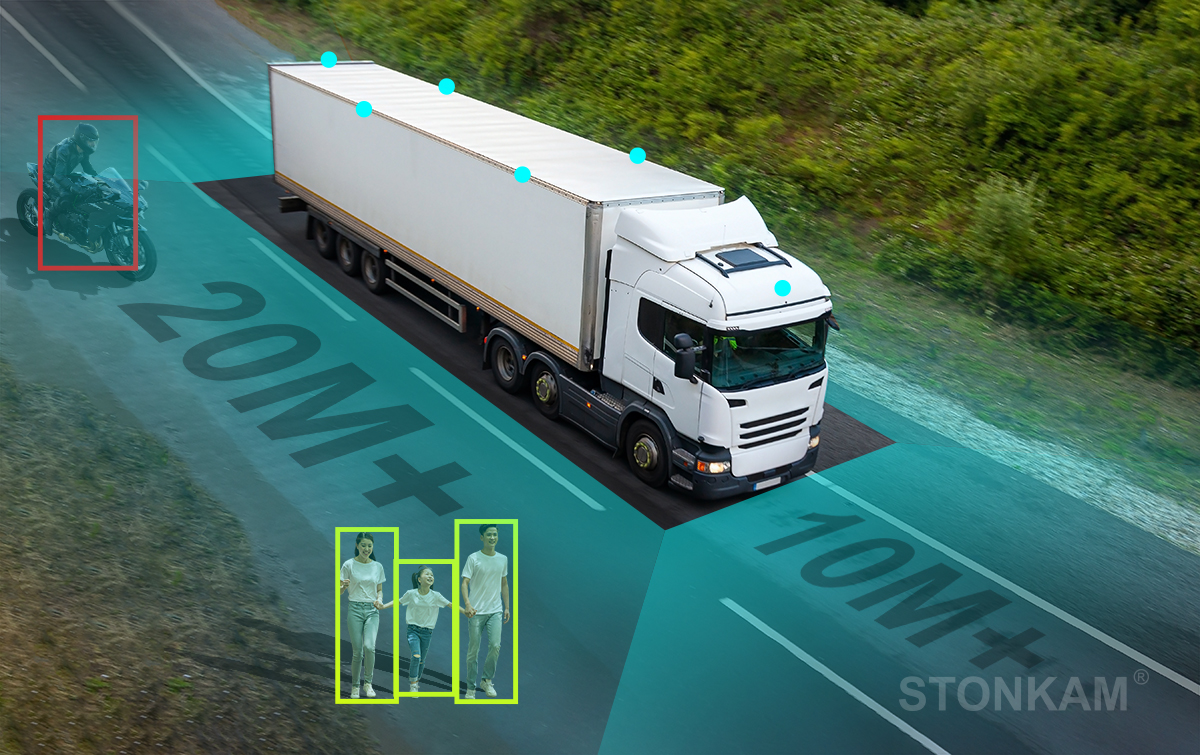

AI-based pedestrian detection, all-around vehicle surround monitoring.
The control box is equipped with built-in processing capabilities, delivering more precise pedestrian detection. Each camera channel can cover a detection range of over 10 meters, providing comprehensive coverage with no blind spots.
Supports DMS algorithm, capable of monitoring driver fatigue.
Monitors driver fatigue and issues auditory and visual alarm.
