SMD Seam Sealing Crystals 2.5x2.0x0.55mm S22 Series
Extremely small SMD type crystal units
High precision and high frequency stability
Extremely good for reducing EMI effect
The best choice of Bluetooth , Wi-Fi and other short range wireless communication
RoHS Compliant / Pb Free
Crystals specifications
ITEMS/TYPE | S22 |
Frequency Range | 12~54MHz |
Load Capacitance | 8pF, 10pF, 12pF, or specify |
Frequency Tolerance (at 25°C) | ±10ppm, ±20ppm, or specify |
Frequency Stability Over Operating Temperature Range | ±10ppm, ±20ppm, or specify |
Operating Temperature Range | -40~+85°C, or specify |
Shunt Capacitance (C0) | 3pF Max. |
Drive Level | 1~200μW (100μW typical) |
Aging (at 25°C) | ±3ppm/year Max. |
Storage Temperature Range | -40~+125°C |

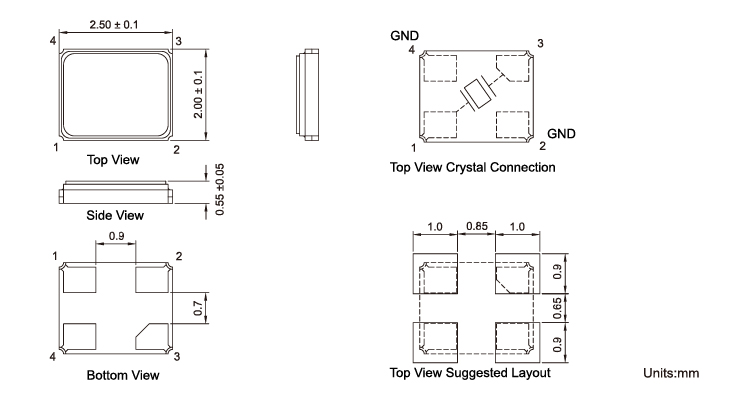

Dimensions and patterns(unit:mm)
