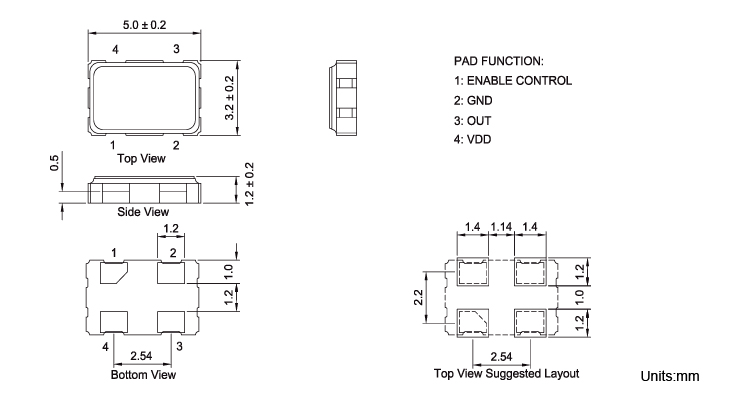

Dimensions and patterns(unit:mm)
可以
O53
±20ppm or specif
JGHC晶光华
1.8-5.0V or specif
5.0x3.2x1.2mm
1-170MHz
SMD Crystal Oscillators CMOS Output 5.0 x 3.2 x 1.2 mm O53 Series
Features
Small SMD seam sealed clock crystal oscillator units.
High precision characteristic covering up to wide frequency range.
Designed for automatic mounting and reflow soldering.
Tri-State function available.
Supply voltage range : 1.8V ~ 5V.
High stability, low jitter, low power consumption.
Main application : wireless communication, PC, and LCDM.
RoHS Compliant / Pb Free.
Crystals specifications
ITEMS/TYPE | O53 |
Frequency Range | 1~170MHz |
Output Type | CMOS |
Output Load | 15pF, 30pF, or specify |
Oscillation Mode | Fundamental / 3rd Overtone |
Supply Voltage | 1.8V~5.0V, or specify |
Frequency Stability | ± 20 ppm , or specify |
Operating Temperature Range | -40~+85 ℃ , or specify |
Storage Temperature Range | -55~+125 ℃ |
Voltage Vol ( Max. )/Voltage Voh ( Min. ) | VOH=90%Vdd / VOL+10%Vdd |
Rise ( Tr ) / Fall ( Tf ) Time | 8ns Max. |
Current Consumption | 20mA Max. |
Symmetry | 45~55% |
Start-up Time | 5ms Max. |
Phase Jitter( 12KHz~20MHz ) | 1ps Max. |
Aging ( at 25℃) | ± 3 ppm / year Max. |
