Surface mounted power track socket, 86mm width | 消费电子产品 | 零件、电子电器用品 | 电线和附件
Surface mounted power track socket, 86mm width
中国内地
展位编号: 3F-E36 | 电子配件 |
产品规格
OEM adapter

casing material, casing shape, color, plug-in socket standard and other more items can be exclusive customized.

是否可订造

可以

OEM power track

mounted method, width, length, color, surface treatment and other more items canbe exclusive customized.

Material

6065 aeros[ace Aluminum track, PC adapter or Zinc alloy adapter

品牌

DS-ITCS, OEM order is available

Feature

8000W 32A max

应用

in all sectors of retail, residential, commercial and industrial.

产品简介

■Products highlights:

1.Movable power track sockets, can be divided into two parts-track modular & adapter modular.

2.Track modular: with an extra quick connect for easy installation,6065 aerospace aluminum shell, surface treatment powder coating or anodic oxidation,track length and color is customized,

3.Adapter modular: a variety of electrical standard adapters available, including plug-in adapters and USB fast charging adapter. Adapters can be freely added, moved, removed and repositioned along the track.

4.Usually one track can be equipped with 5-6 adapters, plug-in adapter or USB adapter flexibly matched.



■Product features:

Every track can be equipped with several adapters.

The adapters can be freely added, removed or repositioned as per need.

Multiple electrical devices can be used simultaneously without waiting.

Higher efficiency and greater convenience.


■product parameters

Product name

2.0 power track socket,

86mm width,surface mounted

Manufacture

Deysen

Brand name

DS-ITCS

Origin

Zhejiang China

Application

Retail, residential, commercial and industrial.

Importance

Use Deysen power track only with Deysen adapters, don’t use with any other brand.

■Track modular:86 simple track, surface mounted

Mounted method

surface mounted

(can be installed on wall or desktop)

Length

400/500/600/800/1000mm

Width

86mm

Height

18.5mm

Final height with adapters

43mm

Ratings

32A 250V

Rated power

8000W max

Color

White/Grey/Black

Temperature

-20℃-55℃

IP grade

IP20

Housing Material

6065 aerospace Aluminum

Insulation Layer material

PC

Earth connected material

Phosphor bronze/brass/Stainless Steel

L&N connected material

Brass

Housing treatment

Powder coating

Anodic oxidation

Track packaged

9pcs/ctn

■Adapter modular,international standard adapters

Case

PC/Zinc alloy

Color

White/Grey/Black

Shape

Round/square

Size

Φ60.5×27.4mm (round)

58×58×27.4mm (square)

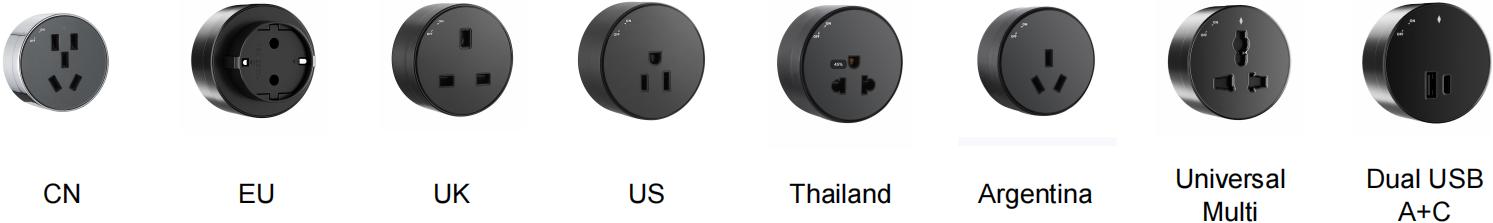

Adapters available

China GB

US

EU(Shuko)

UK

Argentina

Thailand

Universal multi

Dual USB A+C

Adapters equipped

Every track can accommodate different adapter qty according to its length, add, move or remove adapters as per you need.

Usage

Rotate clockwise 90°to power on, rotate counter clockwise  90° to power off.it can slide parallel along the track when the power is off.

Adapter Packaged

100pcs/ctn.


■Deysen can offer below more adapter models for OEM selection.




■Why Deysen power track socket?

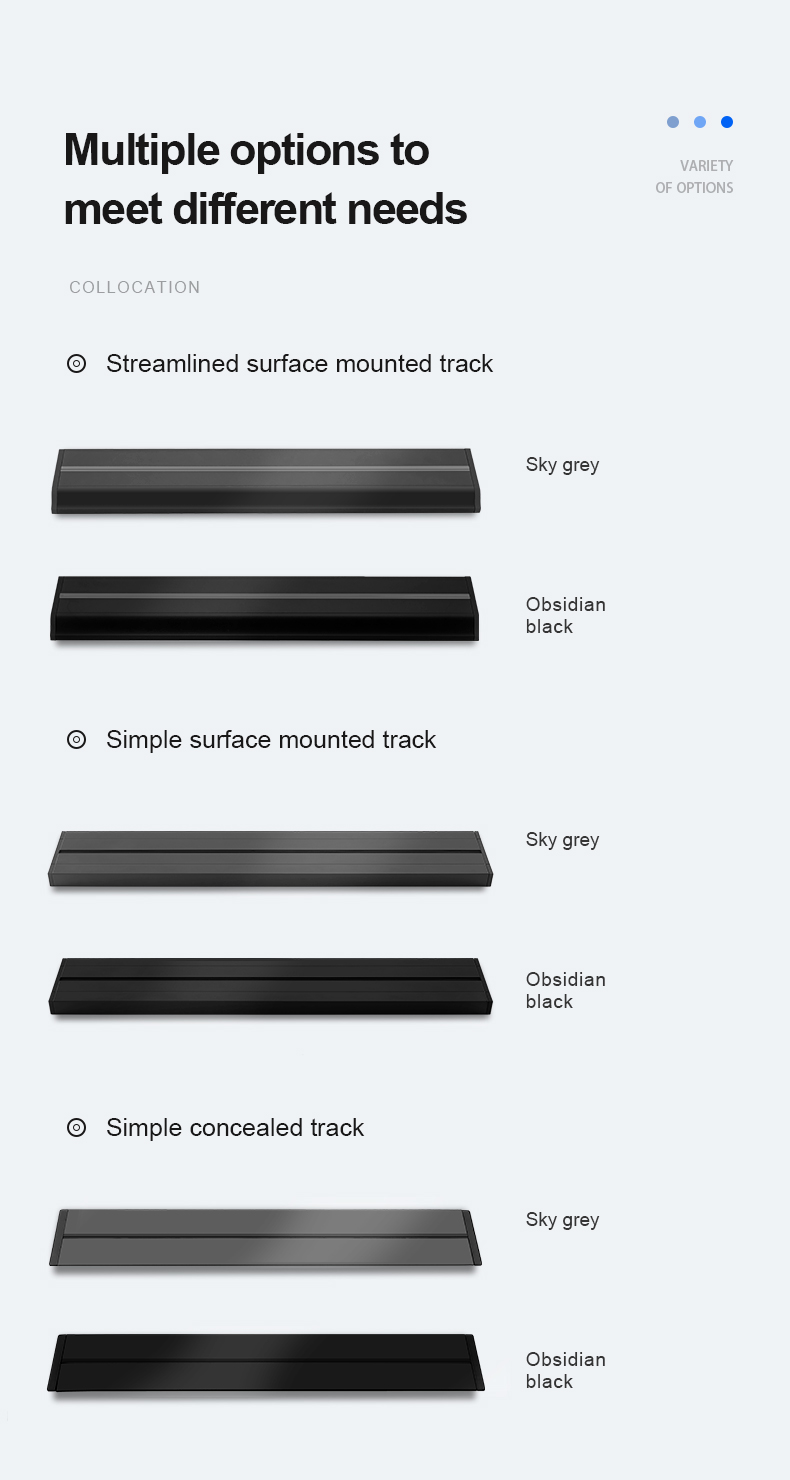

                                                                                    1.a variety of power track styles for options.

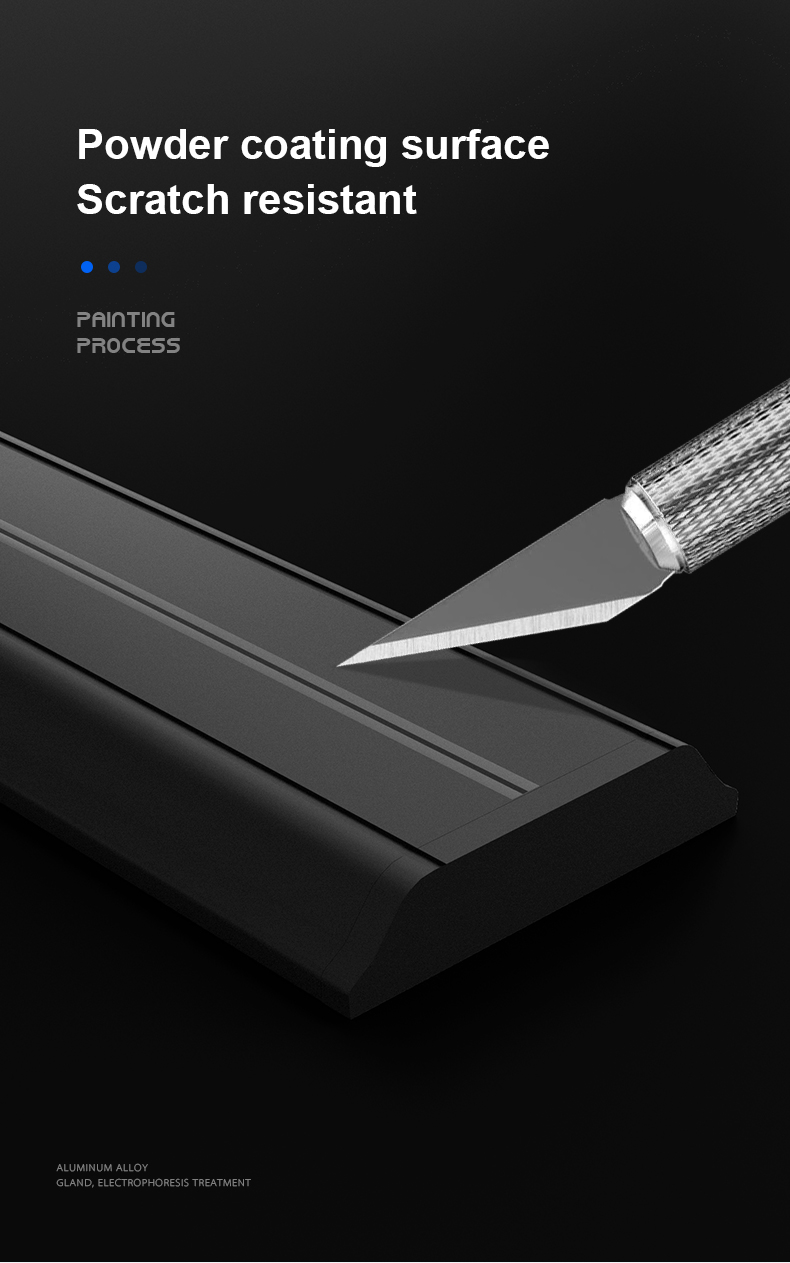

                                                  2.track surface treatment: powder coating,scratch resistant, easily clean.

                                                                       3.The adapters with a friendly indicator light during use.

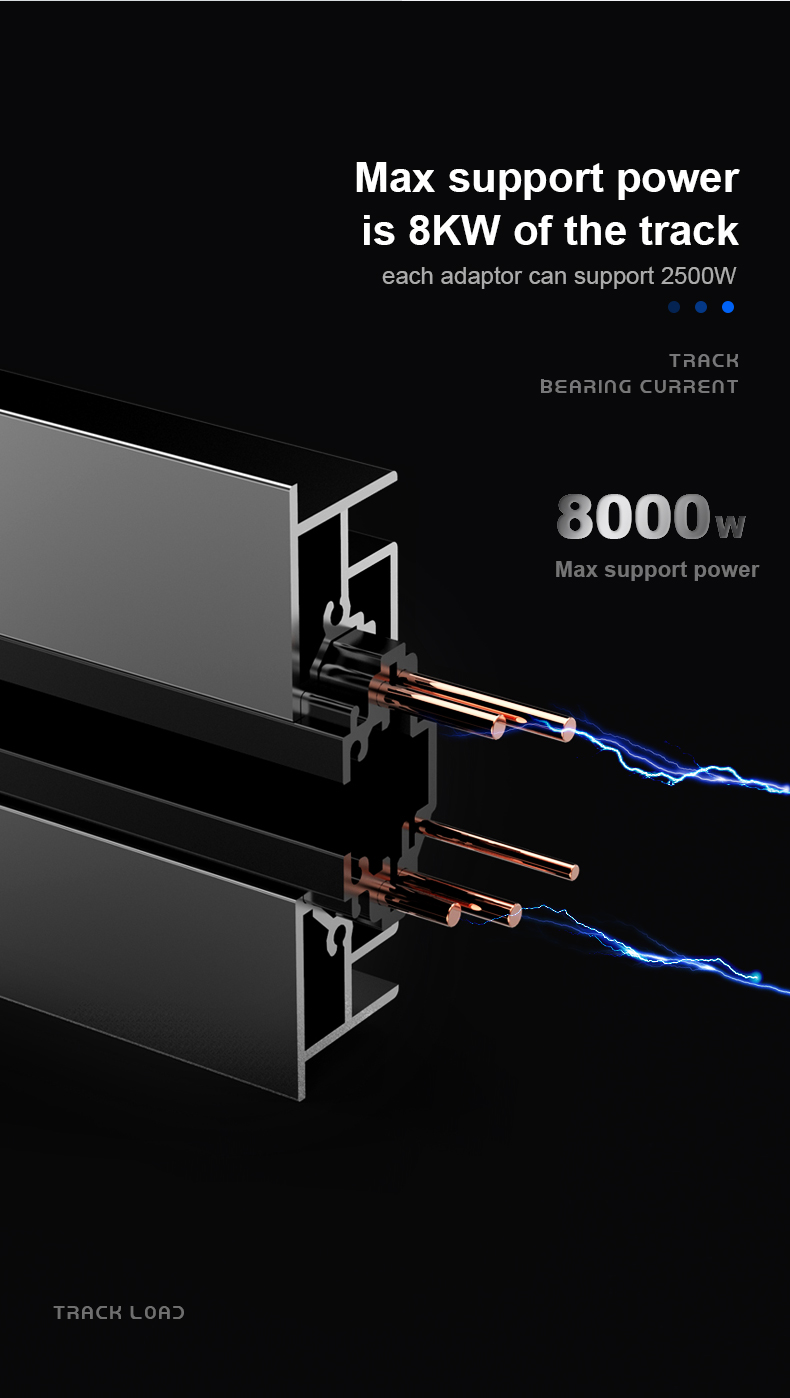

                                                                                           4.Support max 8000W & 32A loading,

                                                                                                               5.Safety protect


■Contacts: Mr.Michael Li, Mobile:0086-15814118851,

生产所需时间

30-40
