New Arrival SD0101 Stylus Pen Digital Pen for Microsoft Surface and Other Branding
香港
展位編號: 1C-S001 | 香港貿發局買家服務中心 - 「貿發網」產品陳列專區 |
產品規格
Application

MPP protocol version 2.0

是否可訂造

可以

尺寸

Pen D=9mm L=160mm, Tip D=1.72mm L=16.55mm

重量

13.9g

Battery

130mAh

Charging Time

1.5Hours

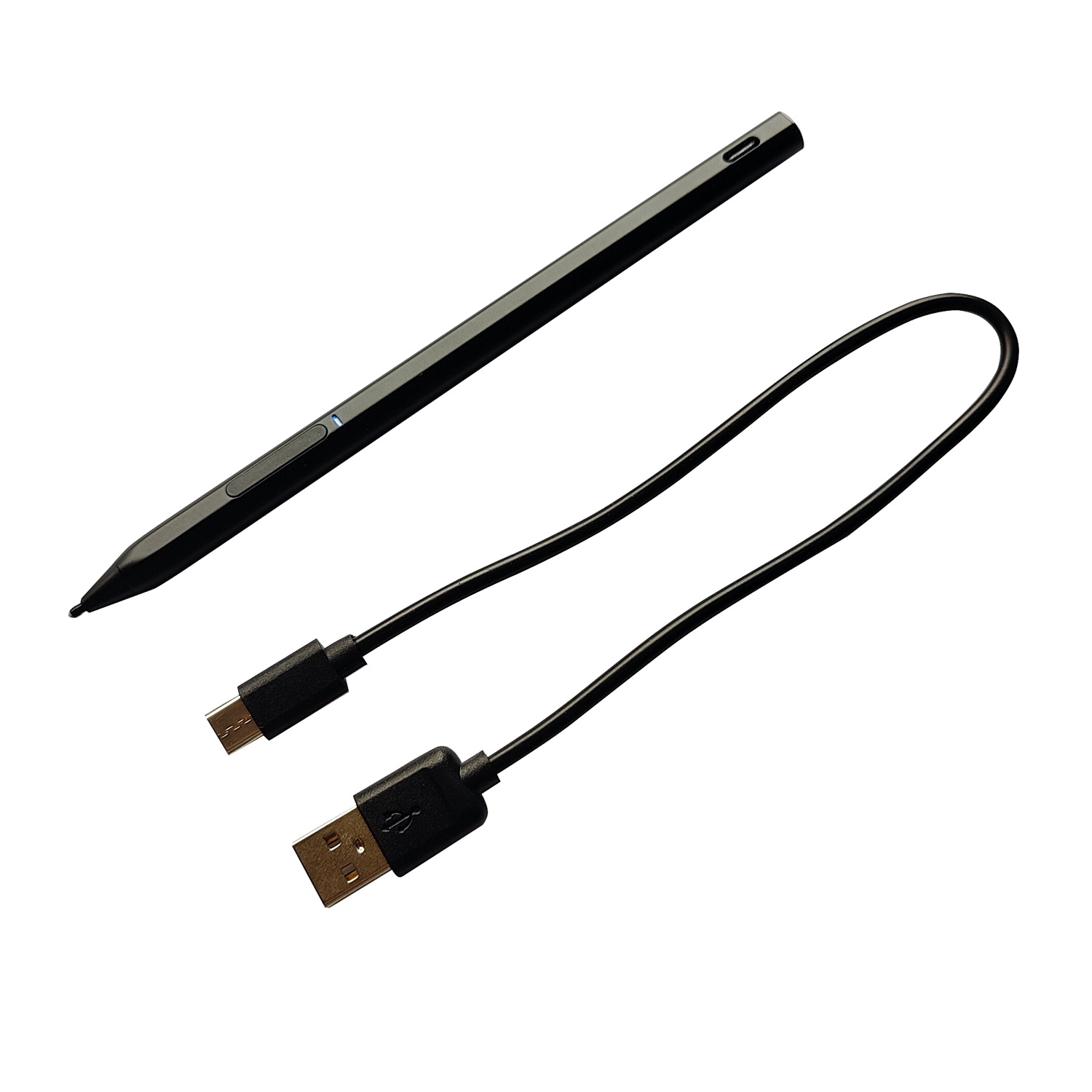

Charging Interface

Type C

Pen Type

Active Capacitive Pen

型號編號

SD0101

Pressure Level

4096

品牌

OEM

產品簡介

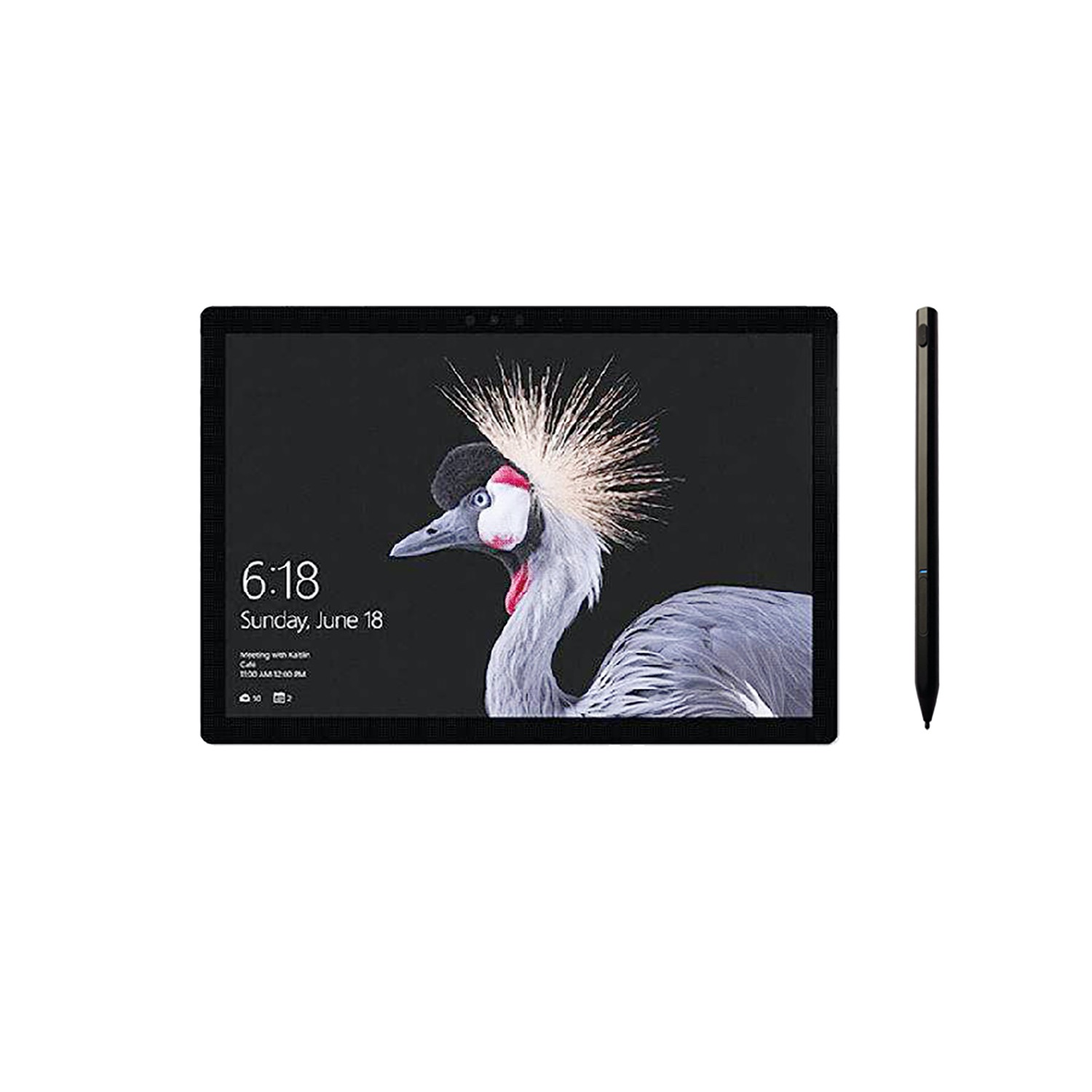

SD0101 Stylus Pen Digital Pen for Microsoft Surface and Other Branding,


  • Applicable to Active C-Pen designed for MPP protocol version 2.0 incl. Microsoft Surface, Asus, Acer, Dell, Sony and HP.
  • 4096 levels of Force
  • High Position accuracy
  • Commercial TEMP range

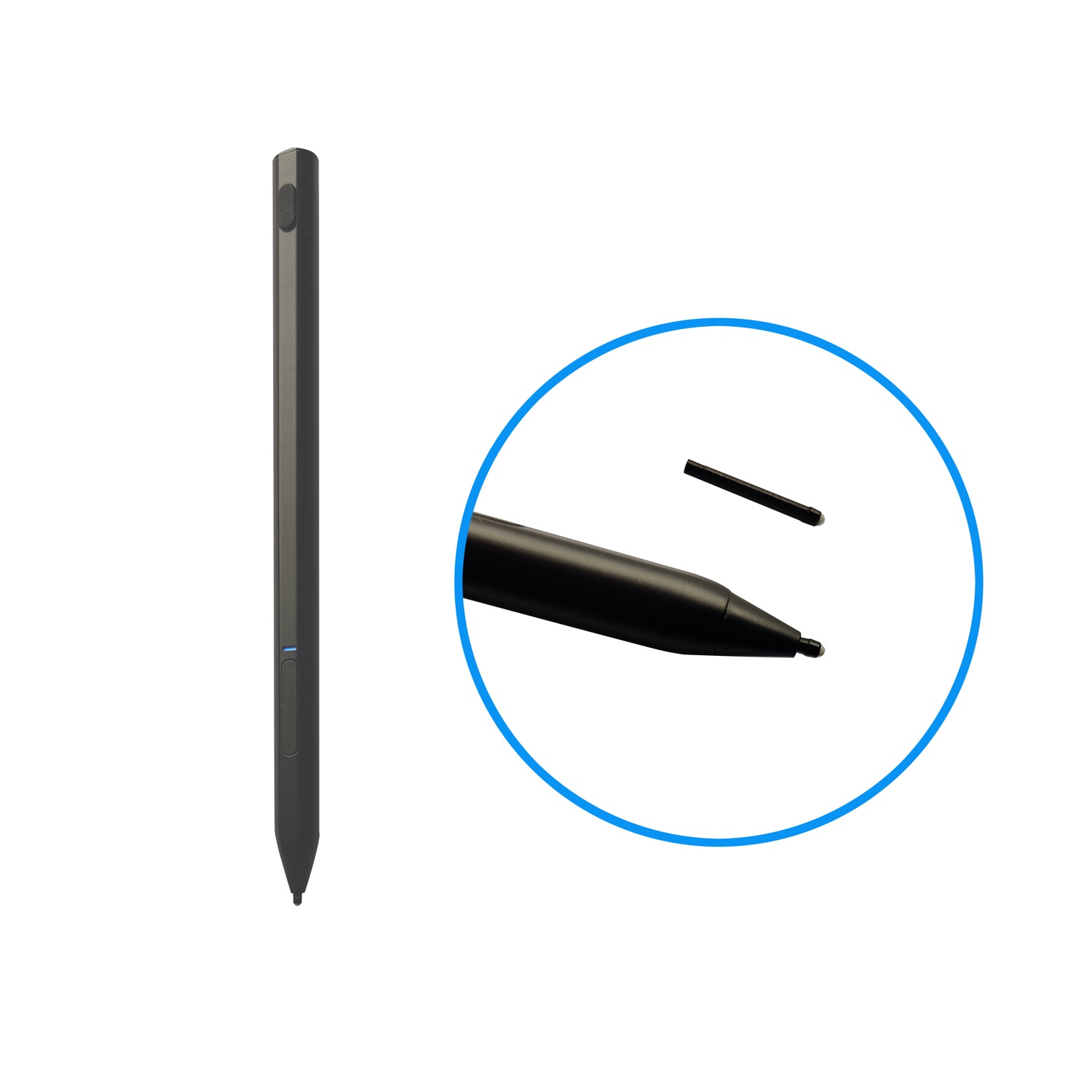

  • Replaceable tip technology
  • General Spec


Parameter

Specifications

Unit



Physical property

Pen Size(L/Φ)

160.0/9±1.00

mm


Tip Size(Φ)

Φ1.72x16.55±0.3

mm


Color

/

-


Weight

13.9±0.5

g


















Electrical property


Technology

Active-Capacitance


-


Pressure Levels



4096


-


Pen Tip Min. Pressure


≤0.15


N


Pen Tip Max. Pressure


≥2.5&≤5


N


Hovering Height



≤2


mm


Contact Accuracy


≤±0.5

≤±1


mm


Hover Accuracy



≤±1


mm


Moving Latency



≤25


ms


Down

Latency<Active>



≤35


ms


Down Latency<Idle>


≤2


s


Stationary Jitter

≤±0.3

mm








≤±0.5



Hover Stationary Jitter


≤±0.5


mm


Moving Jitter


≤±0.4

≤±0.6


mm


Report Rate



≥133


Hz


Programmable

Switches



2



-


Charging time

1.5

Hour


Battery

130

mAh


  • Software Spec

1. Status: running mode, deep sleep mode (enter after 30 minutes without any operation), low power shutdown mode

Low battery warning mode

1) Running mode: the blue light is on, the pen can write normally

2) Sleep mode: The pen cannot write, it can be woken up by charging the external power supply and pressing the up and down keys

3) Low-power shutdown mode: the pen cannot write, enter after the battery voltage is lower than a certain value, all lights are off, the button cannot wake up, only charging can wake up normally.

4) Low battery warning mode: The pen can write normally, but the red light will be always on, and it will not go to sleep after 30 minutes without any operation, and the charging will jump to the charging state. Further power loss such as no charging will trigger a low power

Off state.

2. Charging status (the pen can write normally):

1) When charging: The red light works in the form of a breathing light, and neither the blue light nor the green light is on.

2) When fully charged: The green light is on, and the other lights are off, and it will enter deep sleep mode after the external power supply is unplugged.

3. Button state: the upper button is the mouse frame selection function, and the lower button is the eraser function.

4. The status of the lights (three lights will only light one at the same time):

Green light: The stylus is fully charged and the external power source is not unplugged

Blue light: the stylus is writing

Red light: The breathing light indicates that the pen is in a charging state, and the indicator is always on in a low-battery warning state.

All lights off: the stylus is dormant or the battery is too low.


  • In the non-working state, the pen tip should not be stressed for a long time.
