12°/24°/30°/40°/60°/Oval lens 10*30°/15*40°
36 Watts
Anodizing CNC Aluminum 6063 Housing
LWW-3601-3600-BH
. 36 PCS 1W LED with high lumen and beautiful light output.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.12°/24°/30°/40°/60°/Oval lens 10*30°/15*40° beam angle as options
. 2700 lm luminous flux output
.IP65 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you
General Data | |
Item No. | LWW-3601-3600-BH |
Power | 36 Watts |
LED type | 36 PCS 1W LED |
Luminous flux | 2700 lm |
CCT | 2700K,3000K,4000K,6000K |
CRI | 80+ |
Beam angle | 12°/24°/30°/40°/60°/Oval lens 10*30°/15*40° |

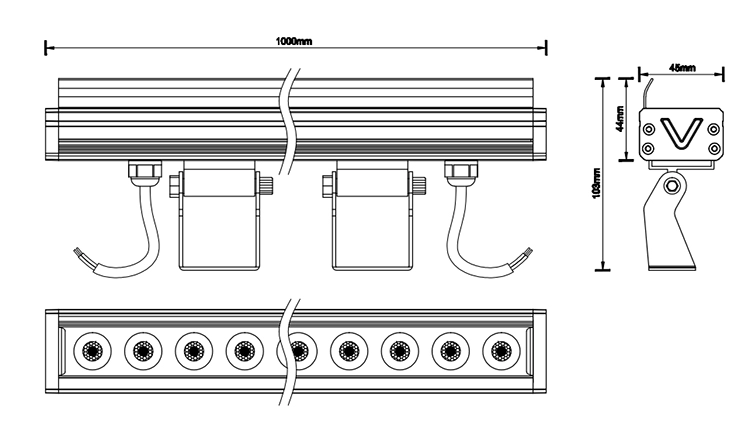

Dimension | 1000*45*28 mm (Length x Width x Height) |
Cut out | / |
Net weight | 1.75 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | AC100~265V |
Insulation class | Class I |
Cable | 2 PCS rubber cables with waterproof connectors,one side male,another side female |
Driver | Built-in high voltage constant current driver with transformer |
Construction Data | |
IP rating | IP65 Waterproof |
Housing | Passivated (Anodizing) Aluminum |
Protection finishing | 20~25μm thickness anodized film for housing .Dark grey |
Trim | Aluminum + glass |
Glass | Step tempered Glass.T=4mm. |
Loading capacity | 220 kgs |
Cable Gland | PG IP65 |
Gasket | PMQ silicone gasket seal |
Accessories | |
Bracket | Aluminum bracket |
Barn door | Without barn door as standard , and with barn door as options |
