90mm Cut-out
可以
Tuya Smart
Plastic Cover Aluminum
SIMONS
發光二極管照明
否
是
DL01-F-Smart
現代, 新奇
Features
1. Plastic cover aluminum materials, high cost effective, high heat dissipation, IC-4 Rated.
2. Integrated housing design, internal driver, the appearance of this light is more elegant.
3. Appropriate height of the light, it’s suitable for the using of most of the housings.
4. SMD Smart Downlight, CCT, RGB, RGBW, RGBCW are optional on this light.
5. Most of functions of this smart light can be customized on the devices.
6. Multi communication protocol ways can be chosen, wifi, wifi+bluetooth, bluetooth mesh (SIG), zigbee.
7. Customized the control ways with us. Optional to OEM app, remote controller, smart audio, motion/ light sensor, switch dimmer.
8. If you have your own app or devices of the smart downlight, pls let us know. We can customize the light to be fitted for your app and devices.
9. High out-put of the light, the lumen efficiency of this smart light on CW can be up to 100lm/w.
10. Optional to use metal fascia on the light. Chrome, nickel, zinc, silver, black , copper and golden fascias all can be done.
11. SAA, C-Tick, CE can be provided for you.
Set the CCT of the light on different scenes and different places.

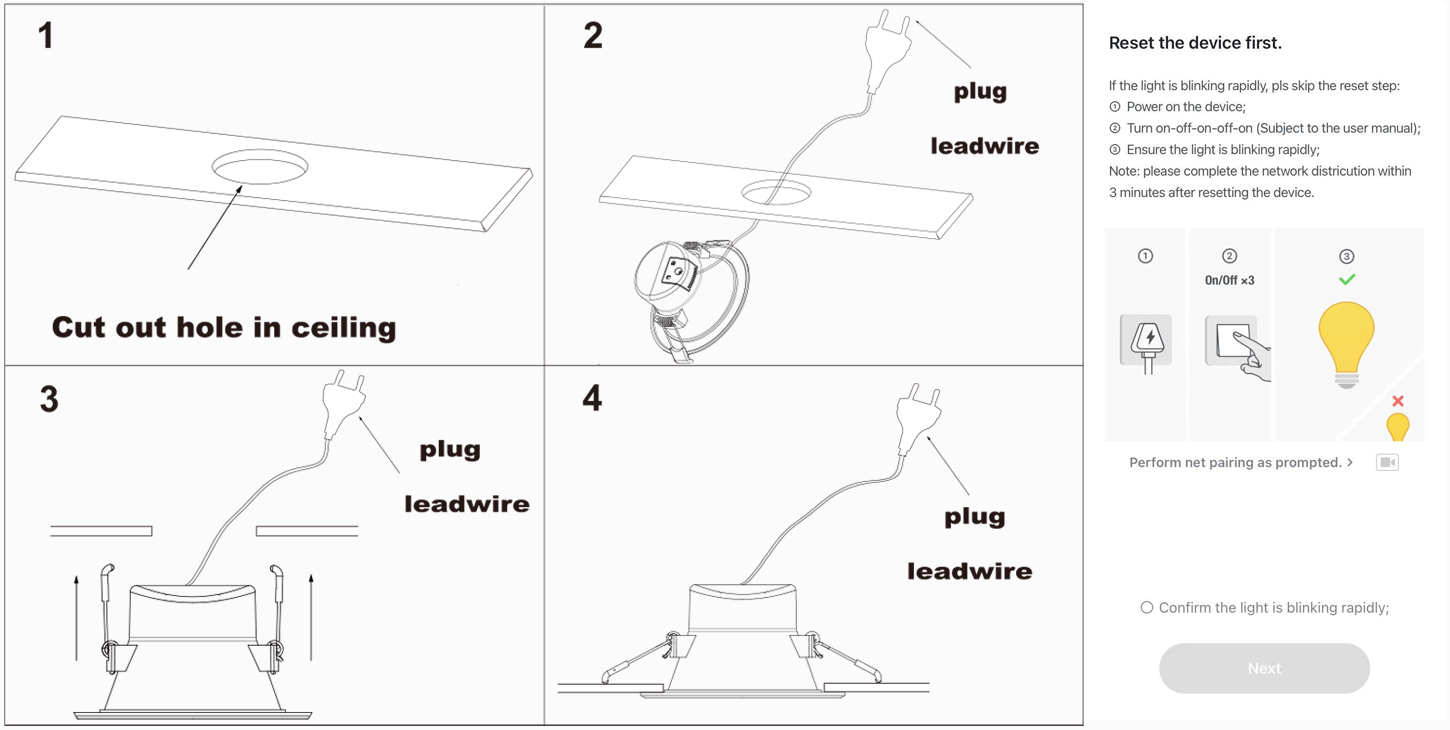

With the plug on the light, easy to be installed. Step 1, plug leadwire, step 2, connect the light with the app or devices. Step 3, install it into the cut hole.
Spec & Models
Technical Parameter
Input Voltage | 200V-240V | CRI (Ra>) | 80,90 |
Power Factor | >0.5/ >0.9 | Working Frequency | 50/60HZ |
Power | 5W, 8W | Cut Out | 90mm |
Diameter | 115mm | Height | 55mm |
Temperature | -20~50℃ | Lifetime | 30000h |
IP Rating | IP44 | Materials | Plastic cover aluminum |
Light Source | LED | LED Chip | SMD 2835 |
CCT | 3000~5000K, RGB, RGB+3000K/ 4000K/ 5000K, RGB+ 3000~5000K | Beam Angle | 100° |
Light Color | Natural/ warm/ cold | Fascia | Flat |
Models
Model | Power | Colour Temperature | Communication protocol ways |
DL01-03-08-CW-WI-F | 8W | 3000K-5000K | Wifi |
DL01-03-08-CW-WI+BL-F | 8W | 3000K-5000K | Wifi+Bluetooth |
DL01-03-08-CW-BLM-F | 8W | 3000K-5000K | Bluetooth Mesh |
DL01-03-08-CW-ZIG-F | 8W | 3000K-5000K | Zigbee |
DL01-03-08-RGB-WI-F | 8W | RGB | Wifi |
DL01-03-08-RGB-WI+BL-F | 8W | RGB | Wifi+Bluetooth |
DL01-03-08-RGB-WI-F | 8W | RGB | Wifi |
DL01-03-08-RGB-WI+BL-F | 8W | RGB | Wifi+Bluetooth |
DL01-03-08-RGBW-WI-F | 8W | RGB+3000K/4000K/5000K | Wifi |
DL01-03-08-RGBW-WI+BL-F | 8W | RGB+3000K/4000K/5000K | Wifi+Bluetooth |
DL01-03-08-RGBW-WI-F | 8W | RGB+3000K/4000K/5000K | Wifi |
DL01-03-08-RGBW-WI+BL-F | 8W | RGB+3000K/4000K/5000K | Wifi+Bluetooth |
DL01-03-08-RGBCW-WI-F | 8W | RGB+3000K~5000K | Wifi |
DL01-03-08-RGBCW-WI+BL-F | 8W | RGB+3000K~5000K | Wifi+Bluetooth |
DL01-03-08-RGBCW-WI-F | 8W | RGB+3000K~5000K | Wifi |
DL01-03-08-RGBCW-WI+BL-F | 8W | RGB+3000K~5000K | Wifi+Bluetooth |
