1pcs
China
5 Year
Shenzhen Standard Technology Co.,LTD
OEM & ODM Available
SE.Lighting

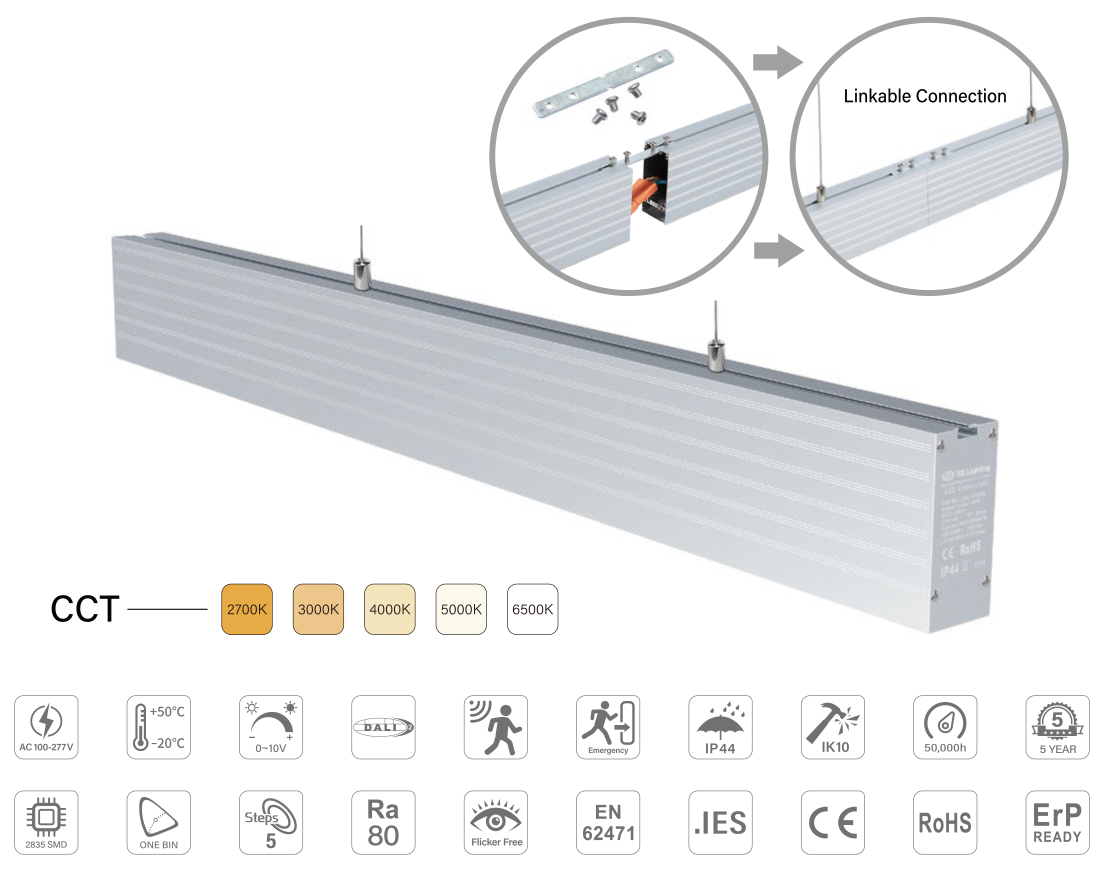

Product Parameter | |
|---|---|
Model Number | SEL-5T50W |
Beam Angle | Clear Lens(30°/ 60°/ 90°/ Double Asymmetric)/ Milky PC 120° |
Waterproof Grade | IP44 |
Color | 3000K/4000K/5000K/6000K |
| Luminous Efficacy(lm/w) | 150 |
Power | 50W |
Certification | CE ROHs SAA ETL DLC |
Warranty(Year) | 5 Years |
Life time(Hour) | 50,000 |
Power Factor (PF) | ≥0.9 |
| Flicker Free | Yes |
IK Rate | lK10 |
| Function | Normal / 0-10V Dimmable / DALI Dimmable |
| CRI (Ra>) | 80/90 |
| Driver | Fud, Passed TUV |
Input Voltage(V) | AC 220-240V/100-277V |
LED | 2835 SMD |
Ambient Temp. (℃) | -20~+50℃ |
Storage Temp. (℃) | -40~+85℃ |
Key Material | Aluminum Housing +PC Cover |
Lighting solutions service | Lighting and circuitry design; DIALux evo layout; CAD layout |
Various Specifications | |||||
|---|---|---|---|---|---|
| Part No. | SEL-2T20W | SEL-4T40W | SE-4T50W | SE-5T50W | SE-5T60W |
| Power | 20W | 40W | 50W | 50W | 60W |
| Size/mm | 590*32.4*70 | 1180*32.4*70 | 1180*32.4*70 | 1480*32.4*70 | 1480*32.4*70 |
| Luminous (LM) | 3000LM | 6000LM | 7500LM | 7500LM | 9000LM |

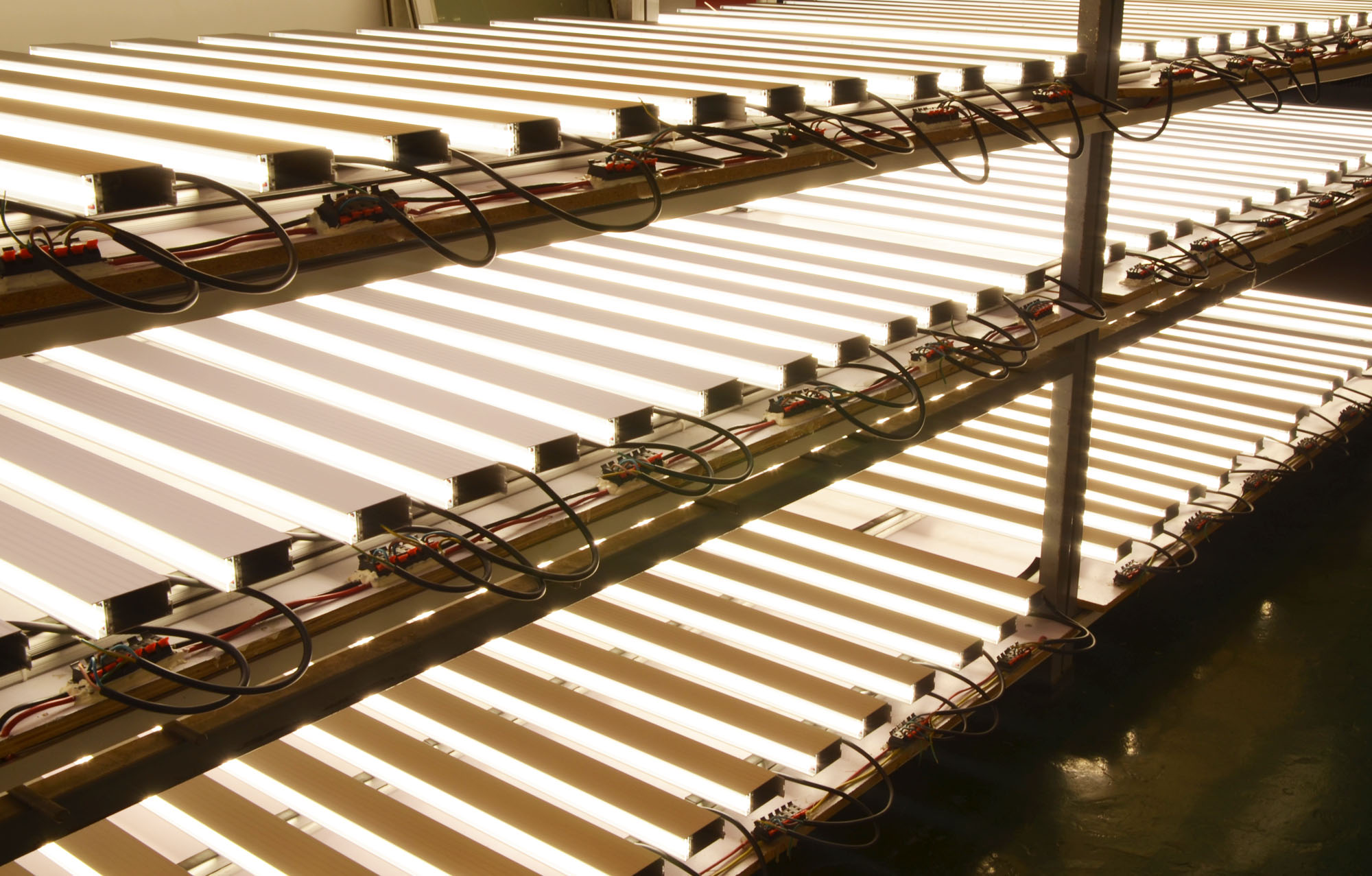

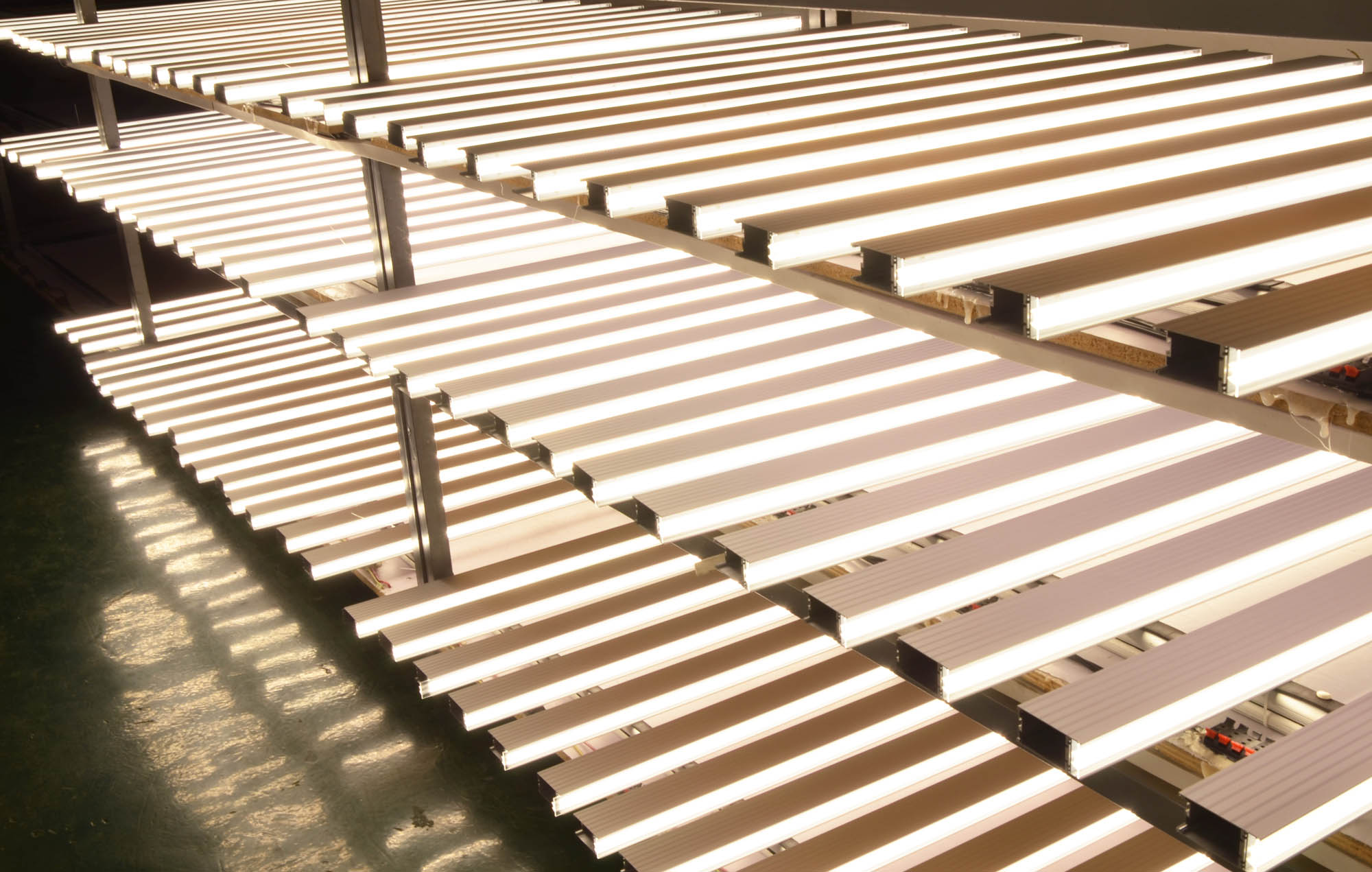

Aging Test |
|---|

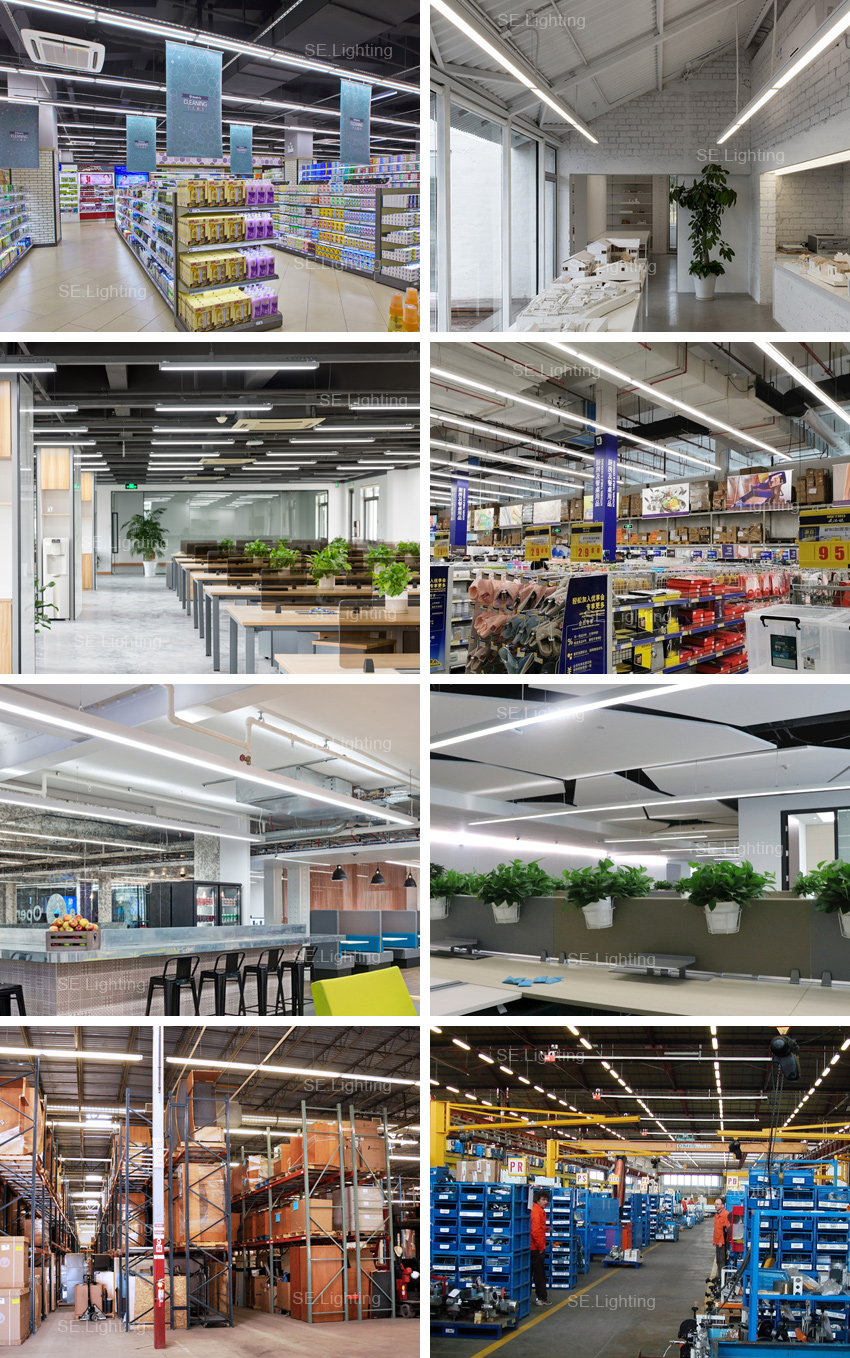

Application |
|---|

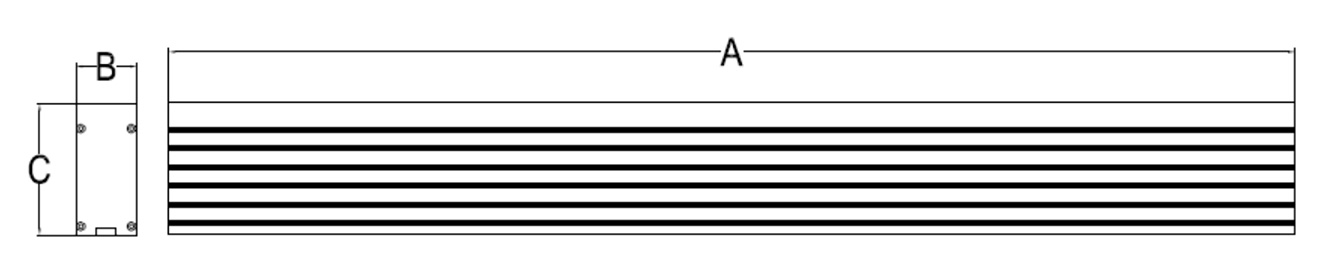

Dimension |
|---|
| Model | Size A(mm) | Size B(mm) | Size C(mm) |
|---|---|---|---|
| SEL-2T20W | 590 | 32.4 | 70 |
| SEL-4T40W | 1180 | 32.4 | 70 |
| SEL-4T50W | 1180 | 32.4 | 70 |
| SEL-5T50W | 1480 | 32.4 | 70 |
| SEL-5T60W | 1480 | 32.4 | 70 |

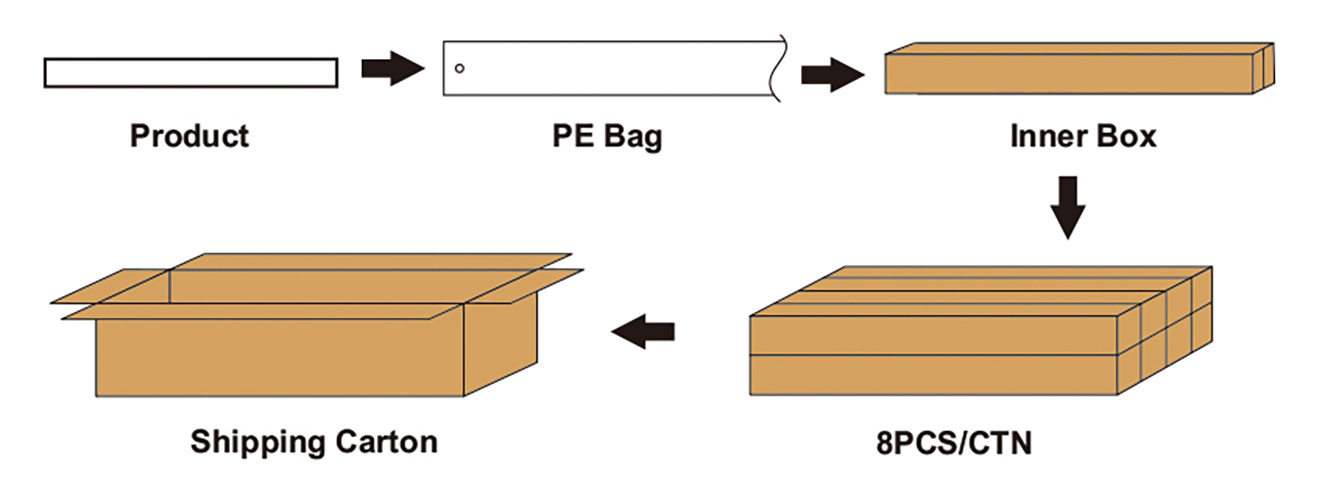

Product packaging |
|---|
| Model | CTN/PCS | N.W./Pcs* | G.W/CTN * | CTNA Size(MM) | CTNB Size(MM) |
|---|---|---|---|---|---|
| SEL-2T20W | 8 | 0.76kg | 6.4kg | 650*40*85 | 670*180*190 |
| SEL-4T40W | 8 | 1.46kg | 13.4kg | 1250*40*85 | 1270*180*190 |
| SEL-4T50W | 8 | 1.46kg | 13.4kg | 1250*40*85 | 1270*180*190 |
| SEL-5T50W | 8 | 1.82kg | 16.5kg | 1550*40*85 | 1570*180*190 |
| SEL-5T60W | 8 | 1.82kg | 16.5kg | 1550*40*85 | 1570*180*190 |

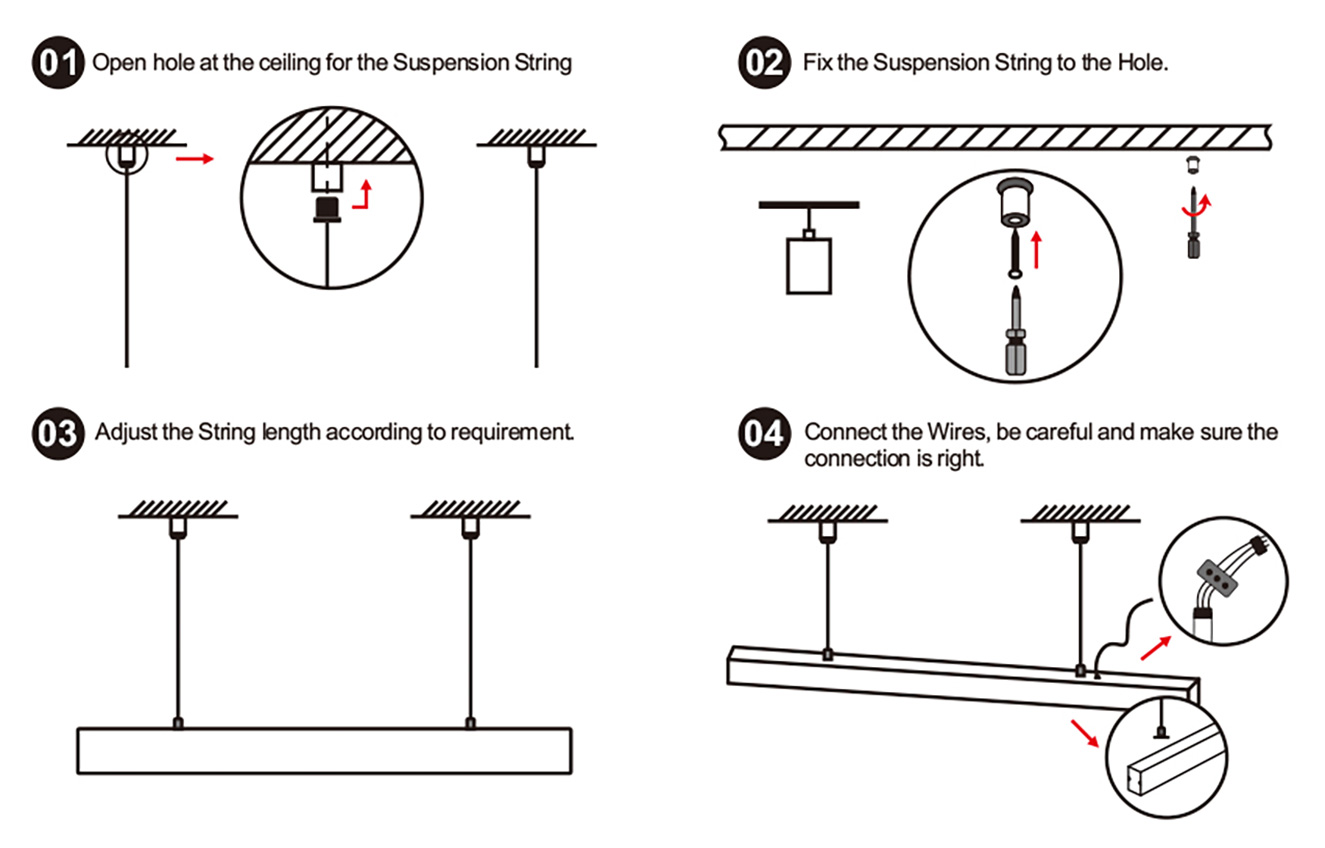

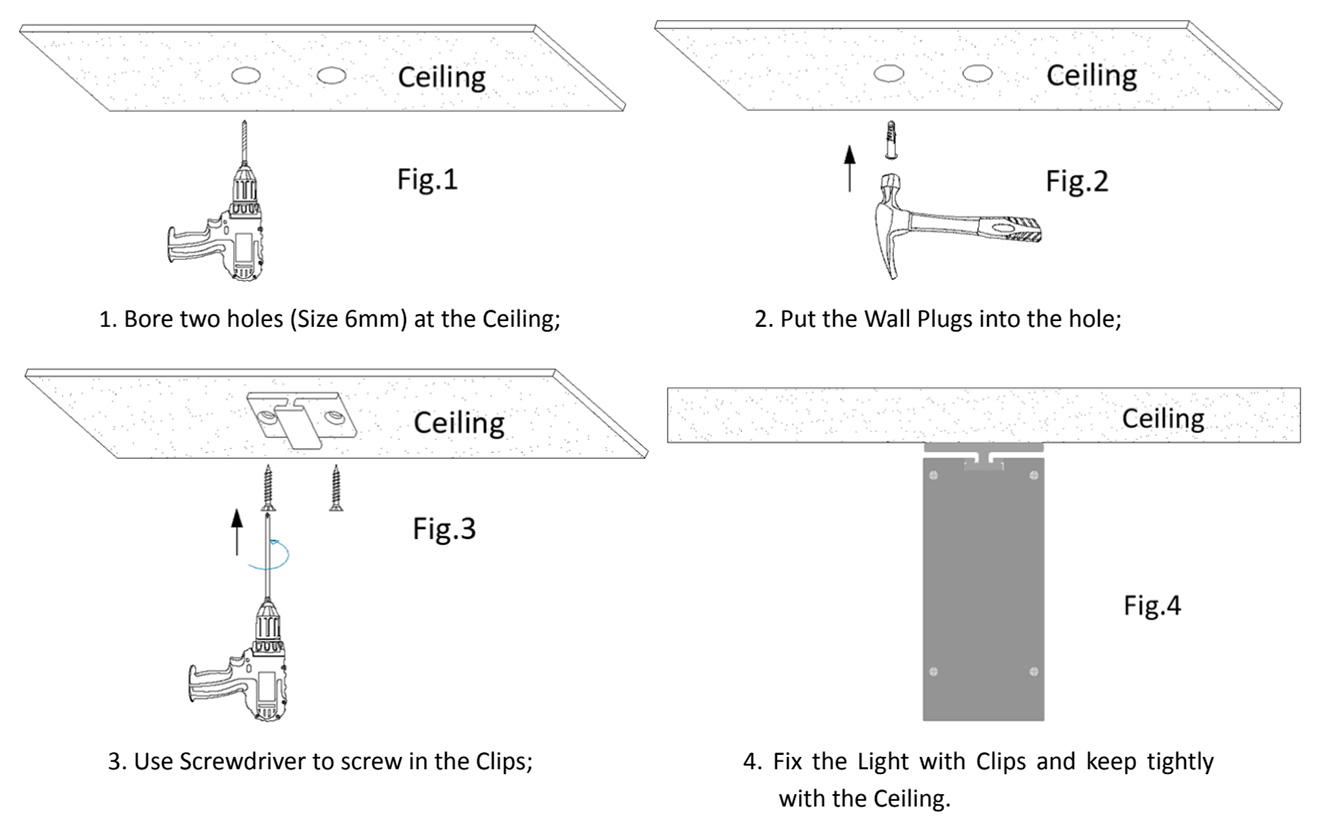

Installation Instructions |
|---|
FAQ
1.You are factory or trading company?

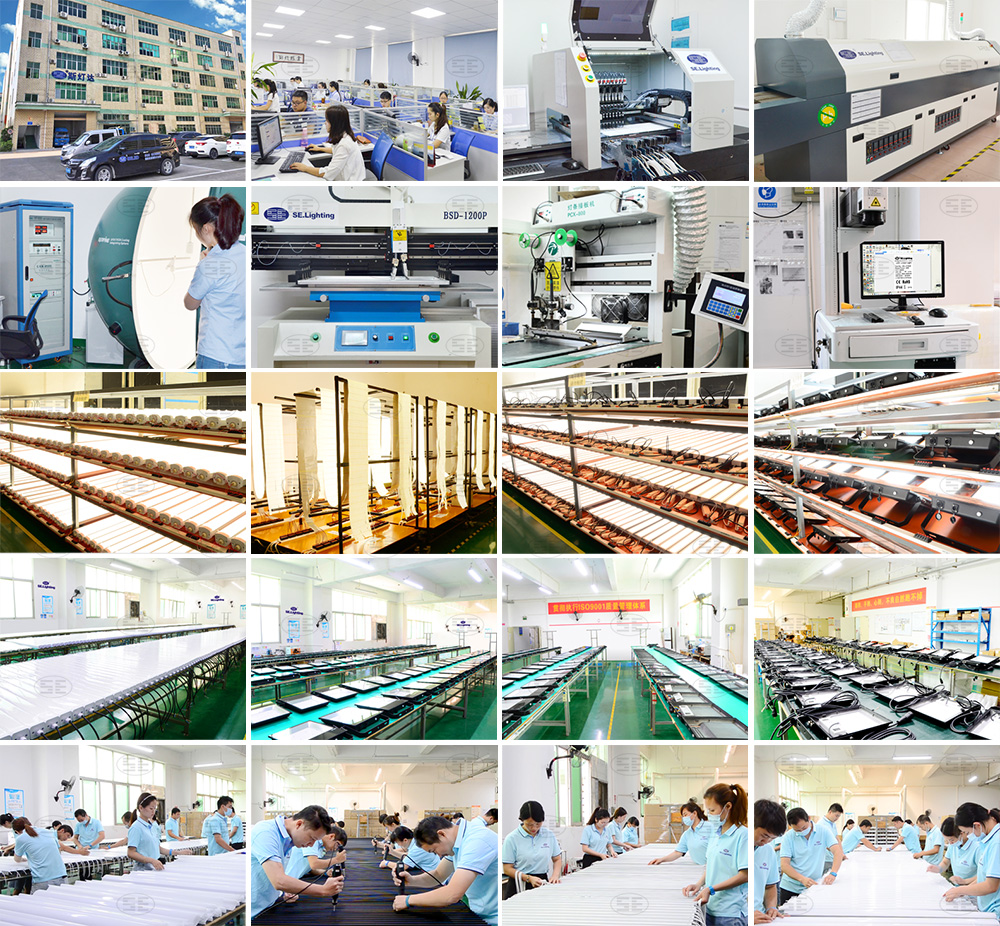

We are a factory in Shenzhen China, do LED business since 2007, more than 16 years LED Lighting manufacturer and export experience.
2. How about the delivery date?
Sample 2~4day, normal order 7~10days, bulk order 15~20days.
3. Can SE.Lighting offer OEM or ODM?
Yes, we can offer flexible solution, OEM and ODM available, just send us your needs, our professional team will help you to provide whole solution.
4. Can SE.Lighting provide DIALUX support?
Yes, we have the Everfine Goniophotometer ourselves, if you send us the project drawing, our engineer can provide the DIALUX solution for you.
5. How is the warranty policy?
We have 3 years or 5 years warranty for different products, during the warranty period, if confirm the quality product problem, we’ll response it and provide free replacement. Meanwhile we hope you can provide us necessary photo, video or send back reject to analyse the reason.
6. How can I buy your product, contact you.
You can contact our sales team freely, details you can visit our sebsite https://www.se.lighting/ for details, our team will reply you within 12 hours.
5~10 days
