7 inch LCD screen 1920*1200 TFT LCD screen 2000 high brightness 40pin display panel with MIPI interface
Microtech Technology Company Limited
Hong Kong
|
Factory in Mainland China
Booth: 5B-F09 | World of Display Technology |
Product Specification
Model No.

MTF070UG53A-V1

Customised

Yes

Brand

Microtech

Size

7inch

Product Description
ITEM
SPECIFICATION
UNIT

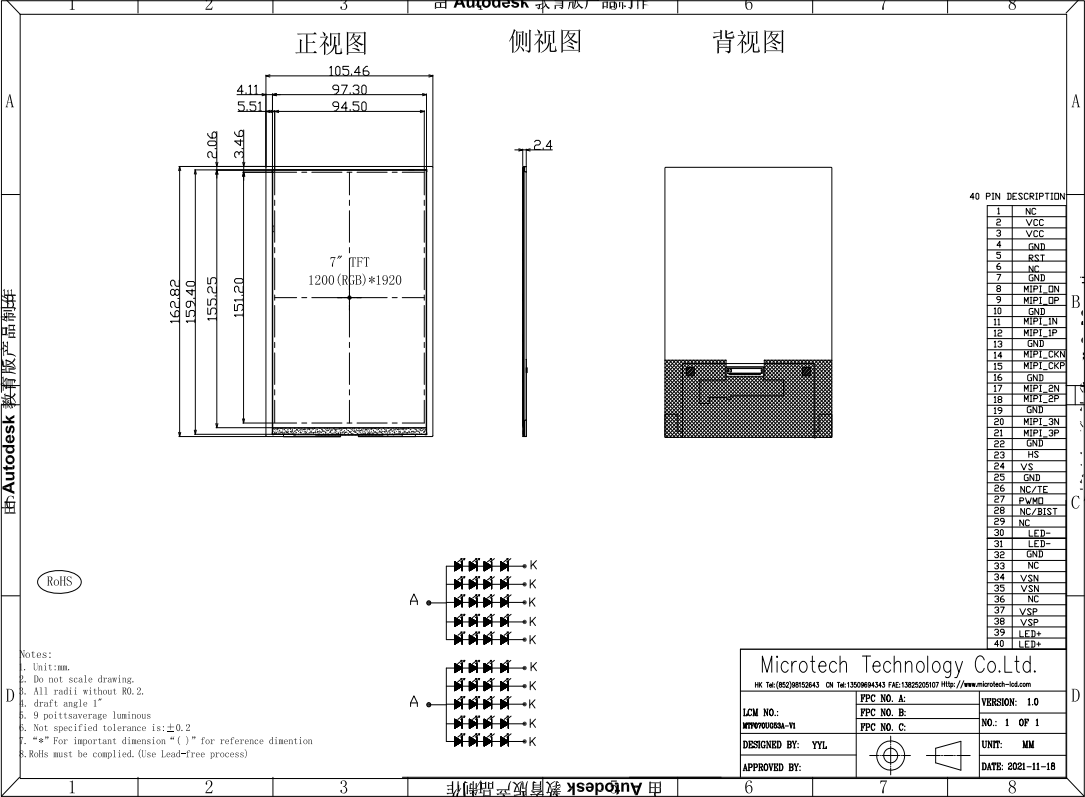

OUTLINE DIMEMSIONS
105.46(W) X162.82(H) X2.4(D)
mm
DISPLAY SIZE
7.02
inch
ACTIVE AREA
94.5 X 151.2
mm
PIXEL PITCH
0.07875mmX0.07875mm
mm
NUMBER OF DOTS
1200* (RGB) *1920
-
LCD TYPE
16.7M display color by 8bit
-
BACKLIGHT TYPE
LED White
-
VIEWING DIRECTION
free
-
TOUCH PANEL
Without TP

Production Lead Time

25-45 days
