8.0inch
Microtech
MTF080WX22A-V1
Yes
8.0 inch LCD screen 1280*800 TFT LCD module 16.7M with LVDS interface Applied to tablet mini pc

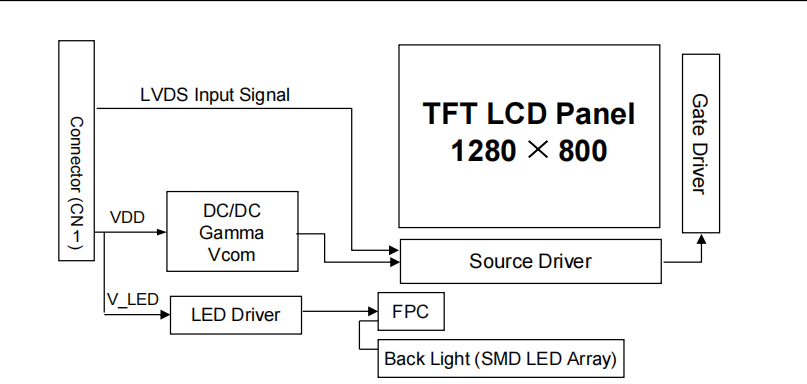

MTF080WX22A-V1 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 8.0 inch diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT LCD panel used for this module is adapted for a low reflection and higher color type.
| Parameter | Specification | Unit | Remarks |

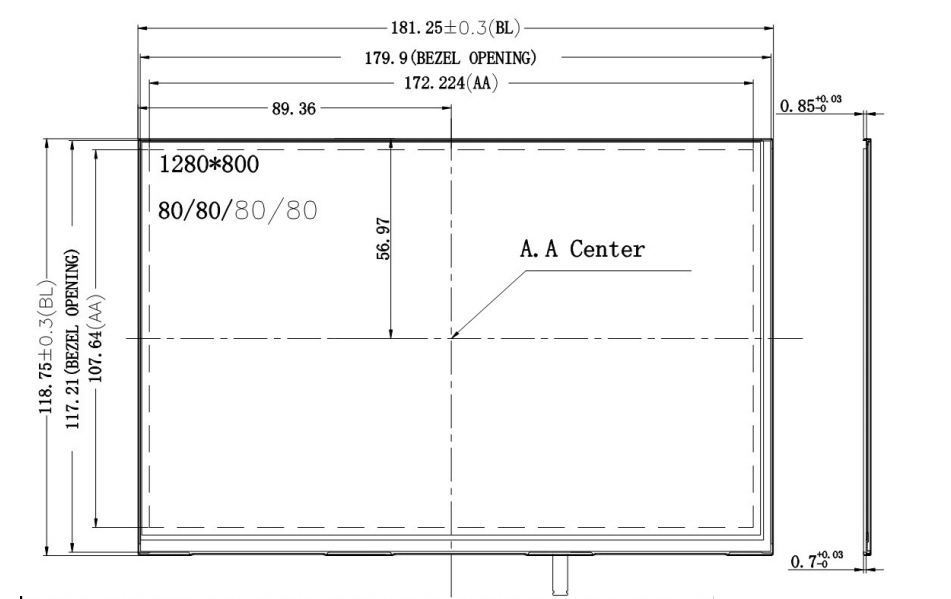

| Active area | 172.224(H) X107.64(V) | mm | |
| Number of pixels | 1280(H) X800(V) | pixels | |
| Pixel pitch | 0.13455(H) X0.13455 (V) | /zm | |
| Pixel arrangement | Pixels RGB stripe arrangement | ||
| Display colors | 16.7M(8bits+ Hi-FRC) | colors | |
| Display mode | Transmission mode. Normally Black | ||

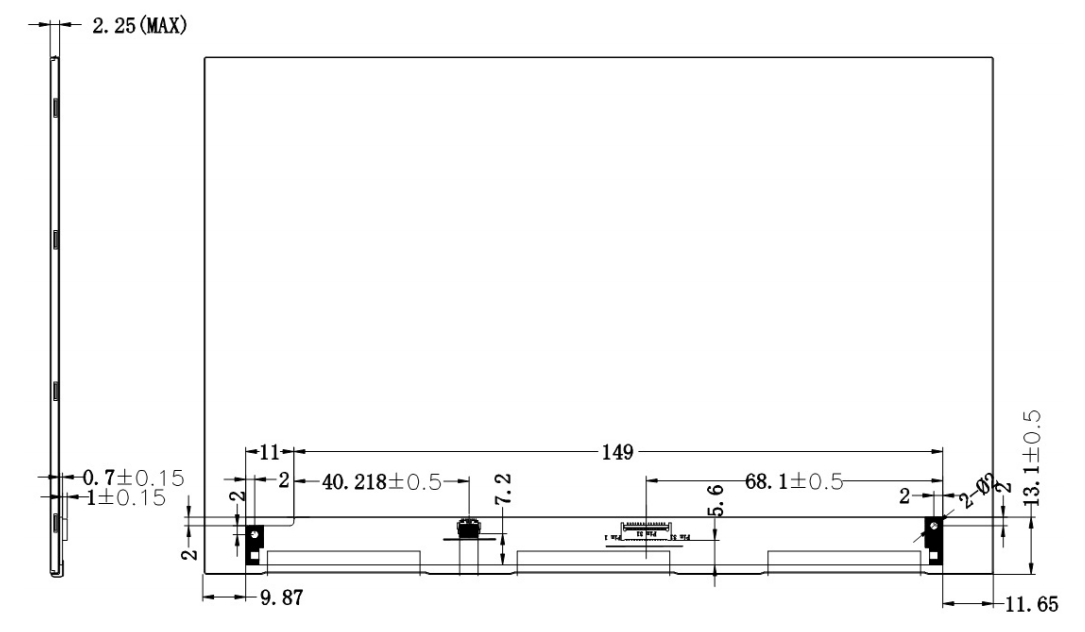

| Outline Dimension | 181.25 X118.75X3.95 Typ. | mm | |
| Weight | 107 (max) | gram | |
| Surface Treatment | Hard Coating, 3H, Low Reflection (Front Polarizer) | ||
| Back-light | Bottom edge side, 1-LED Lighting Bar Type | 36* LED Array 6串6并 |
1 Channel LVDS Interface with 1 pixel / clock
Thin and light weight
Display 16.7M colors (Hi FRC)
High luminance and contrast ratio, low reflection and wide viewing angle
DE (Data Enable) signal mode
3.3V for Logic Power and 3.7V for LED Back Light Power
RoHS Compliant
25-45 days
