10.1 inch LCD monitor 1000nits high brightness TFT LCD 1920*1200 with dual LVDS interface customized display panel
香港
| 生产线所在地：中国内地
展位编号: 5B-D08 | 显示技术世界 |
产品规格
型号编号
MTF101UG17A-V1
尺寸
10.1inch
是否可订造
可以
品牌
Microtech-lcd
产品简介
10.1 inch LCD Monitor 1000 nits High Brightness TFT LCD 1920*1200 with Dual LVDS Interface Customized Display Panel

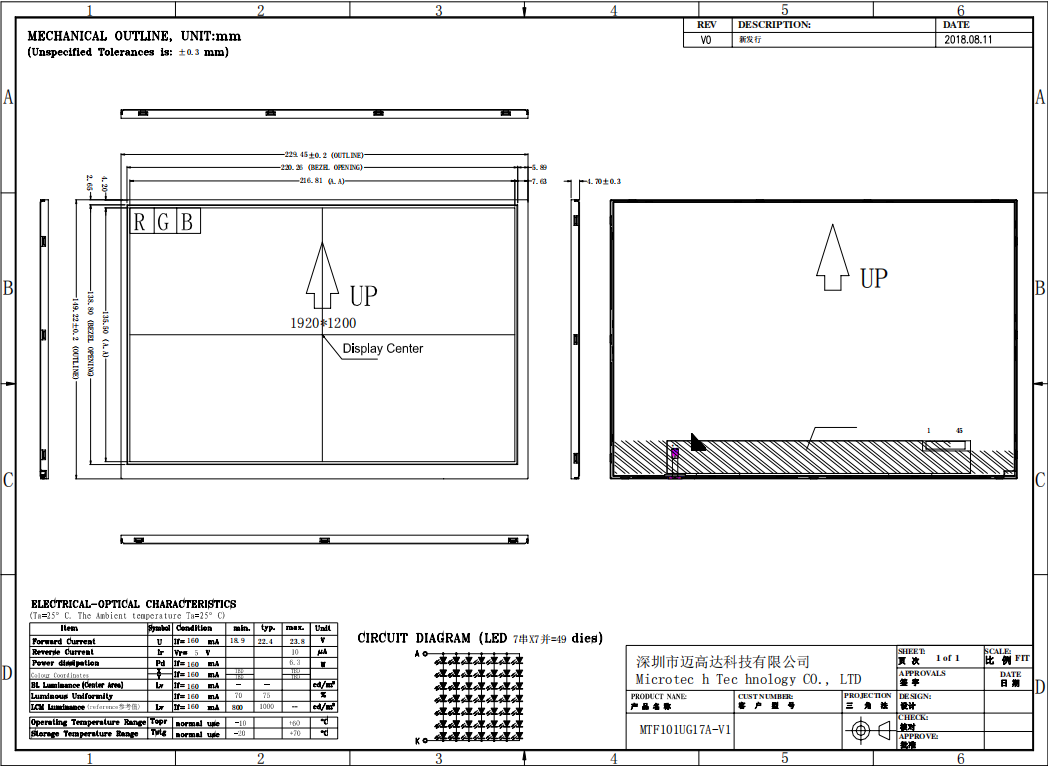

Parameter | Specification | Unit | Remarks |
Active Area | 216.8064(H)*135.504(V) | mm | |
Number Of Pixels | 1920(H) x 1200(V) | pixels | |
Pixel Pitch | 0.03764(H) x RGB x 0.11292(V) | mm | |
Pixel Arrangement | Pixels RGB stripe arrangement | ||
Display Mode | Normally Black | ||
Display Colors | 16.7M(8bit) | colors | |
Surface Treatment | HC | ||
Contrast Ratio | 900:l(typ.) | ||
Viewing Angle(CR>10) | 80/80/80/80(typ.) | ||
Response Time | 30(typ.)/35(max.) | ms | |
Color Gamut | 72%NTSC | @BOE BLU | |
Power Consumption | Panel: 0.6(Typ.) | watt | @white |
Outline Dimension | 229.45(H)*149.22(V)*4.7(typ.) | mm |
生产所需时间
25-45 日
