Product Specification
FAR
<0.002%
Weight
85G
Brand
OEM
Resolution
508DPI (360 Degrees)
Model No.
L1
Application
Backbag, Suitcase
FRR
<1%
Max Fingerprint Capacity
10pcs
Battery
Lithium 180mAh 3.7V
Size
16.4*34.3*90.9MM
Product Description

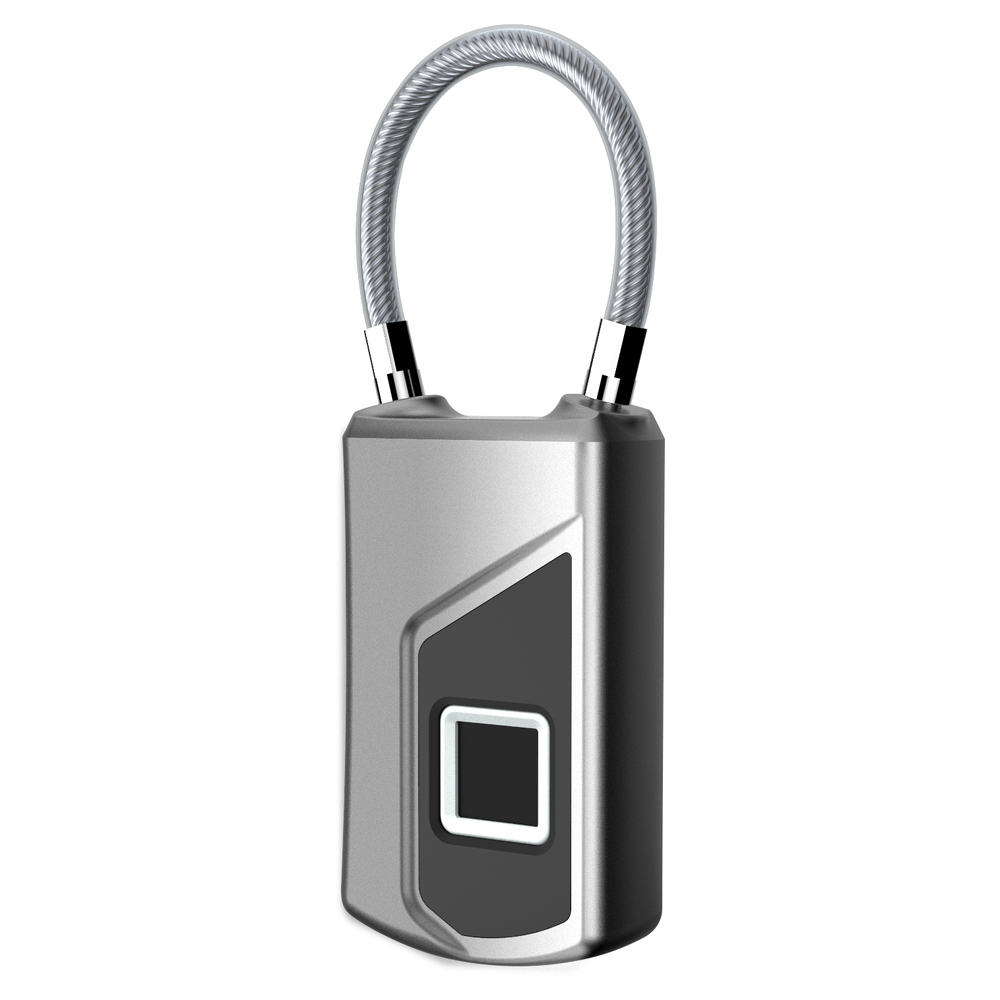

Security Fingerprint Lock Finger Padlock L1 USB Charge Only,
| Items | Descriptions | |
| Fingerprint | Sensor | Semiconductor fingerprint sensing technology, 120*120 |
| Head Shape | Square 10.4*10.4mm | |
| Capacity | 10 sets | |
| Technology | Biometrics | |
| FAR | ＜0.002% | |
| FRR | ＜1% | |
| Collection Time | ≤0.5s | |
| Matching Time | ≤1.0s | |
| Admin Capacity | 2 set | |
| Set up | Short press to unlock, long press 5S to set fingerprint, long press 10S to delete fingerprint | |
| Material | Lock Body | Integrated stamping to shape all zinc alloy |
| Lock Beam | / | |
| Lock Beam Diameter | 4mm | |
| Lock Cylinder | No mechanical lock cylinder | |
| APP | APP | / |
| Technology | / | |
| Unlock Time | / | |
| Unlock Mode | / | |
| Password Length | / | |
| Support System | / | |
| IC Proximity Card | IC proximity card | No support |
| IC proximity card | / | |
| Frequency | / | |
| Induction Method | / | |
| Card Type | / | |
| Card Capacity | / | |
| Card Size | / | |
| LED Display | Backlight Mode | / |
| LED Display Size | / | |
| Others | Motor | Planetary gear motor M10 |
| Working Voltage | 3.7V | |
| Communication Mode | / | |
| Antenna Module | / | |
| Remote Unlock | / | |
| Open door message push | / | |
| Lock Picking Alarm Push | / | |
| Remotely set a temporary password | / | |
| Anti-hijacking alarm | / | |
| Battery | Lithium Battery 180mAh 3.7V | |
| Charging Current | 5V/200MA | |
| Continuous standby | 12 Months | |
| Full of tips | Red Light off | |
| Waterproof Class | Life Waterproof | |

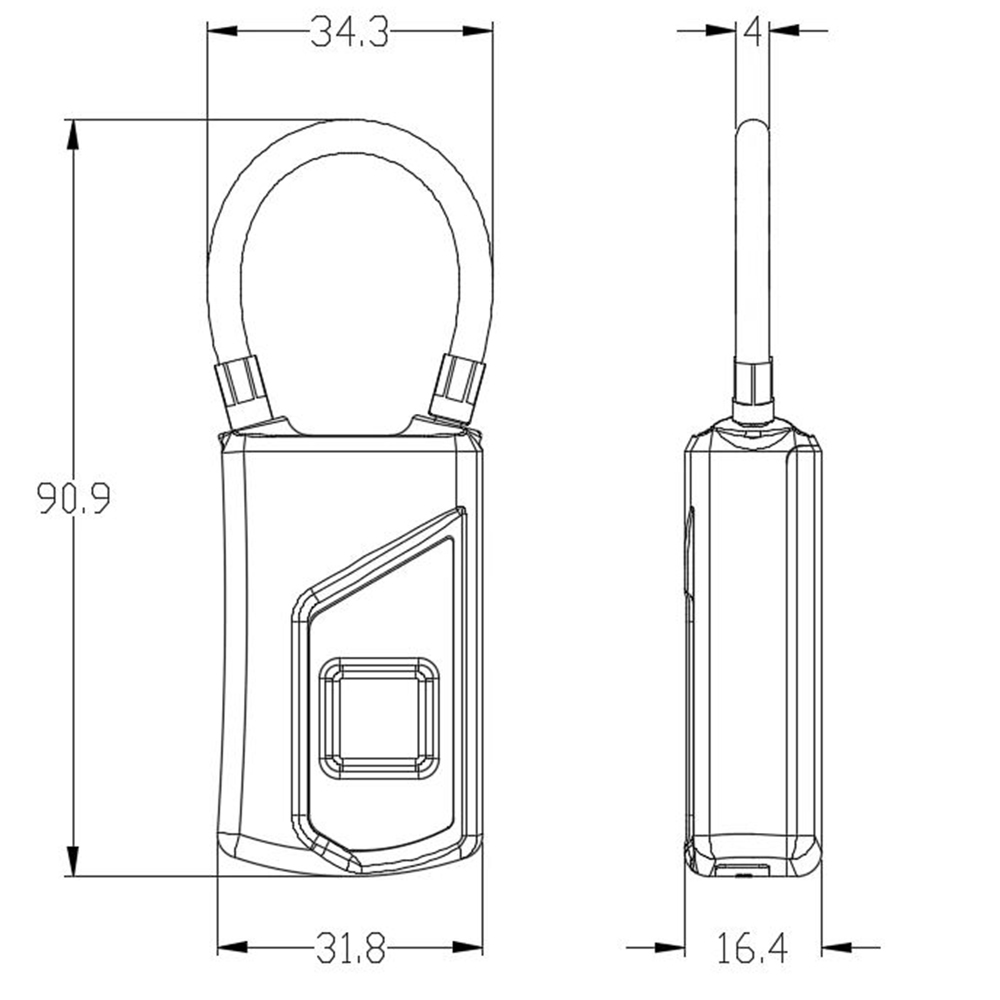

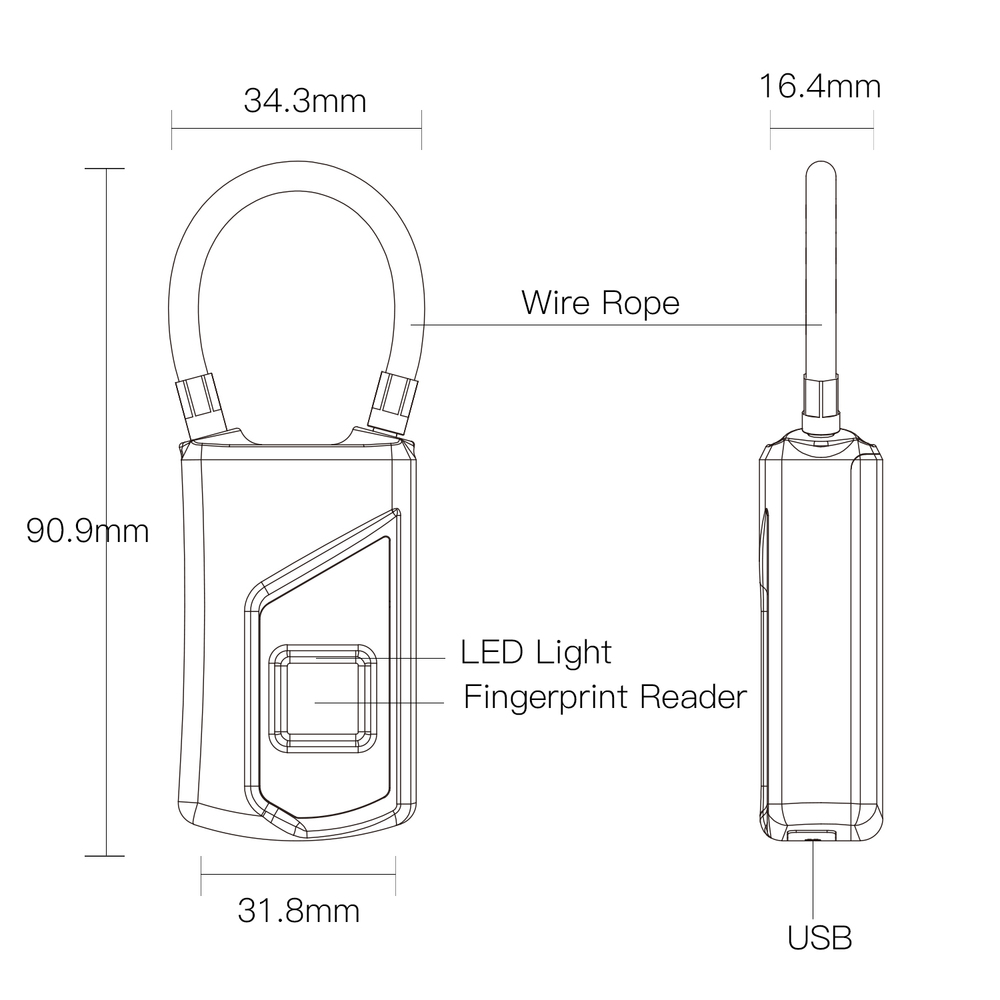

| Product Size | 16.4*34.3*90.9mm | |
| Low-Battery Alarm | 3.5V | |
| LED Light | 3-color Light | |
| USB Interface | Micro USB 5V 0.5A（urgent + Charging） | |
| Press Button | / | |
| Working Temperature | -10℃~+70℃ | |
| Product NW | 85g | |
Production Lead Time
25 days
