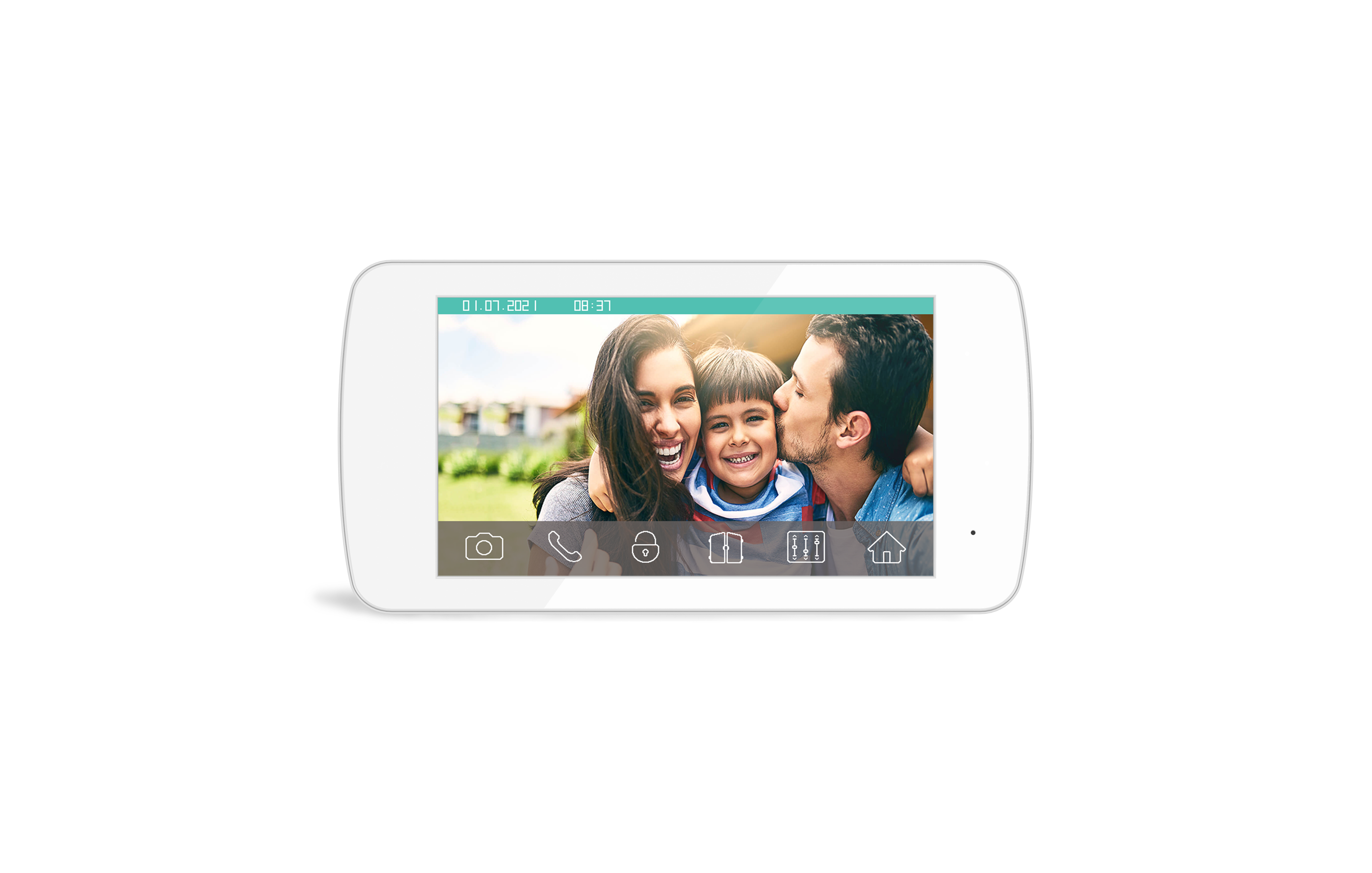

Calling
1) Under the standby mode, when “CALL” Button of the outdoor unit is pushed, the indoor unit will be
ringing for 12s; the screen will light up; and visitors’ images can be seen on the screen.
2) Under the calling mode, when there is no answer, the call will be automatically hung up after 60s.
3) Under the calling mode, when “ANSWER” Button is pushed, the ring will stop and the intercom mode
will start in which a two-way intercom of 100s can be made between the indoor and outdoor units.
To stop the intercom in advance, push the “MAIN SCREEN” Button ; the intercom and the screen will be
off and turn into the standby mode simultaneously at this time. Otherwise the intercom will be automatically hung up
after 100s.
Unlocking
Under the intercom mode, push “UNLOCK THE ELECTRONIC LOCK” Button to open the door(electric lock), with the
unlocking current being 1A or below and the unlocking time being 1s or below.
Under the intercom mode, push “UNLOCL THE GATE” Button to open the gate, with the unlocking time being 3s.

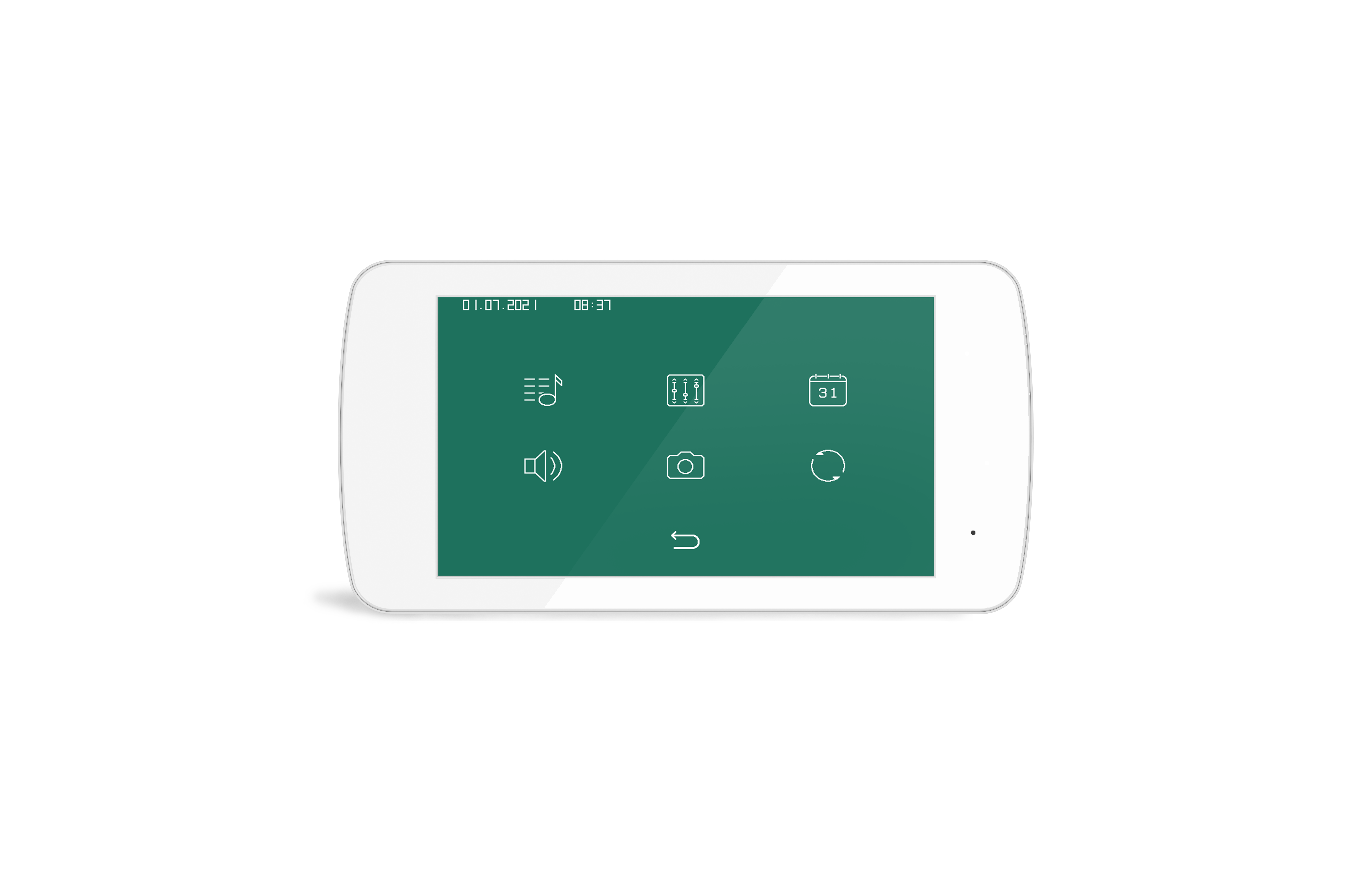

Main screen
Only touch the screen, you can exit the standby mode and the main screen will be display as below.
Monitor
Push “MONITOR” Button, the images of the outdoor unit can be seen for 60s. At this time, only one-way conversation is available (from the outdoor unit to the indoor unit).
To start a two-way intercom, push “ANSWER” Button (a two-way intercom last for 100s).
To stop the monitoring mode, push “MAIN SCREEN” Button . The intercom and the screen will be off simultaneously. Otherwise the intercom will be automatically hung up after 60s.
Intercom between Indoor Units (This function only applies to one outdoor unit with two indoor units)
Under the standby mode, when “INTERCOM” Button of Indoor Unit A is pushed, Indoor Unit B will be ringing for 12s; the
screens of both indoor units will light up and turn blue with no images.
After “Intercom” Button of Indoor Unit A is pushed, Indoor Unit B will be ringing for 12s. If there is no answer from
Indoor Unit B, the call will be automatically hung up after 60s.
*When one of the monitor push the “INTERCOM” Button.
*When the two monitors are intercoming.

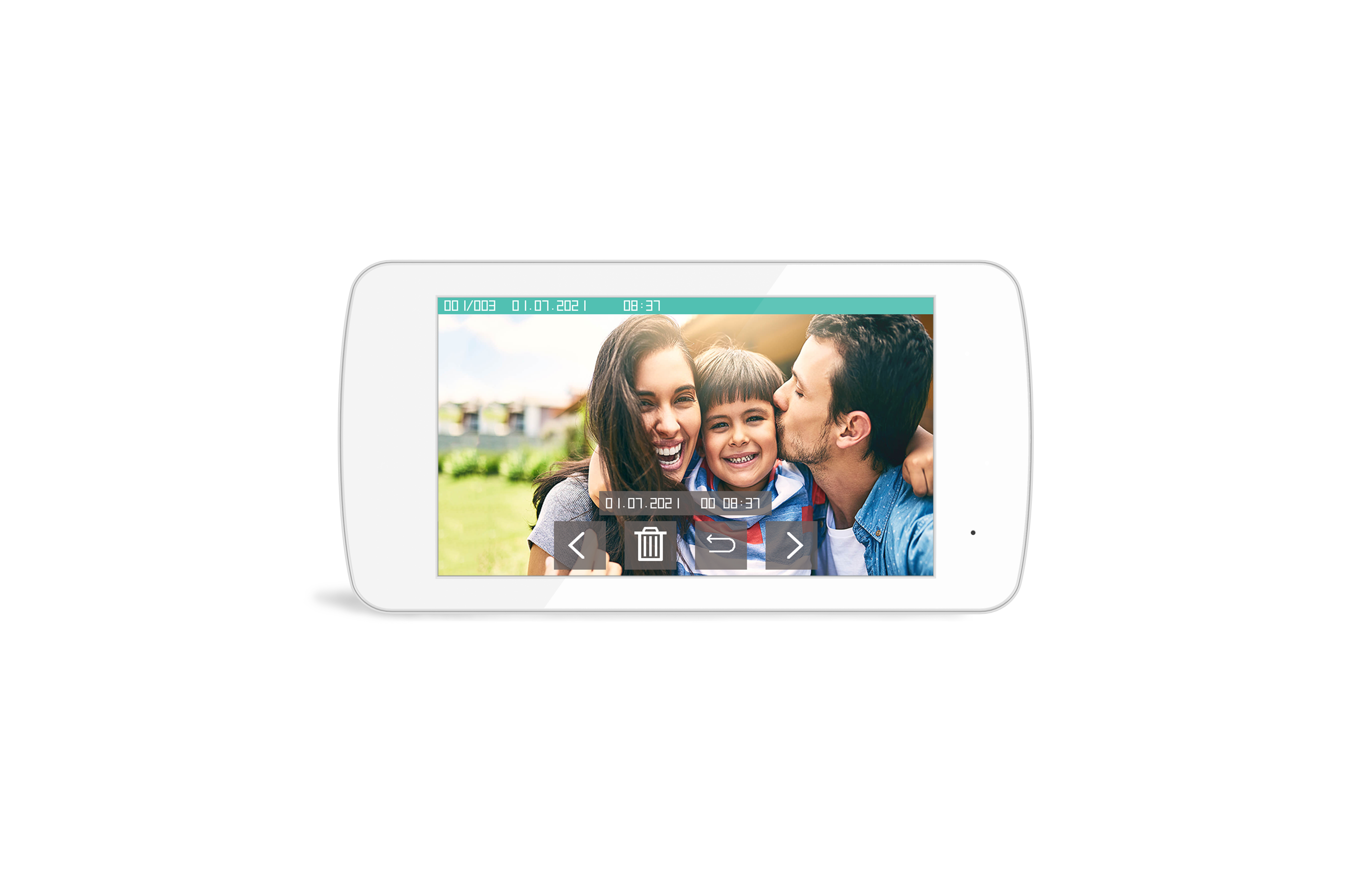

Picture review
Push “PICTURE REVIEW”Button, you can review the picture you took manually before.
