DSP Amplifier 12ch DSP with Amplifier FP-12A
Mainland China
Booth: 3C-F15 | Automotive & In-Vehicle Electronics |
Product Specification
Brand
FREUDE
Model No.
FP-12A
Product Description

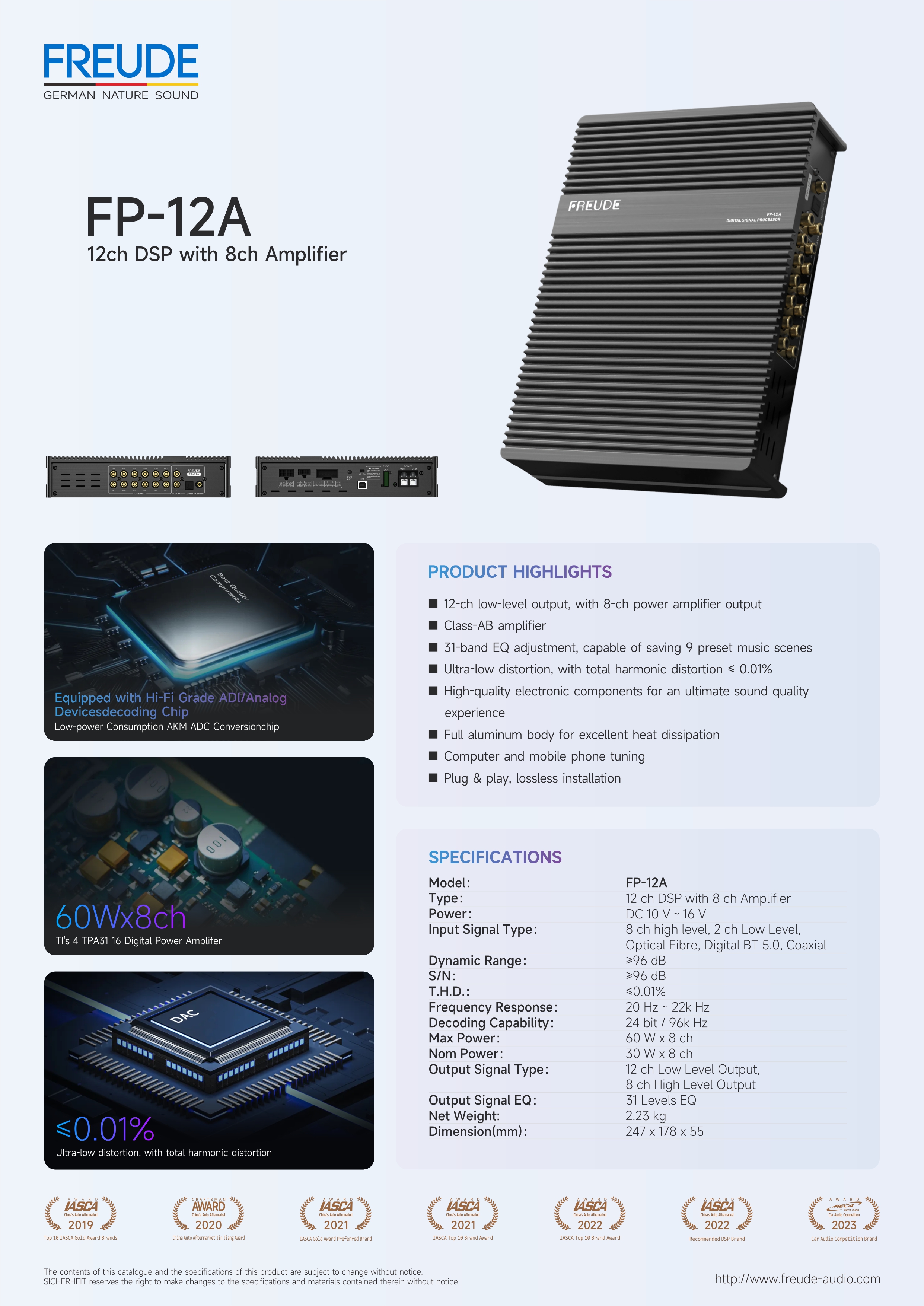

FP-12A
12ch DSP with Amplifier
■ 12-ch low-level output, with 8-ch power amplifier output
■ Class-AB amplifier
■ 31-band EQ adjustment, capable of saving 9 preset music scenes
■ Ultra-low distortion, with total harmonic distortion ≤ 0.01%
■ High-quality electronic components for an ultimate sound quality experience
■ Full aluminum body for excellent heat dissipation
■ Computer and mobile phone tuning
■ Plug & play, lossless installation
■ 12-ch low-level output, with 8-ch power amplifier output
■ Class-AB amplifier
■ 31-band EQ adjustment, capable of saving 9 preset music scenes
■ Ultra-low distortion, with total harmonic distortion ≤ 0.01%
■ High-quality electronic components for an ultimate sound quality experience
■ Full aluminum body for excellent heat dissipation
■ Computer and mobile phone tuning
■ Plug & play, lossless installation
| Model: | FP-12A |
| Type: | 12 ch DSP with 8 ch Amplifier |
| Power: | DC 10 V～16 V |
| Input Signal Type: | 8 ch high level, 2 ch Low Level, Optical Fibre, Digital BT 5.0, Coaxial |
| Dynamic Range: | ≥96 dB |
| S/N: | ≥96 dB |
| T.H.D.: | ≤0.01% |
| Frequency Response: | 20 Hz ~ 22k Hz |
| Decoding Capability: | 24 bit / 96k Hz |
| Max Power: | 60 W x 8 ch |
| Nom Power: | 30 W x 8 ch |
| Output Signal Type: | 12 ch Low Level Output, 8 ch High Level Output |
| Output Signal EQ: | 31 Levels EQ |
| Net Weight: | 2.23 kg |
| Dimension(LxWxH;mm): | 247 x 178 x 55 |
