Car audio amplifier Class AB Four Channels Amplifier FS-4
Mainland China
Booth: 3C-F15 | Automotive & In-Vehicle Electronics |

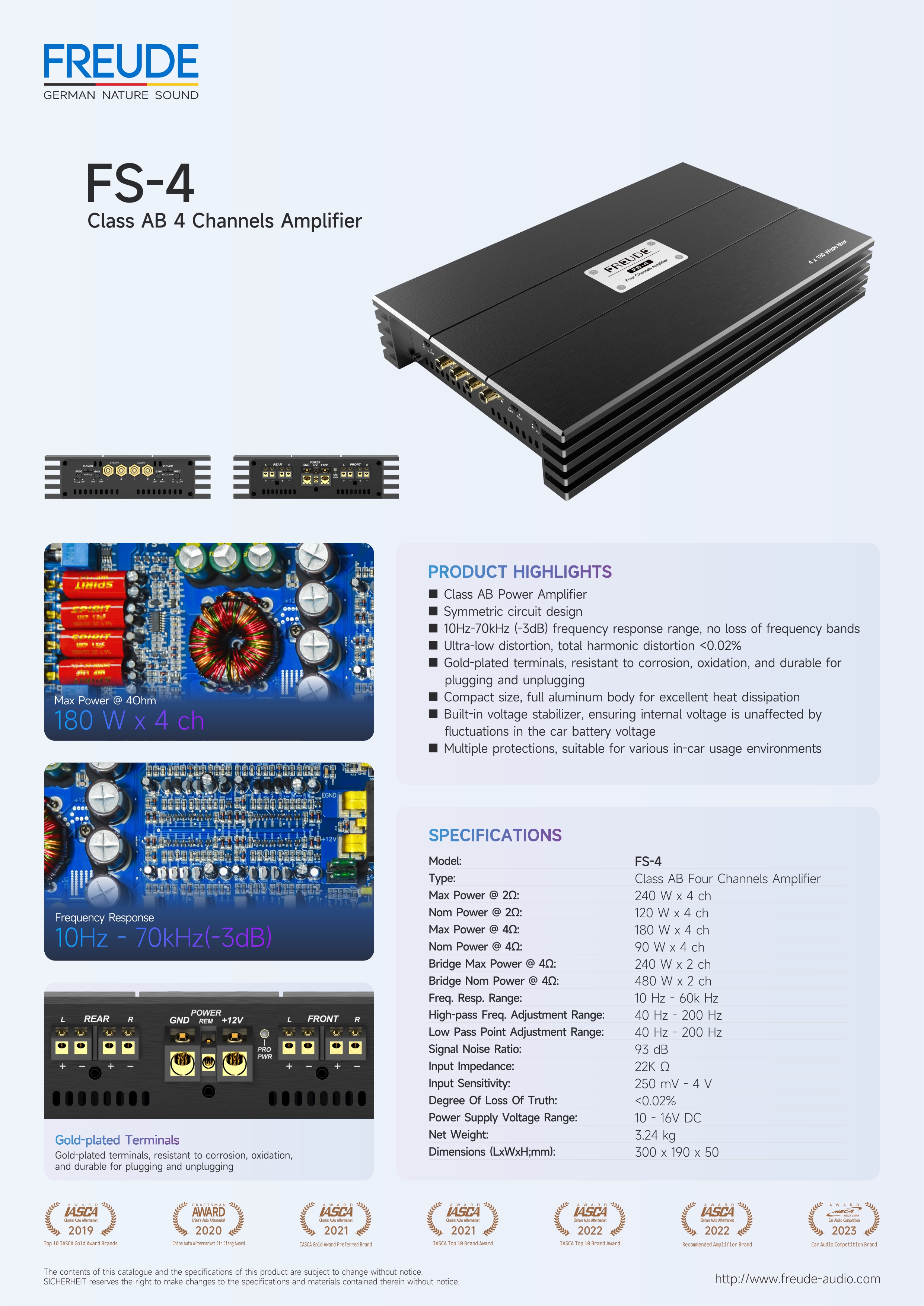

Product Specification
AMPLIFIER
Class AB Four Channels Amplifier
Brand
FREUDE
Model No.
FS-4
Product Description
FS-4
Class AB Four Channels Amplifier
■ Class AB Power Amplifier
■ Symmetric circuit design
■ 10Hz-70kHz (-3dB) frequency response range, no loss of frequency bands
■ Ultra-low distortion, total harmonic distortion <0.02%
■ Gold-plated terminals, resistant to corrosion, oxidation, and durable for plugging and unplugging
■ Compact size, full aluminum body for excellent heat dissipation
■ Built-in voltage stabilizer, ensuring internal voltage is unaffected by fluctuations in the car battery voltage
■ Multiple protections, suitable for various in-car usage environments
■ Class AB Power Amplifier
■ Symmetric circuit design
■ 10Hz-70kHz (-3dB) frequency response range, no loss of frequency bands
■ Ultra-low distortion, total harmonic distortion <0.02%
■ Gold-plated terminals, resistant to corrosion, oxidation, and durable for plugging and unplugging
■ Compact size, full aluminum body for excellent heat dissipation
■ Built-in voltage stabilizer, ensuring internal voltage is unaffected by fluctuations in the car battery voltage
■ Multiple protections, suitable for various in-car usage environments
| Model: | FS-4 |
| Type: | Class AB Four Channels Amplifier |
| Max Power @ 2Ω: | 240 W x 4 ch |
| Nom Power @ 2Ω: | 120 W x 4 ch |
| Max Power @ 4Ω: | 180 W x 4 ch |
| Nom Power @ 4Ω: | 90 W x 4 ch |
| Bridge Max Power @ 4Ω: | 240 W x 2 ch |
| Bridge Nom Power @ 4Ω: | 480 W x 2 ch |
| Freq. Resp. Range: | 10 Hz - 60 kHz |
| High-pass Freq. Adjustment Range: | 40Hz - 200Hz |
| Low Pass Point Adjustment Range: | 40Hz - 200Hz |
| Signal Noise Ratio: | 93 dB |
| Input Impedance: | 22k Ω |
| Input Sensitivity: | 250mV-4V |
| Degree Of Loss Of Truth: | <0.02 % |
| Power Supply Voltage Range: | 10 - 16 VDC |
| Net Weight: | 3.24 kg |
| Dimensions (LxWxH;mm): | 300 x 190 x 50 |
