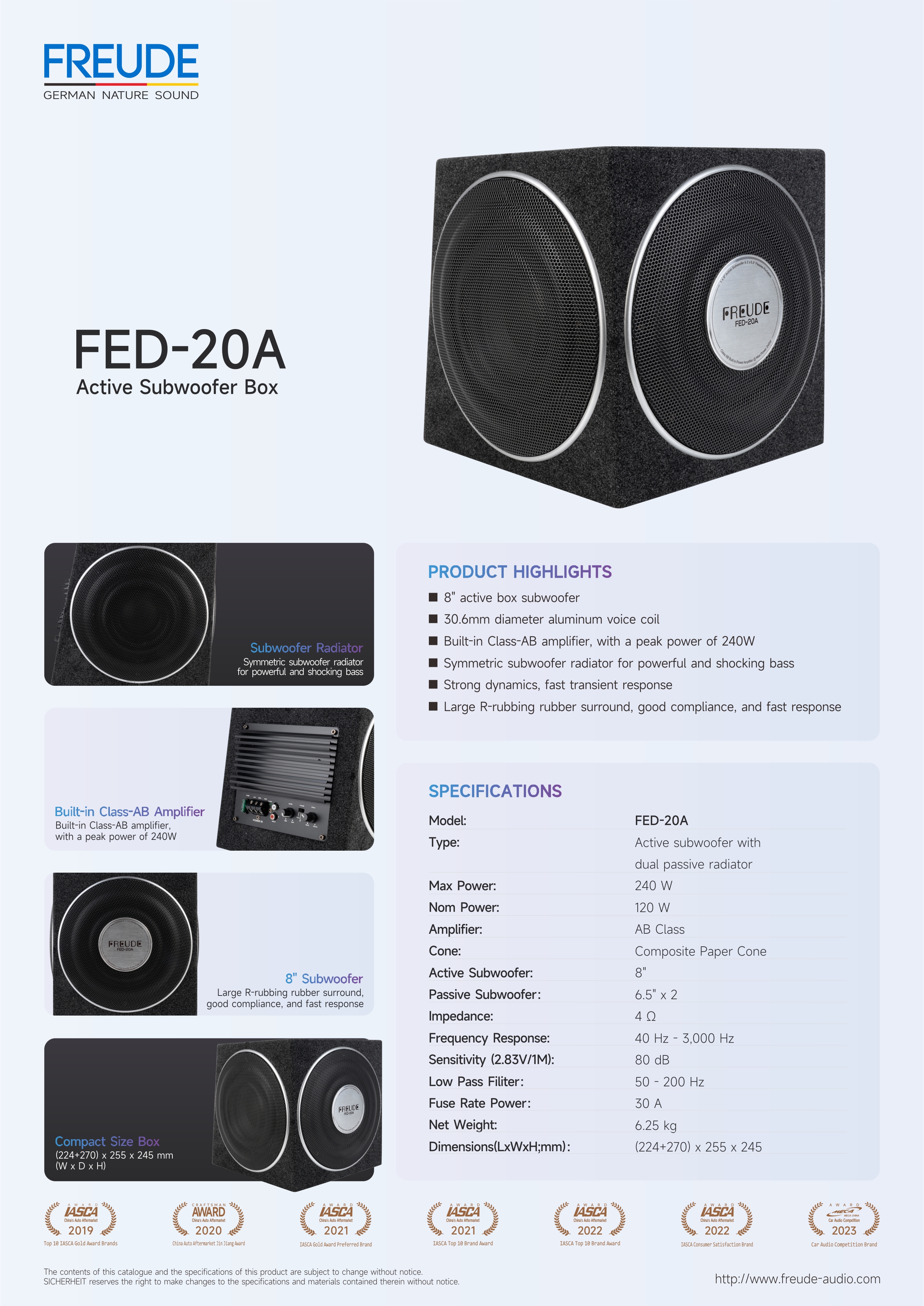

Product Specification
Brand
FREUDE
Model No.
FED-20A
Product Description
Active Subwoofer Box
■ 8" active box subwoofer
■ 30.6mm diameter aluminum voice coil
■ Built-in Class-AB amplifier, with a peak power of 240W
■ Symmetric subwoofer radiator for powerful and shocking bass
■ Strong dynamics, fast transient response
■ Large R-rubbing rubber surround, good compliance, and fast response
| Model: | FED-20A |
| Type: | Active subwoofer with dual passive radiator |
| Max Power: | 240 W |
| Nom Power: | 120 W |
| Amplifier: | AB Class |
| Cone: | Composite Paper Cone |
| Active Subwoofer: | 8" |
| Passive Subwoofer： | 6.5" x 2 |
| Impedance: | 4 Ω |
| Frequency Response: | 40 Hz - 3,000 Hz |
| Sensitivity (2.83V/1M): | 80 dB |
| Low Pass Filiter： | 50 - 200 Hz |
| Fuse Rating: | 30 A |
| Net Weight: | 6.25 kg |
| Dimensions (LxWxH;mm): | (224+270) x 255 x 245 |
