Product Specification
Material

PMMA

Size

22.4mm

Brand

Asahi

Power Source

AC Power

Weight

0.03

Customised

Yes

Model No.

AJS22D9H3065G-TAPE

Feature

narrow height

Application

LED Lighting

Light Source

LED

Product Description

Single Lens 22.4mm with Narrow Height 9.63mm Is Very Complete To Meet The Different Lighting Application AJS22D9H3065G-TAPE

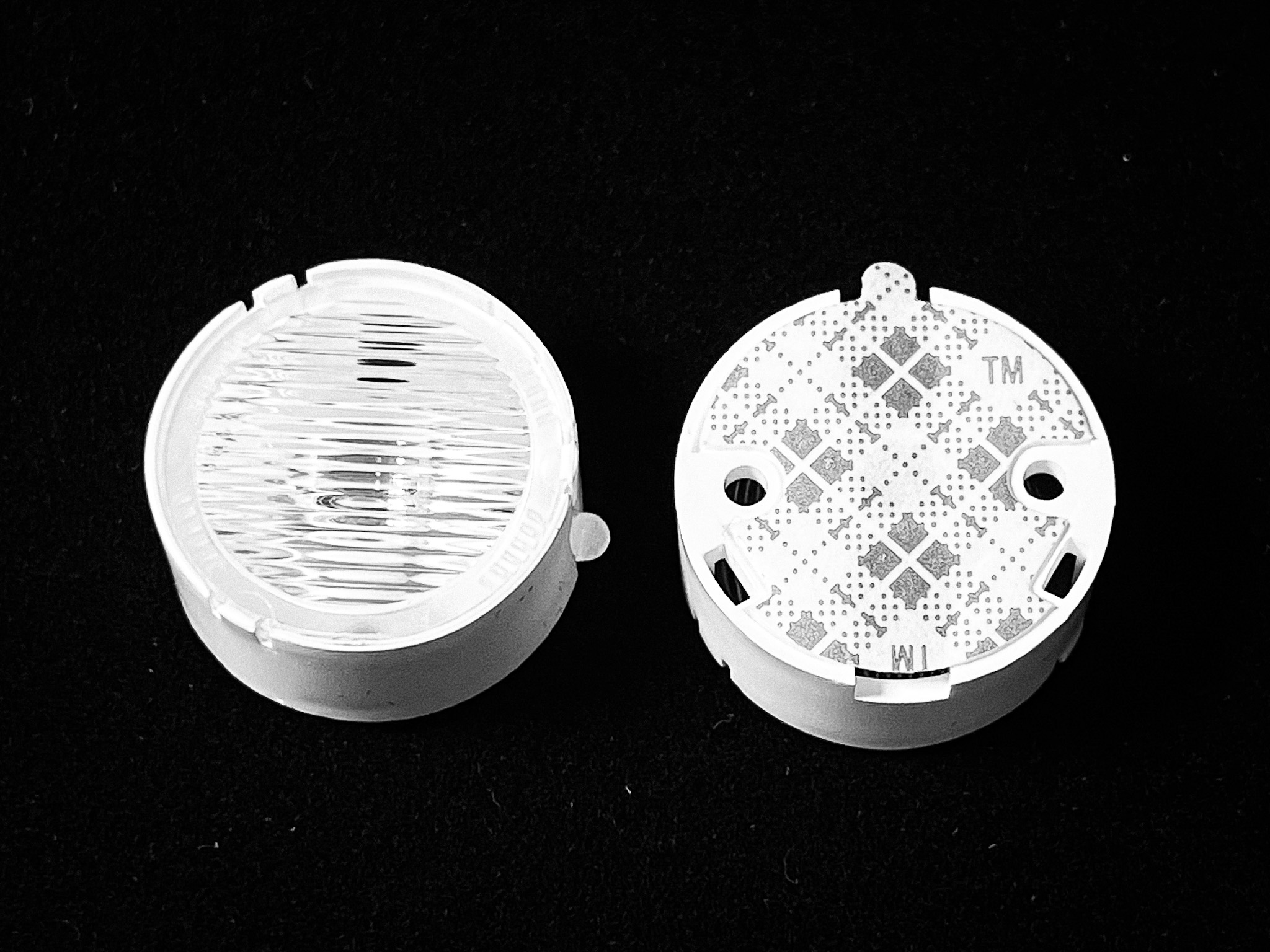

Single Lens 22.4mm with Narrow Height 9.63mm + Tape 30x65°


  • Model: AJS22D9H3065G-TAPE
  • Diameter: 22.4mm
  • Height: 9.63mm
  • Angle: 30°x65°
  • Material: PMMA
  • Transmittance: >93%
  • LED Applications: "3535""5050" LED
  • Single lens with holder 22.4mm*9.63mm is available with Tape assembly
  • The Narrow height is specially customized for narrow linear wall washer lighting modules.
  • The beam angle range is very complete to meet the different lighting application.

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.

Our Services

  • Innovative in LED Optical Engineering and Manufacturing Services
  • Quick response (Quick-turn of new development)
  • Strong R&D Team (Excellent engineering team with 10 years of experience), committed to bringing our customers the best LED optical designs.
  • Production (Advanced equipment, Tooling dimensional accuracy is within 0.01mm, Optical finishing accuracy is within 0.001mm, Tolling lifetime can reach 500,000 shots.)
  • Marketing (Wide range of products)
  • One-stop service for private mold optics design, and mass production.
  • Services (Thorough and satisfactory before & after-sales service)
Production Lead Time

10~15 days
