LED Batten - PC Linear LED Light

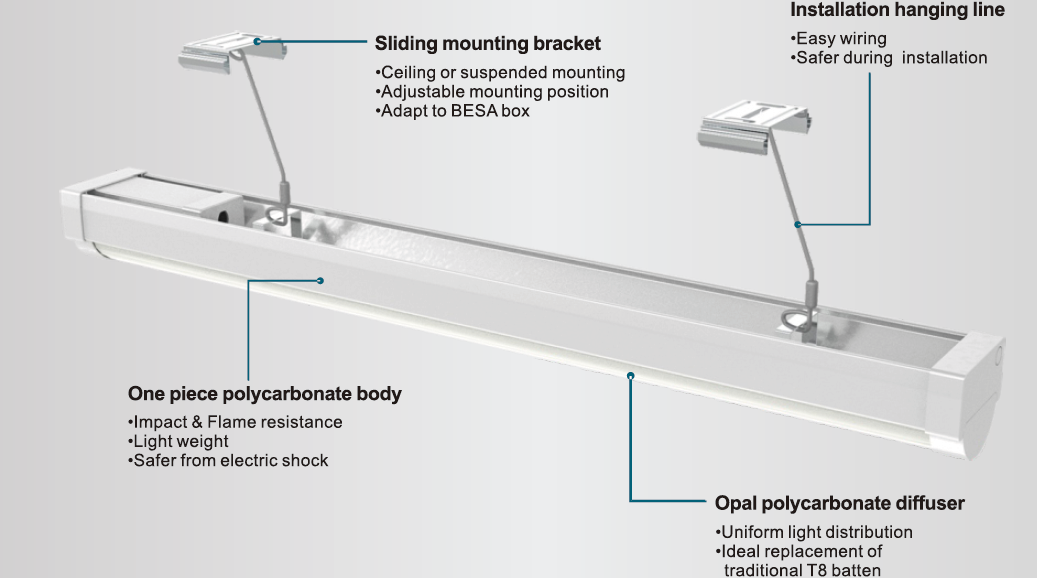

- BESA box installation
- One-man operation with suspension kits
- End cap with 20mm knock-out for side wire entry
- Strong and elegant shape.
- Soft and uniform light.
- Long life span 30,000Hrs.
- High lumen maintenance.
- Optional Luminous efficiency 70lm/W,80lm/W,100lm/W,120lm/W.
- Excellent heat dissipation capability,fire resistant.
- Durable integrated plastic body, safety.
- Low surface temperature < 65Deg
- Optional for surface mounting or pendant mounting.
- Optional bracket for terminal box or direct wiring.
- THD <=10%
- No Flickering
- Anti-UV
- Anti-impact IK08
- PATENTED invention
- 3 CCT ambient changing, 3000K, 4000K, 6500K in one lamp, less SKU, wise for logistics and warehousing
- Microwave options
- Backup 3 hours for emergency optional

Model No. | Watts | Efficiency
| Voltage | CCT | PF | Material | Lifetime | Dimension
|
P6255-18 | 18W | 70-120 lm/W | 100-240V, 220-240V, 175-265V
| 3000K-6500K | 0.5/ 0.9 | Full PC | 30,000hrs | 600*62*55mm |
P6255-40 | 40W | 1200*62*55mm |
P6255-50 | 60W | 1500*62*55mm |
P6255-75
| 75W | 1800*62*55mm |
Production Lead Time
30 days
