Product Specification
Is Dimmable
Yes
Material
FPC board, LED chips, resistance
Model No.
MS-LCOBX-512-12W-24V-08F0-90
Feature
Linear lighting with uniform luminace
Size
length: 5meter, PCB width 8mm
Light Source
LED
Customised
Yes
Product Description
Product Features:
- 512 LEDs per meter bonded on the FPC board.
- Linear lighting, without light spot, soft and uniform luminance
- Ra>80/90 with excellent color rendition effect
- ERP energy efficiency
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
- 5 years warranty
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous Efficacy | Luminance Flux | Beam Angle | PCB Layer |
|---|---|---|---|---|---|---|---|---|---|---|
| MS-LCOB30-512-12W-24V-08F0-90 | 512 | 24V | 12W | <3 | 90 | 3000K | 80lm/W | 960lm | 140° | Double Copper |
| MS-LCOB40-512-12W-24V-08F0-90 | 512 | 24V | 12W | <3 | 90 | 4000K | 90lm/W | 1080lm | 140° | Double Copper |
| MS-LCOB65-512-12W-24V-08F0-90 | 512 | 24V | 12W | <3 | 90 | 6500K | 95lm/W | 1140lm | 140° | Double Copper |

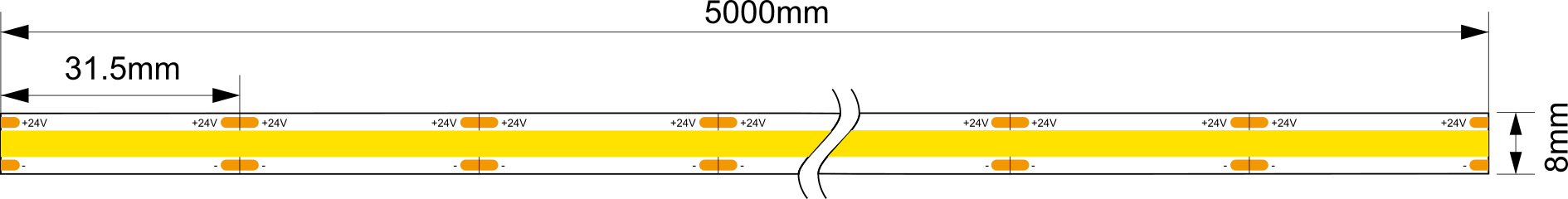

Product Dimension:
24V:
