LED
JY-3315_3316
JINYI
Yes

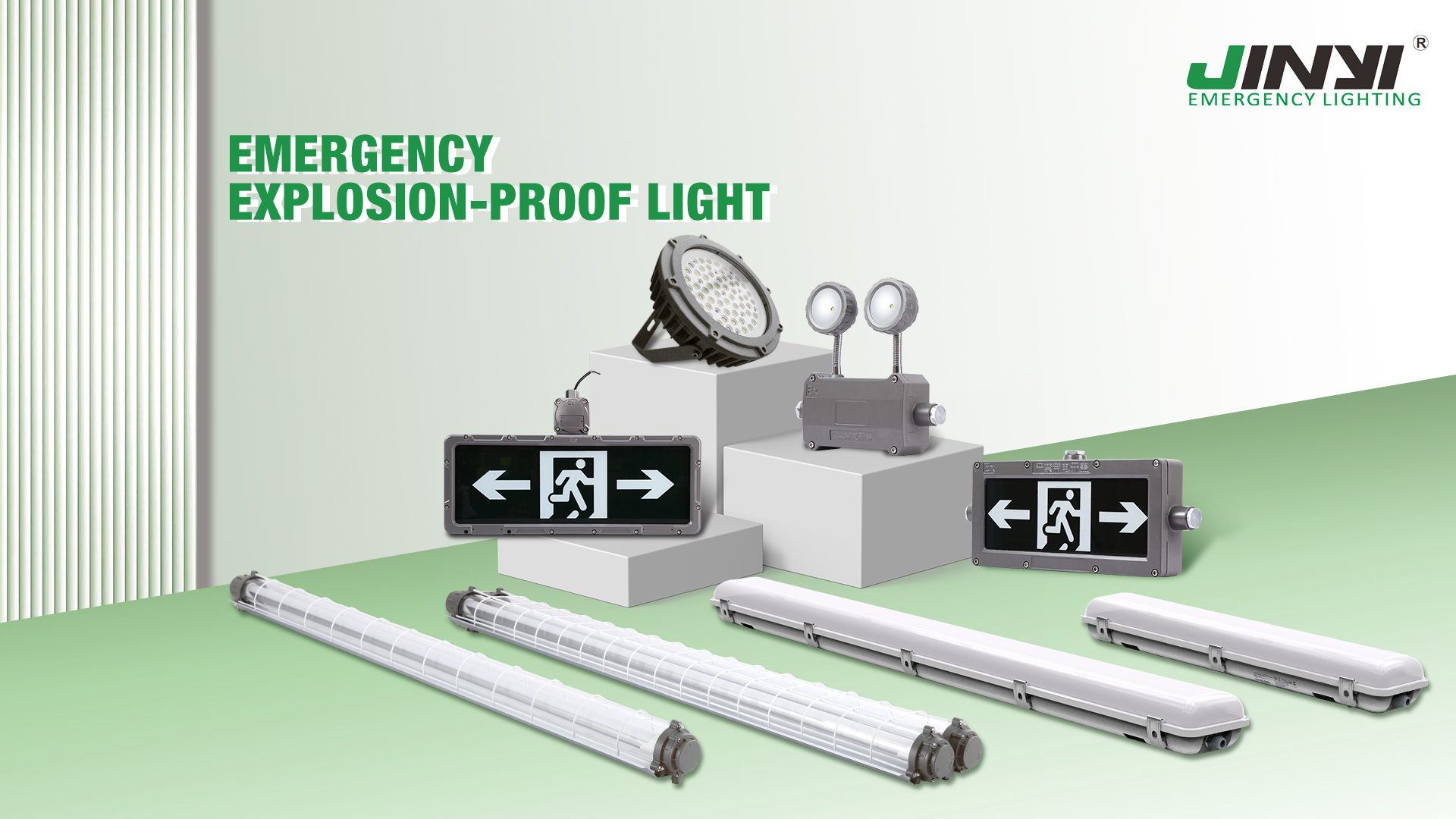

Explosion-proof exit sign
Die Casting Aluminum / Glass
YES
FEATURES:
SPECIFICATION
Model | JY-3315 |
Input Voltage | 198-264Vac |
Rated Voltage | 230Vac |
DC Power | 4W |
Battery capacity | 6.4V 2000mAh LiFePO4 |
Emergency Duration | 180min |
Charge Time | 24Hours |
Operation | Maintain |
IP Rating | IP67 |
Operating Temperature Range | 0℃~+50℃ |
Explosion-proof grade | Exeb ib mb IIC T6 Gb;Ex tb IIIC T80℃ Db |
Quality Guarantee | Power pack50000H@Ta full load(not include battery) |
Mounting | Wall mounting |
Size | 575*62.8*340.5mm |
Certification | 3C |
RoSH | YES |
Here's the application scope for explosion-proof exit signs:
Hazardous Industrial Sites: Used in chemical plants, oil refineries, and gas stations where flammable gases or dust are present.
Mining Operations: Deployed in underground mines to guide safe evacuation in explosive atmospheres.
Marine Environments: Applied on offshore platforms and ships handling combustible materials.
Manufacturing Facilities: Installed in factories processing volatile substances, ensuring emergency visibility.
Warehouses: Utilized in storage areas for hazardous chemicals or fuels to mark escape routes.
Emergency Response Areas: Employed in high-risk zones requiring reliable evacuation signage during power outages or explosions.
25 days
