FleXCite Series - Grille Anti-glare Dual-Bend NS-619

General Lighting Innovation Limited

Hong Kong

Booth: 5B-E20 | LED Lighting |

Product Specification

CCT/Wavelength

2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K

Style

Dual-Bend (White) 3-sided black

Voltage

DC24V

Increment

Free-cutting to be any Length

Part No.

NS-619DX24VAW-14-1616AG

Brightness@4000K&CRI90

450lm/M [137lm/ft.]

Dimension

L5000xW16xH16mm [L197xW0.63xH0.63in.]

IP&IK Rating

IP67 [Wet] (End cap sealed by die-casting process)/IP54 [Damp] (End cap sealed by gluing process)&IK06

Light Efficiency@4000K&CRI90

32lm/W

LED Qty

120LED/M [36LED/ft.]

Beam Angle

110° & 45°

LED Type

SMD 2835

Power

14W/M [4.27W/ft.]

Max. Run Length&Max. Shipping Length

5M [16.4ft.] (Power fed on one side) & 5M [16.4ft.]

Product Description

Features
-

1. Dual-bend is available to fix many plane, curved, and complex irregular structures at will.

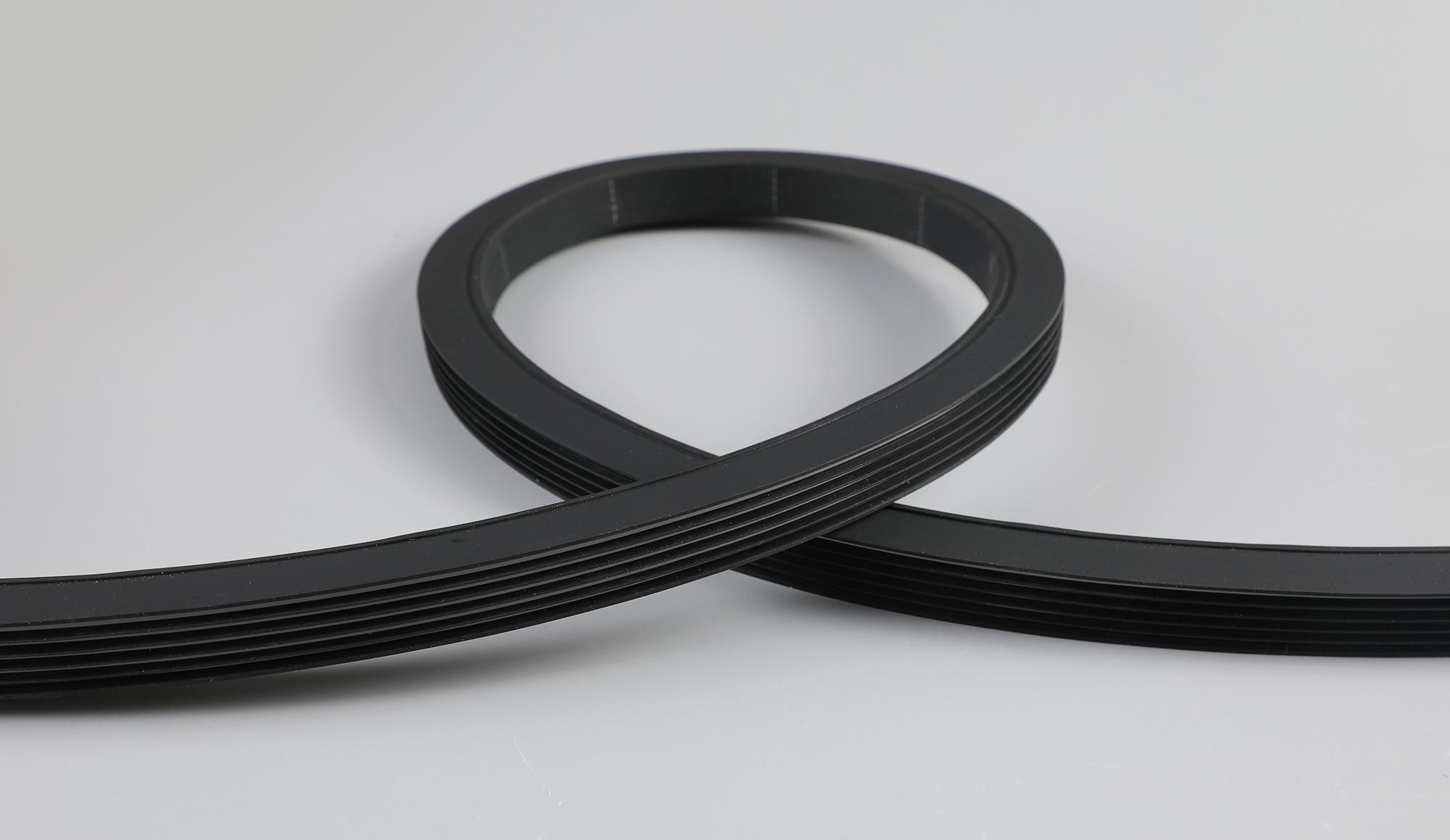

2. Noble and elegant appearance in black jacket with dust-proof coating.
3. Anti-glare effect with grille cover design with narrow beam angle.
4. On-site processable to be any length with the free-cutting feature.
5. Uniform, dot-free, and smooth lighting performance up to 5M[16.4ft.].
6. Dimmable available with PWM signal.
7. Environmentally friendly, high-grade appearance, soft bend flexibility, strong impact resistance, and high weather resistance using food-grade silicone material.
8. IP67 and IK06 for both indoor and outdoor usage.
9. 50,000h LED lifespan, 5 years warranty, CE & UL approval.

Details
-

Application

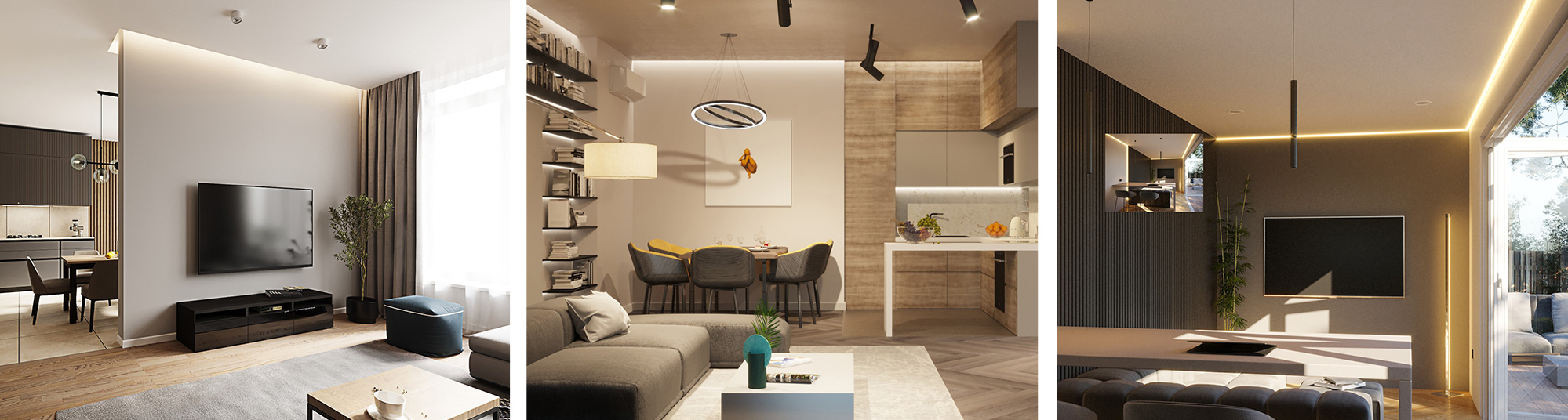

1.Ideal for luxurious decorative, cove, and landscape lighting applications.
