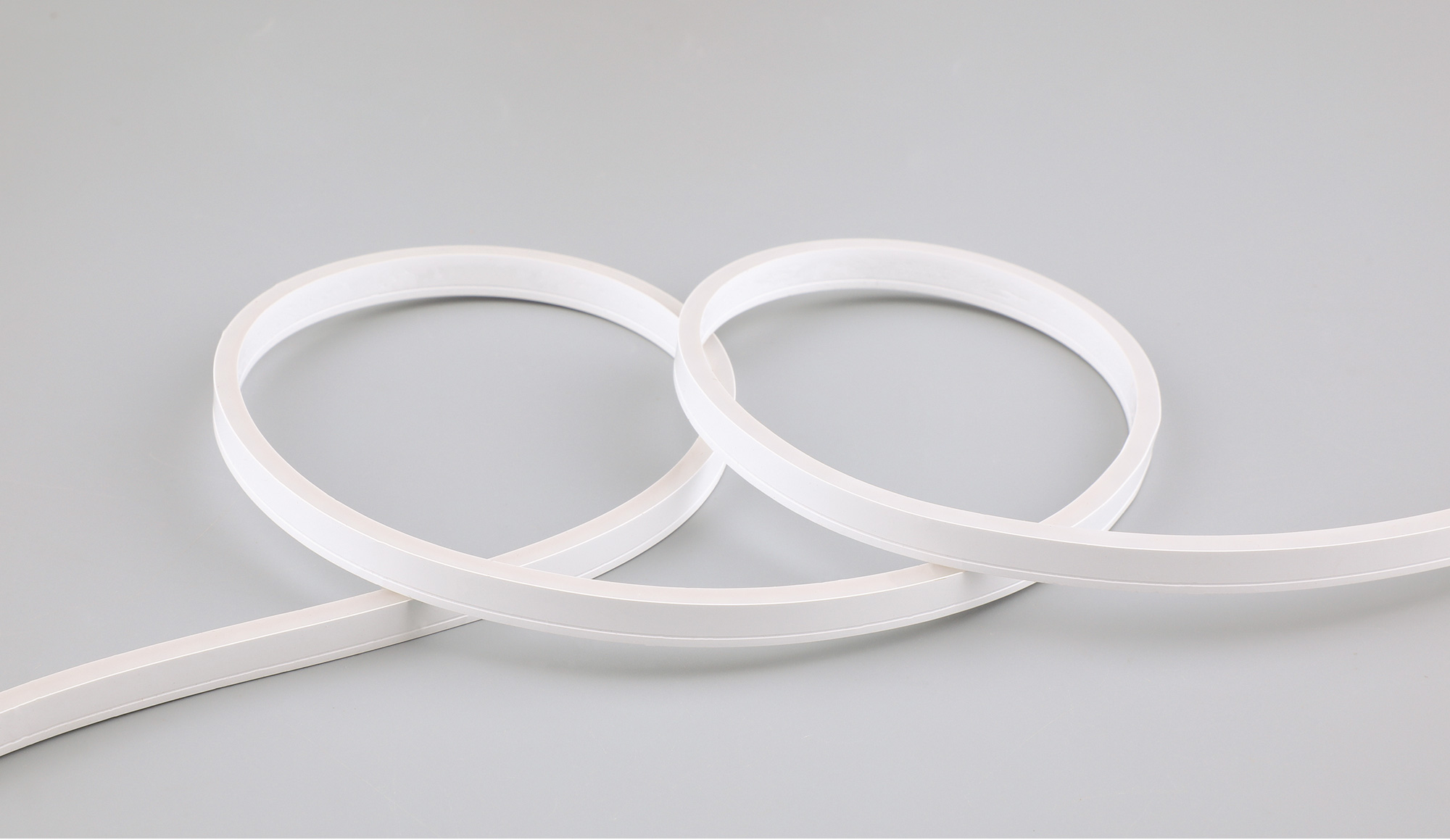

Slight Series - Side-Bend - NS-211-0408FC

General Lighting Innovation Limited

Hong Kong

Booth: 5B-E20 | LED Lighting |

Product Specification

Beam Angle

120°

IP&IK Rating

IP54 [Damp]

Max. Run Length&Max. Shipping Length

3M [9.84ft.]@12VDC 5M [16.4ft.]@24VDC&30M [98.4ft.]

Dimension

W4xH8.5mm [W0.16xH0.33in.]

Increment

Free cutting to be any length

Light Efficiency@4000K&CRI90

22lm/W

LED Qty

240LED/M [73LED/ft.]

Part No.

NS-211SX12VEW-09-0408FC/NS-211SX24VEW-09-0408FC (without trim)

Brightness@4000K&CRI90

200lm/M [61lm/ft.]

Style

Side-Bend (White)

Voltage

DC12V/DC24V

Power

9W/M [2.74W/ft.]

LED Type

SMD 2216

CCT/Wavelength

2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K

Product Description

Features
-

1. Super flexible bending performance with ultra-slim size.
2. Plane profile supports flush mounting in the groove of furniture.
3. Uniform, dot-free, smooth and comfortable lighting up to 5M [16.4ft.] run length.
4. On field cuttable and assembly to be any length.
5. IP54 for indoor usage.
6. Dimmable available with PWM signal.
7. Compared with traditional fragile glass and harden/yellowing easily PVC sheathing material, silicon extrusion technology is an advanced process, with high-efficiency production capacity and environmentally-friendly characteristics. Additionally, with high grade appearance, soft bend flexibility, strong impact resistant and high weather resistance.
8. 50,000h long lifespan, 5 years warranty, for indoor usage.
9. CE & UL approval.

Details
-


Application

1. Ideal for furniture, cabinet, and display lighting in residential and commercial.
