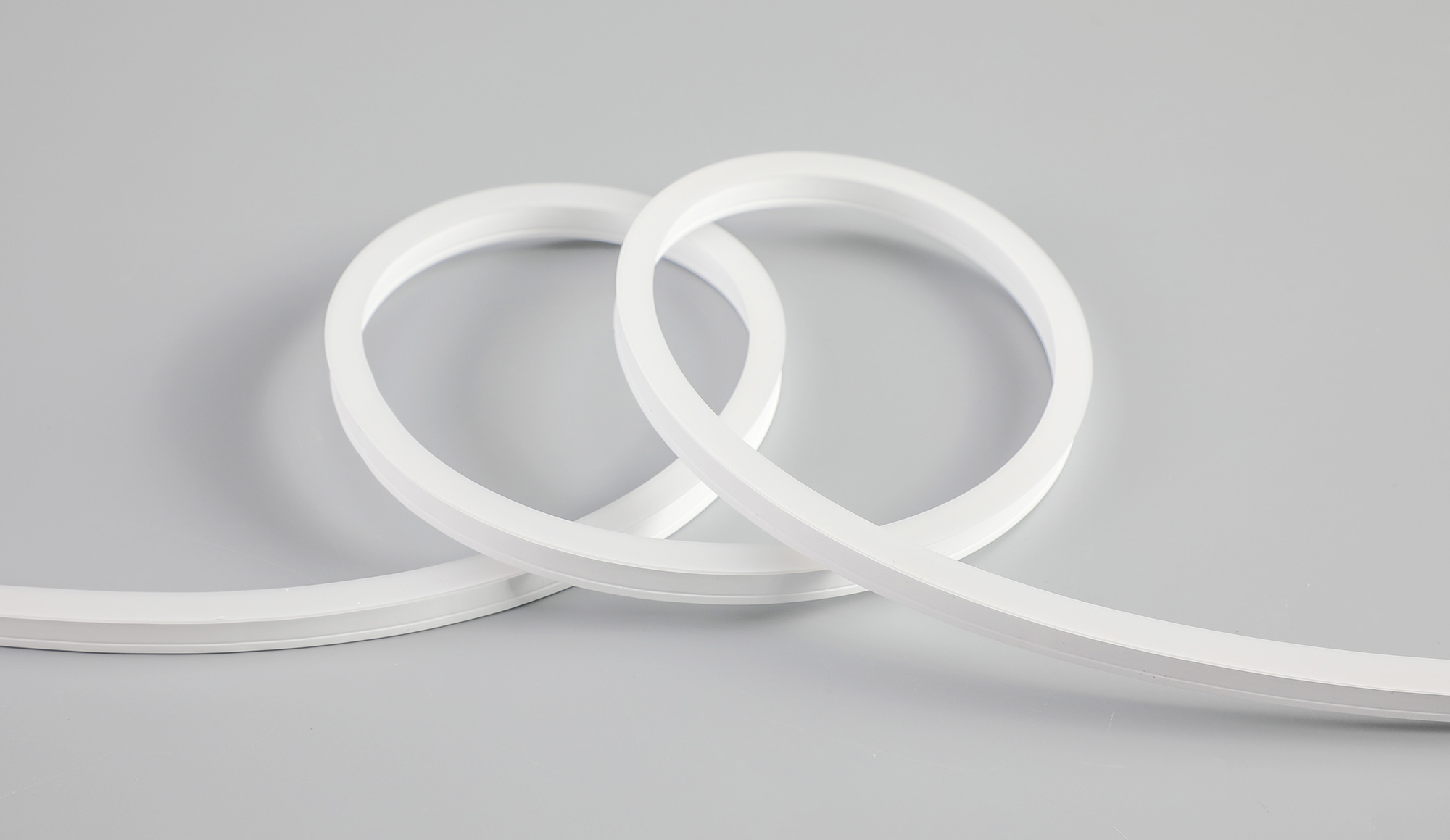

Slight Series - Side-Bend - NS-233-0608FC

General Lighting Innovation Limited

Hong Kong

Booth: 5B-E20 | LED Lighting |

Product Specification

Style

Side-Bend (White)

Power

9W/M [2.74W/ft.]

IP&IK Rating

IP54 [Damp]

Part No.

NS-233SX24VEW-09-0608FC (with translucent trim)

CCT/Wavelength

2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K

Max. Run Length&Max. Shipping Length

5M [16.4ft.]&30M [98.4ft.]

LED Qty

240LED/M [73LED/ft.]

Voltage

DC24V

LED Type

SMD 2216

Light Efficiency@4000K&CRI90

35lm/W

Dimension

W6xH8.5mm [W0.24xH0.33in.]

Brightness@4000K&CRI90

315lm/M [96lm/ft.]

Beam Angle

120°

Increment

Free cutting to be any length

Product Description

Features
-

1. Super flexible bending performance with ultra-slim size.
2. Plane profile supports flush mounting in the groove of furniture.
3. Uniform, dot-free, smooth and comfortable lighting up to 5M [16.4ft.] run length.
4. On field cuttable and assembly to be any length.
5. IP54 for indoor usage.
6. Dimmable available with PWM signal.
7. Compared with traditional fragile glass and harden/yellowing easily PVC sheathing material, silicon extrusion technology is an advanced process, with high-efficiency production capacity and environmentally-friendly characteristics. Additionally, with high grade appearance, soft bend flexibility, strong impact resistant and high weather resistance.
8. 50,000h long lifespan, 5 years warranty, for indoor usage.
9. CE & UL approval.

Details
-


Application

1. Ideal for furniture, cabinet, and display lighting in residential and commercial.
