产品规格
材料
FPC board, LED chips, resistance
尺寸
length: 25/50/100meter, PCB width 10mm
光源
发光二极管照明
型号编号
MS-LCOBX-504-6W-48V-10F0-90
特性
Linear lighting with uniform luminace, super long working
是否可订造
可以
可调亮度
是
产品简介
Product Features:
- 504 LEDs per meter bonded on the FPC board.
- Linear lighting, without light spot, soft and uniform luminance
- Ra>80/90 with excellent color rendition effect
- ERP energy efficiency
- Super long working, 30 meters lighting only one end power; 50 meters lighting when two ends power
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
- 5 years warranty
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous Efficacy | Luminance Flux | Beam Angle | PCB Layer |
|---|---|---|---|---|---|---|---|---|---|---|
| MS-LCOB30-504-6W-48V-10F0-90 | 504 | 48V | 6W | <3 | 90 | 3000K | 80lm/W | 480lm | 140° | Double Copper |
| MS-LCOB40-504-6W-48V-10F0-90 | 504 | 48V | 6W | <3 | 90 | 4000K | 90lm/W | 540lm | 140° | Double Copper |
| MS-LCOB65-504-6W-48V-10F0-90 | 504 | 48V | 6W | <3 | 90 | 6500K | 95lm/W | 570lm | 140° | Double Copper |

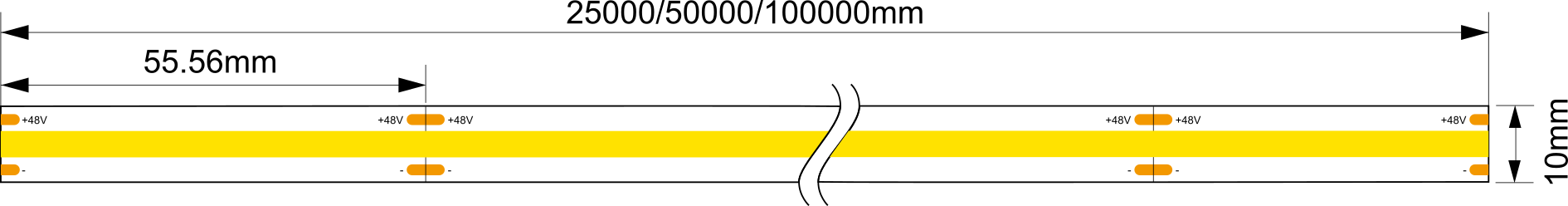

Product Dimension:
48V:
