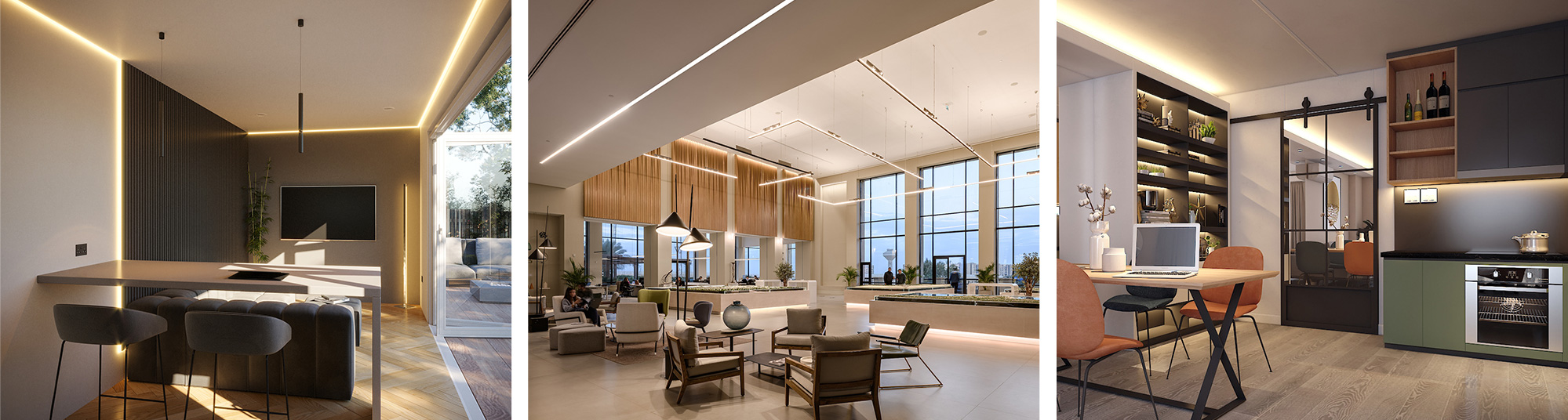

Application
Indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, cove, theatre, lift etc.

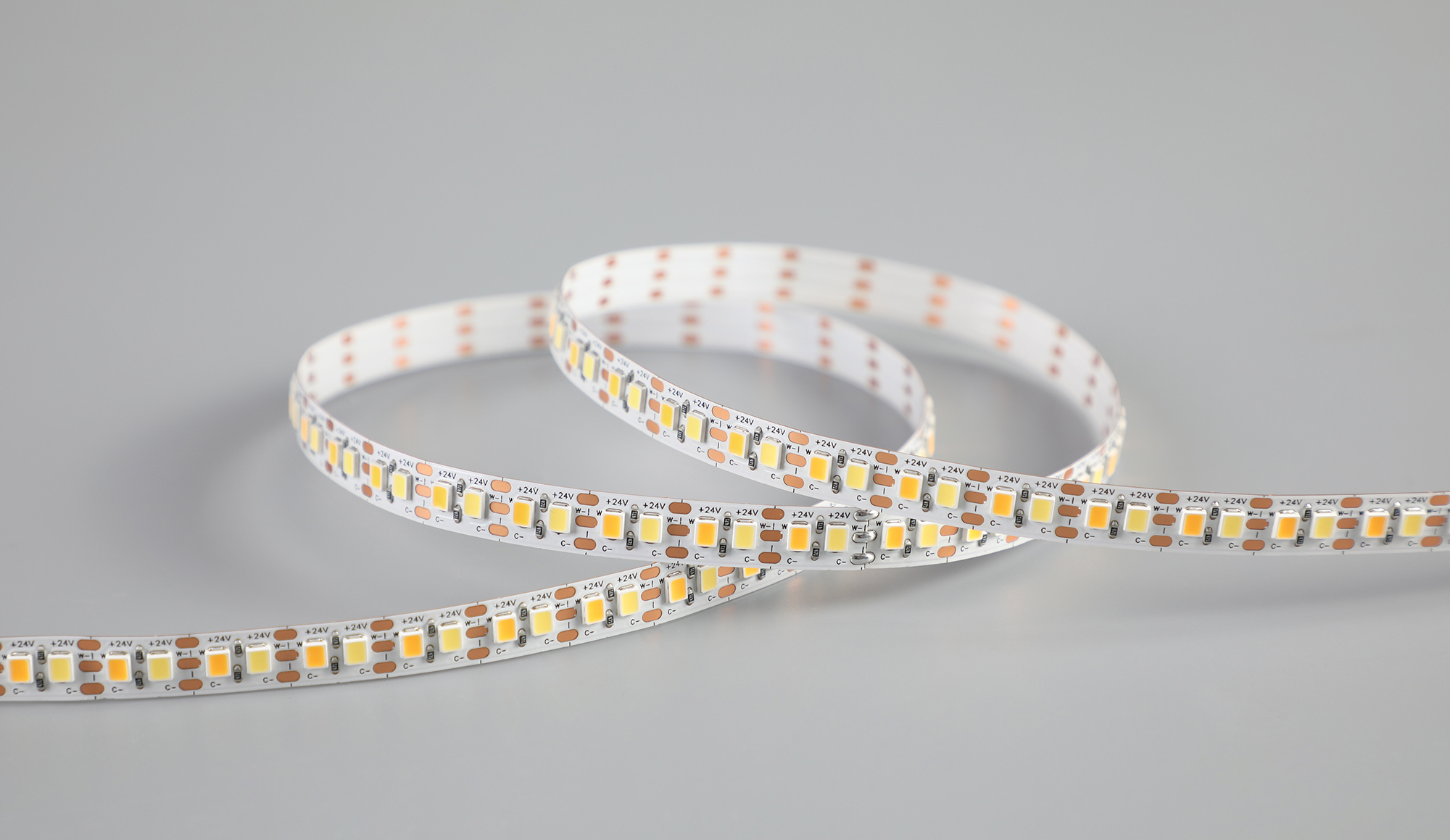

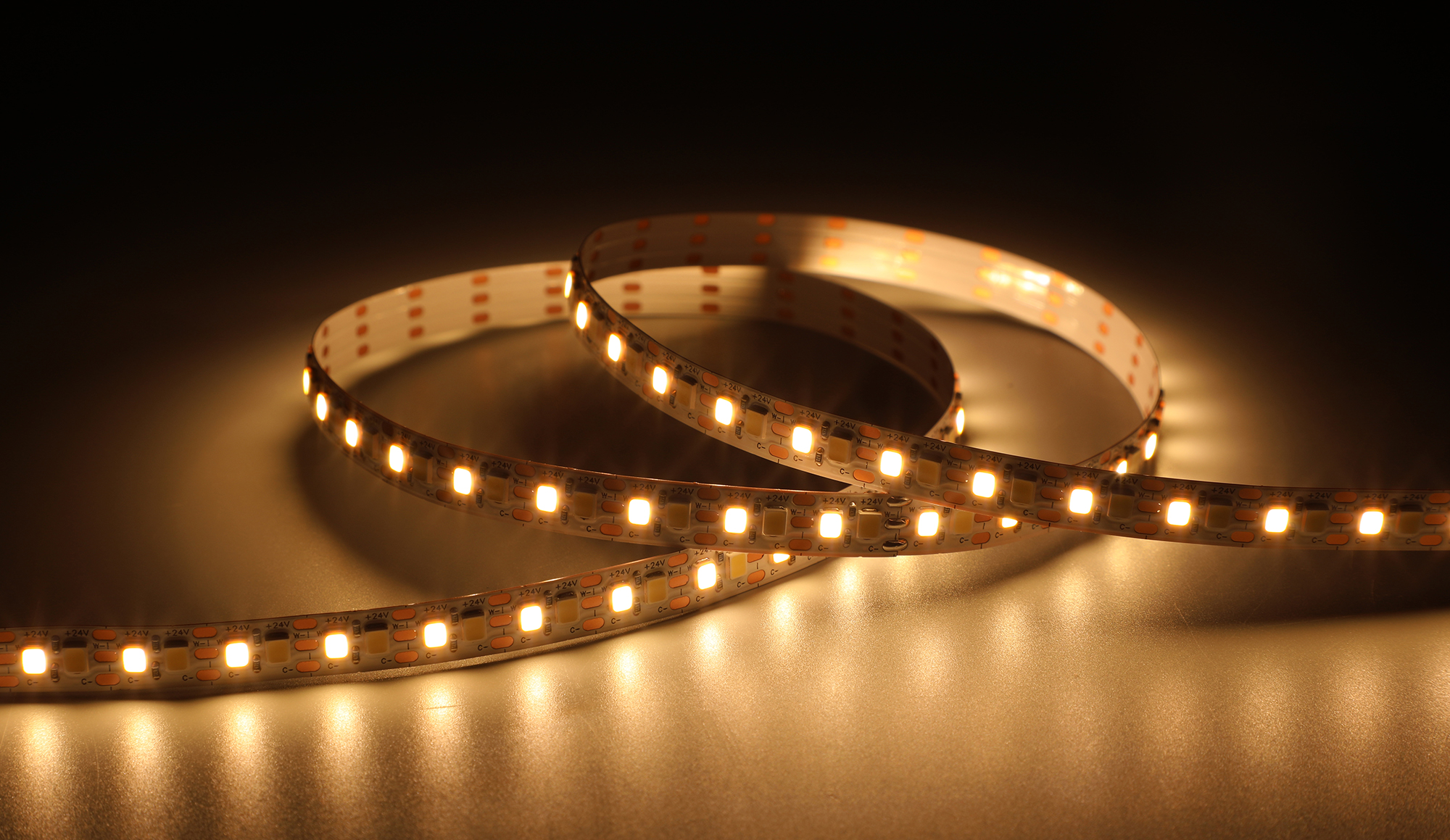

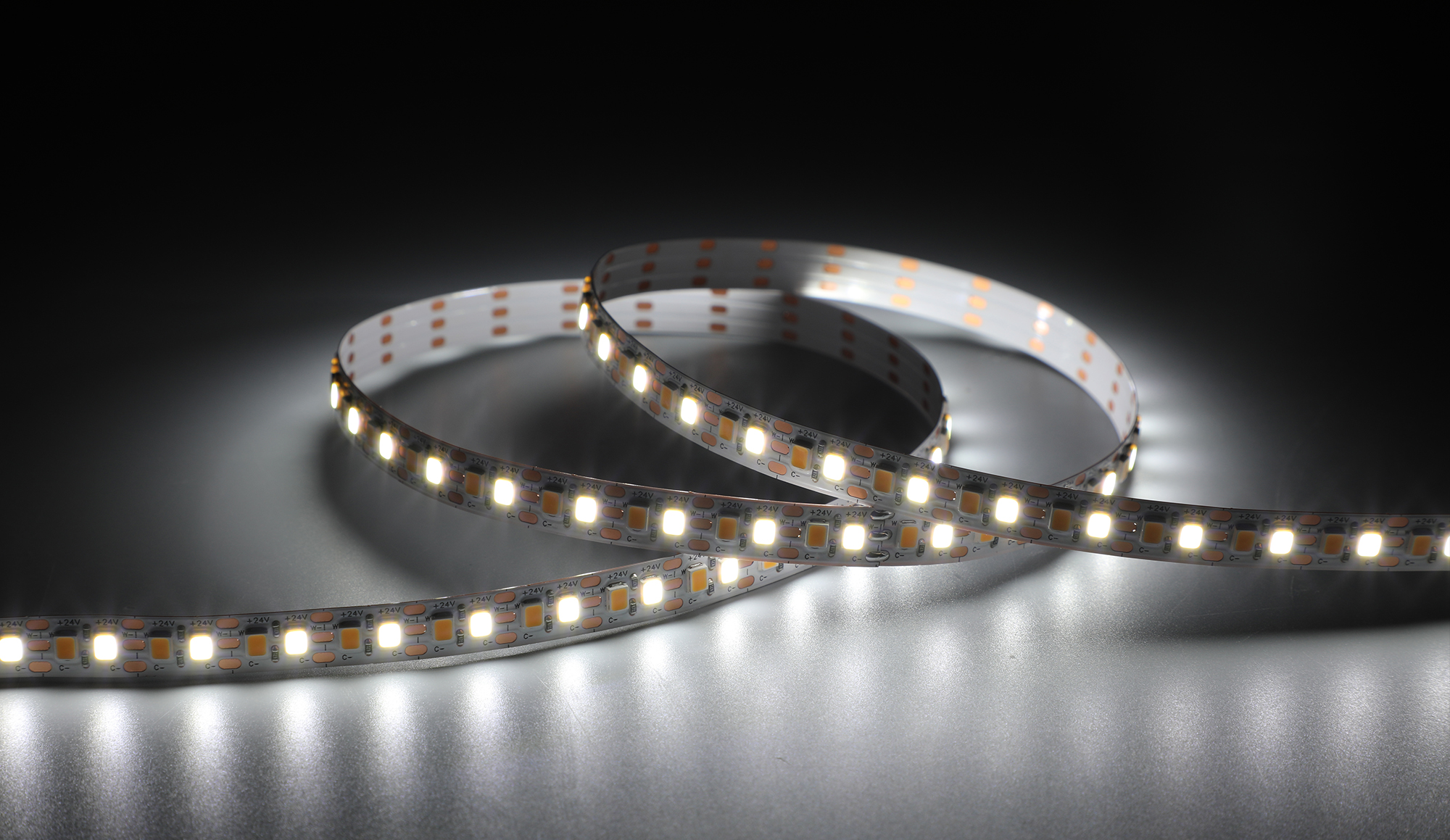

High-Efficacy Free-Cutting Series - CCT 130lm/W 24V 180LED/M - 9678
香港
展位编号: 5B-E20 | LED照明 |
产品规格
Beam Angle
120°
CCT/Wavelength
2700~6500K CCT-Tunable
LED Qty
180LED/M [55LED/ft.]
Increment
11.1mm [0.44in.] (The minimum length for use is 11.1mm[0.44in.] with 2 LEDs)
LED Type
SMD 2835
Light Efficiency@CRI90&4000K
130lm/W
Part No.
GL-N2835XX-24-CV-180-9678
Brightness@CRI90&4000K
2340lm/M [713lm/ft.]
Power
18W/M [5.5W/ft.]
Voltage
24VDC
IP Rating
IP20/IP54 Thin/IP65/IP67/IP68/IP54 Plus/IP67 Plus [Dry/Damp/Wet]
Dimension
L5000*W8*H1.5mm [L197*W0.31*H0.06in.]
产品简介
Features
-
-
1. Field cuttable per one LED to be any length for precise assembly.
2. High efficacy up to 130lm/W in CRI90 with energy efficiency class in E.
3. Universal PCB width for perfect installation with aluminum profile.
4. High density of LED array for dot-free linear lighting performance.
2. High efficacy up to 130lm/W in CRI90 with energy efficiency class in E.
3. Universal PCB width for perfect installation with aluminum profile.
4. High density of LED array for dot-free linear lighting performance.
Details
-
-
