Surmountor
Proximity Hand Sensor ON/OFF
urn on/off the led light when hand pass over the sensor within 18cm
For Extruded Led Aluminum Profile, Led lighting
PS001
可以
PCB+Electronics components
W10*L55mm

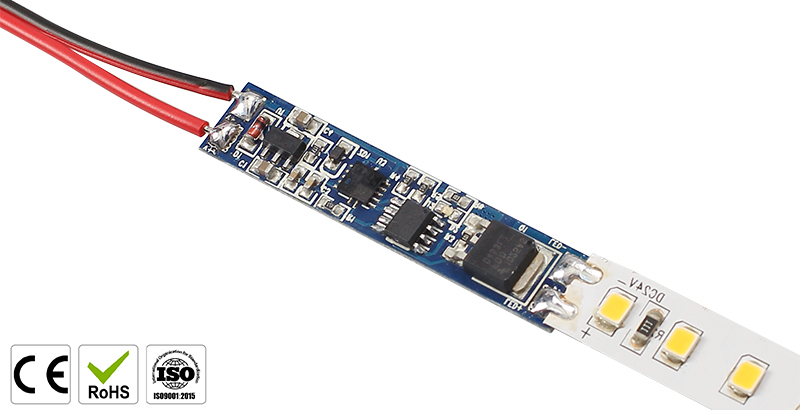

PS001 Touchless Proximity On/Off Hand Sensor Switch Proximity Sensor for Led Lighting
Proximity Sensor PS001
| Item | Parameters | Item | Parameters |
|---|---|---|---|
| Input Voltage | 12 V ~ 24 VDC | Diamesion | 10 * 55 mm |
| Current | Max. 8 A | Load. | 96w for 12v, 192w for 24v |
| PCB thickness | 1.3mm | Detective distance | ≤18cm |
| PS001 Proximity Sensor Switch | Function |
| Hand pass over the sensor switch within 10cm | The LED lighting 100% Brightness |
| Hand pass over the sensor switch within 10cm again | The LED lighting turn off |
Proximity Sensor PS001
The Proximity Switch (motion sensor) is designed to be used in LED Aluminum Profile. It is dedicated for switching LED lights “on”and “off” without the need of touching the switch. The Proximity switch operates based on an active reflective photocell. The cyclical device sends a string of infrared impulses and measures the strength of the reflected signal. When a hand is placed closer to the sensor the infrared impulses reflect from the hand and bounce back to the sensor. If the strength of the signal is maintained on the appropriate level, the output of the dimmer will reverse its state. The infrared light is emitted on a definite frequency as a result the dimmer is resistant to signals coming from other sources such as infrared remote controls, lamps or sunlight.
The bottom of the Proximity switch is equipped with tape that allows secure mounting of the switch and additionally cools down the switch when mounted into an extrusion.
Caution:
Avoid being exposed to the lamp or strong light outside the lamp.
Proximity Sensor installation instruction:
Connect wires to the input and output end of control PCB.
* We do not recommend installing the proximity switch above the stove top. Hot air can trigger the sensor.
* We do not recommend installing the proximity switch near curtains. Drafts of air can move the curtain and as a result trigger the sensor.
* Do not bend the base of proximity switch as it may damage the device.
* Switching the main power on/off will cause the lit LED fixtures operated by the proximity switch to be turned “off”.
Note : The function / program can be customize made upon different needs, such as longer time for staying on, etc.

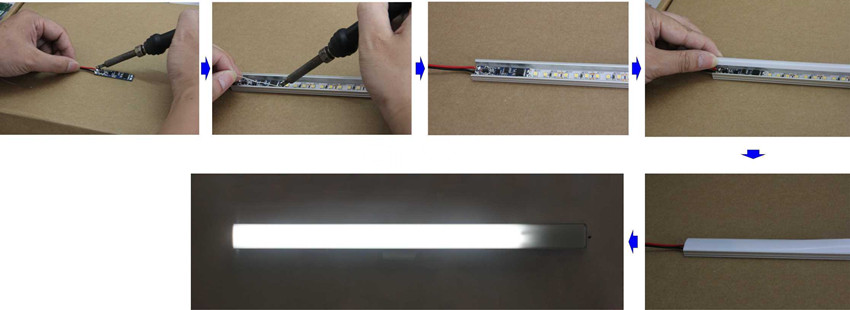

How to Install?

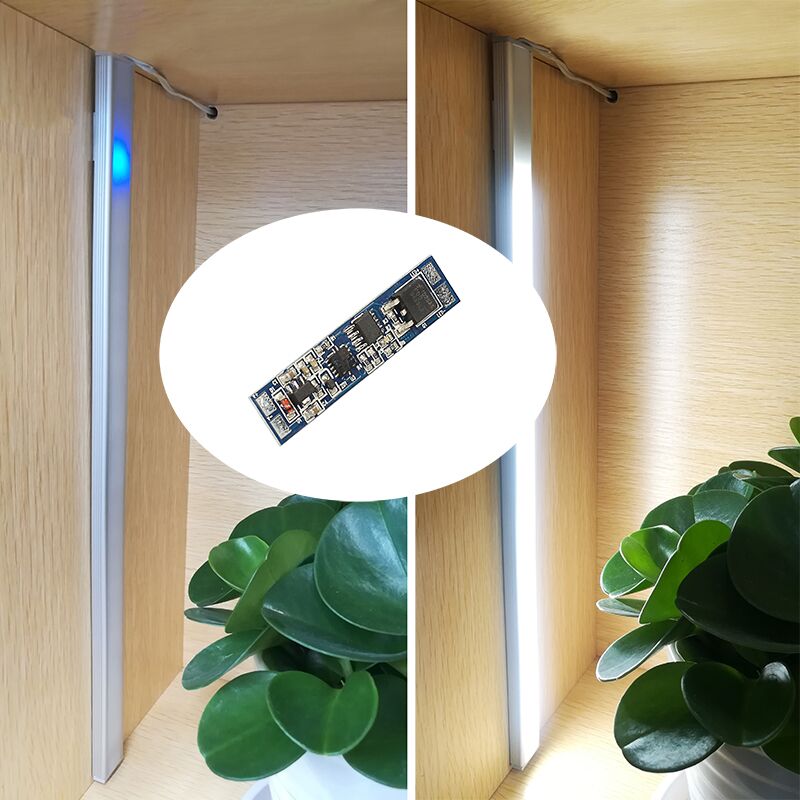

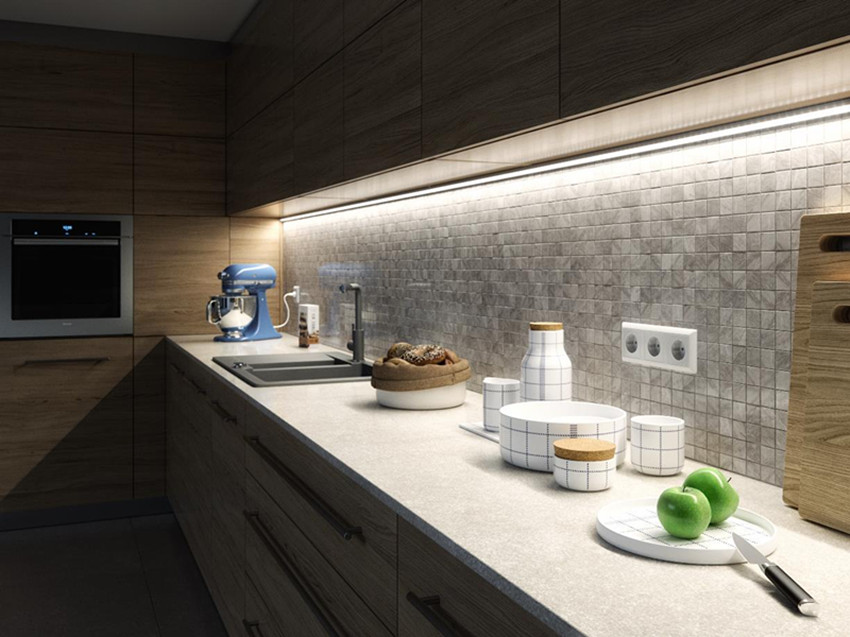

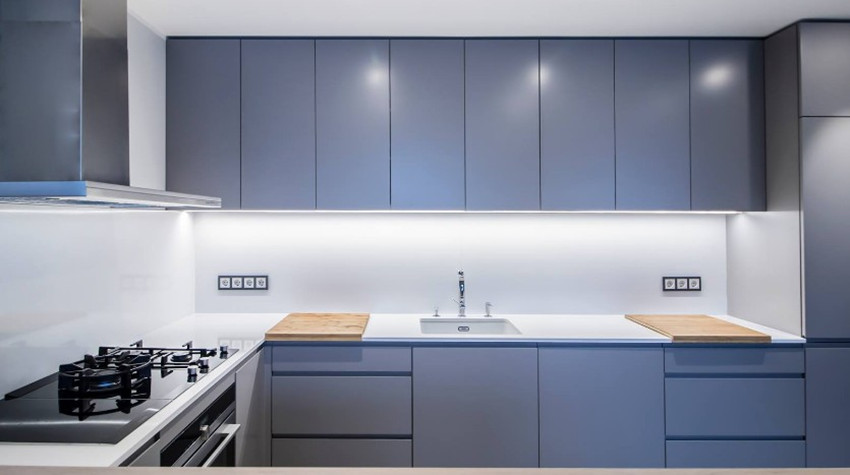

Application-PS001

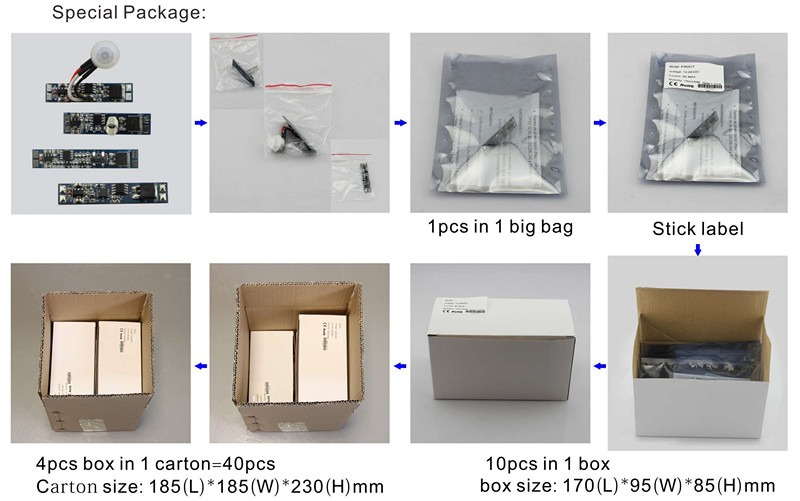

Packaging and Shipping

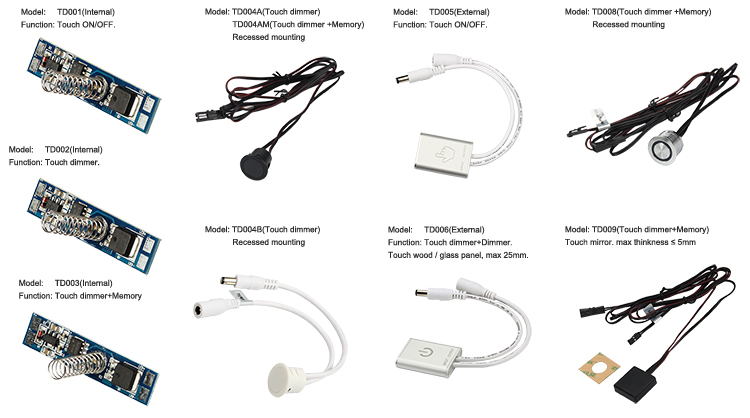

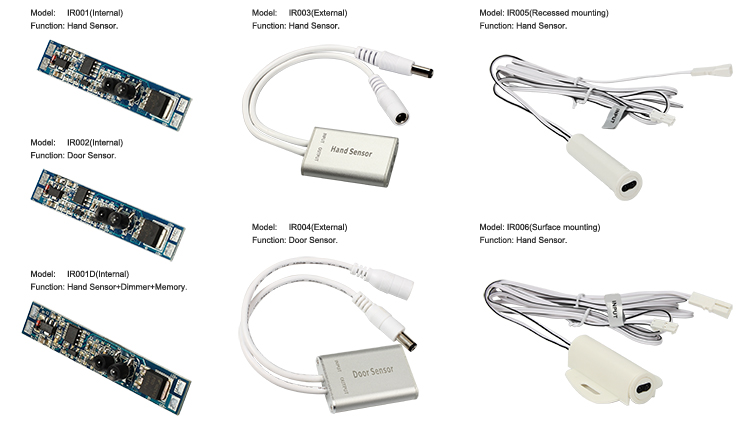

Other Relative Sensor
FAQ
Q1. Are you manufacture or trading company?
We are Manufacture with over 10 Years experience.
Q2.Do you accept OEM or ODM?
Yes,we have full experience for OEM & ODM.
Q3.What certificate do you have?
We have CE,RoHS,UL,ISO Certificate
Q4.Can I get samples.
Of course! Sample test is welcome before bulk order.
Q5.Can I do custom function?
Yes, MOQ need reach to 500 pcs.
Welcome to contact us for more details.
