產品規格
是否可訂造
可以
型號編號
MS-LCOBX-320-10W-12V/24V-08F0-90
特性
Linear lighting with uniform luminace
材料
FPC board, LED chips, resistance
可調亮度
是
光源
發光二極管照明
尺寸
length: 5meter, PCB width 8mm
產品簡介
Product Features:
- 320 LEDs per meter bonded on the FPC board.
- Linear lighting, without light spot, soft and uniform luminance
- Ra>80/90 with excellent color rendition effect
- ERP energy efficiency
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
- 5 years warranty
Product Specification:
All data are based on 1 meter IP20 strip
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous Efficacy | Luminance Flux | Beam Angle | PCB Layer |
|---|---|---|---|---|---|---|---|---|---|---|
| MS-LCOB30-320-10W-12/24V-08F0-90 | 320 | 12/24V | 10W | <3 | 90 | 3000K | 80lm/W | 800lm | 140° | Double Copper |
| MS-LCOB40-320-10W-12/24V-08F0-90 | 320 | 12/24V | 10W | <3 | 90 | 4000K | 90lm/W | 900lm | 140° | Double Copper |
| MS-LCOB65-320-10W-12/24V-08F0-90 | 320 | 12/24V | 10W | <3 | 90 | 6500K | 95lm/W | 950lm | 140° | Double Copper |
Product Dimension:

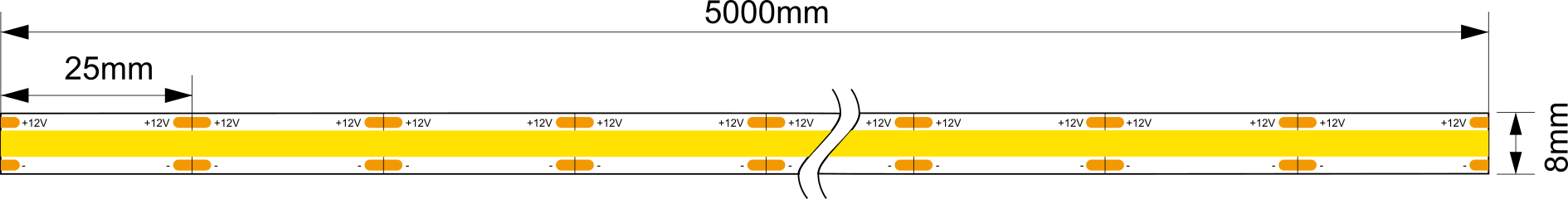

12V:

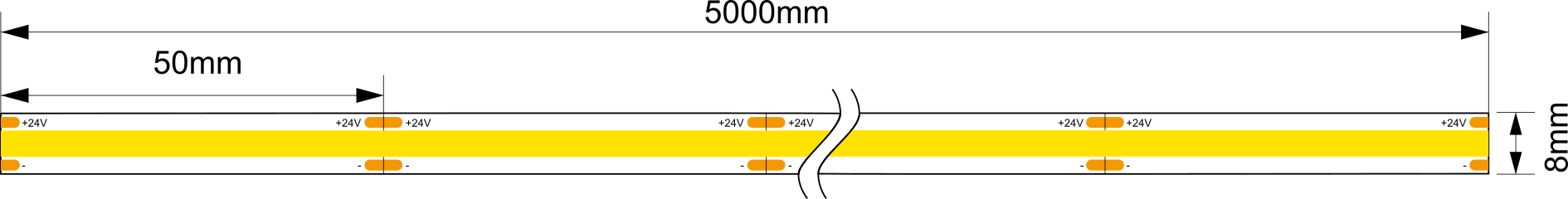

24V:
