Application
Indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, cove, theatre, lift etc.

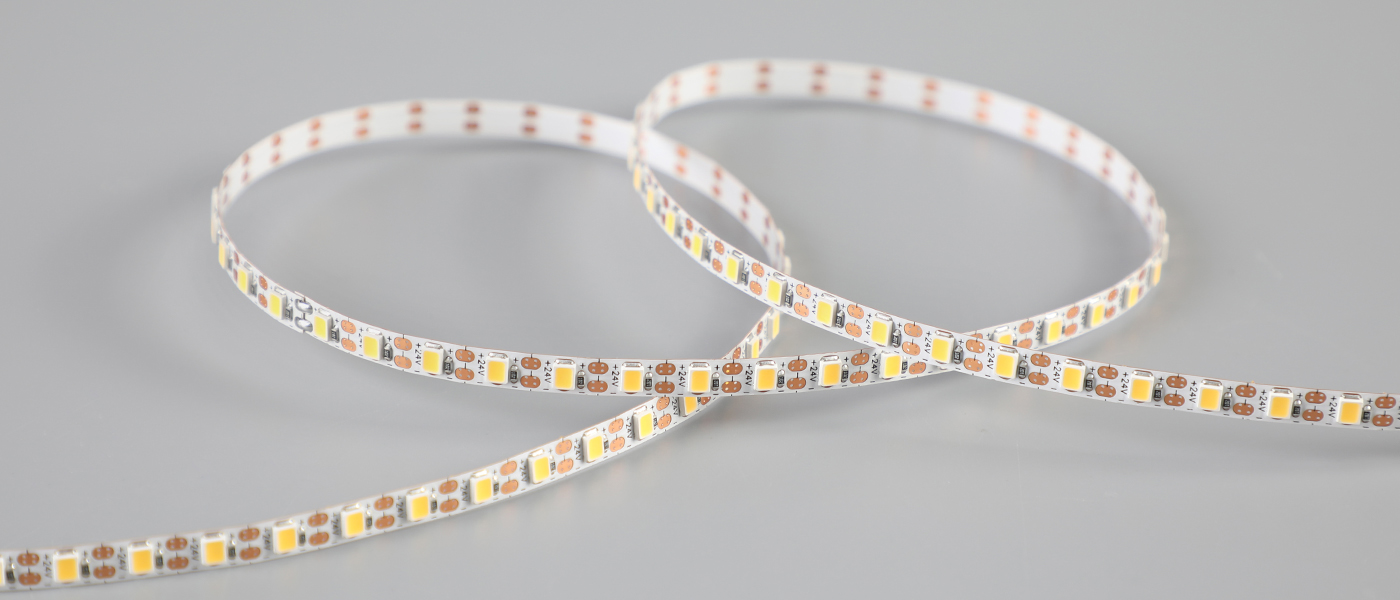

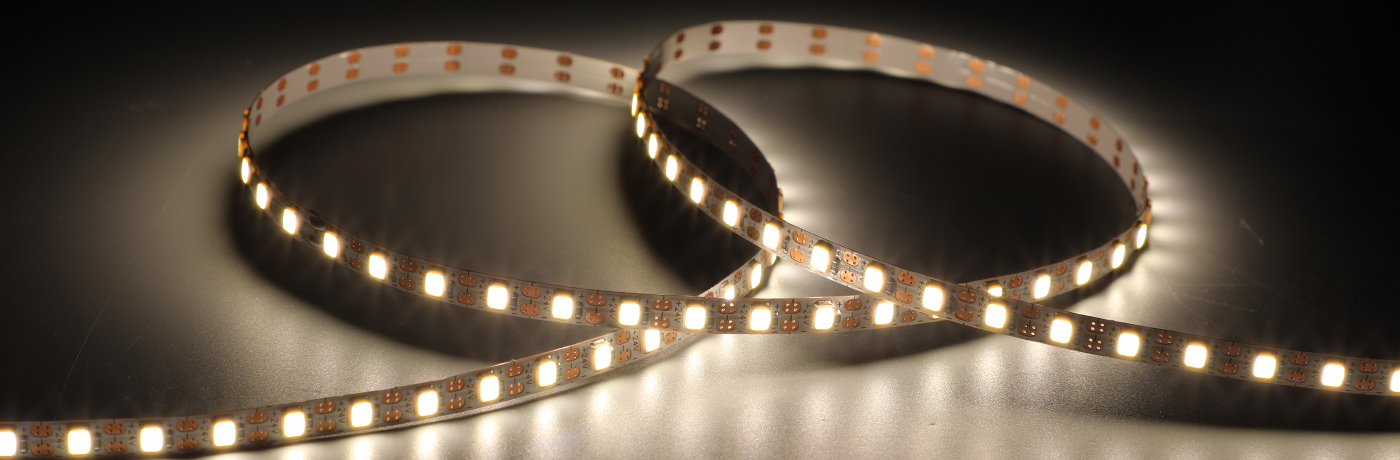

GL-N2835XX-24-CV-120-9681
1008lm/M [307lm/ft.]
140lm/W
2700/3000/3500/4000/5000/6500K (3 step in one bin)
L5000*W5*H1.5mm [L197*W0.2*H0.06in.]
7.2W/M [2.2W/ft.]
120LED/M [36LED/ft.]
IP20/IP65 [Dry/Wet]
24VDC
SMD 2835
120°
8.33mm [0.33in.] (The minimum length for use is 8.33mm[0.33in.] with 1 LED)
1. Field cuttable per one LED to be any length for precise assembly.
2. High efficacy up to 140lm/W in CRI90 with energy efficiency class in E.
3. Universal PCB width for perfect installation with aluminum profile.
4. High density of LED array for dot-free linear lighting performance.

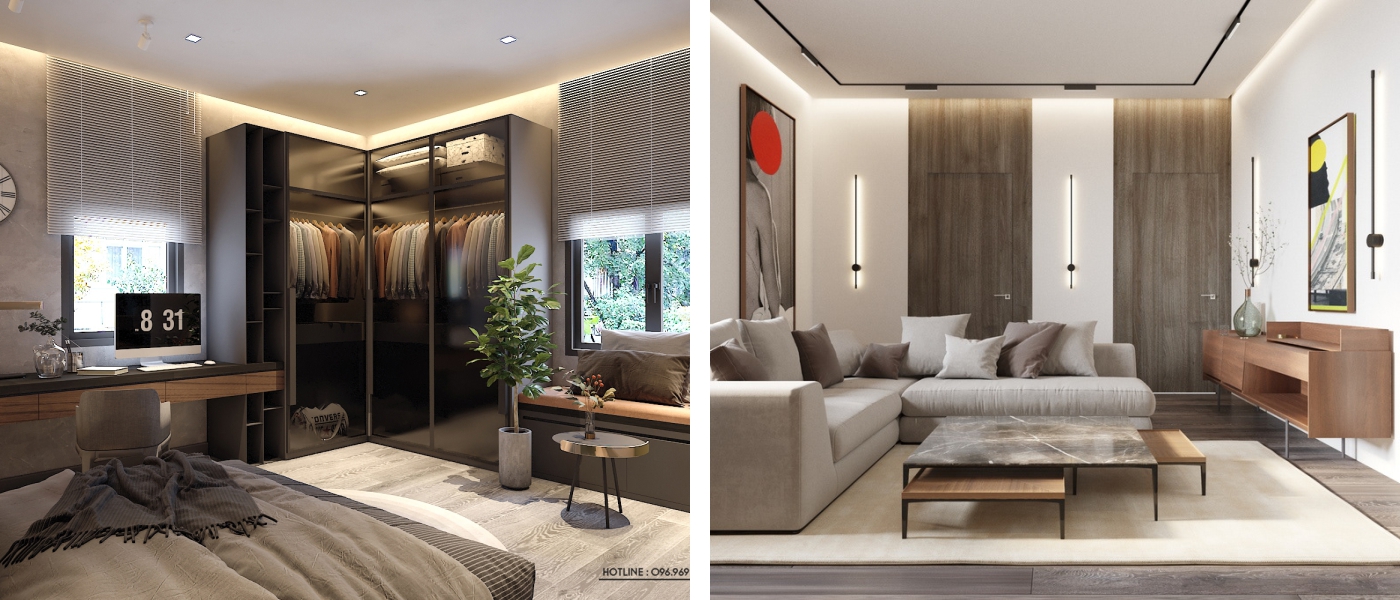

Application
Indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, cove, theatre, lift etc.
