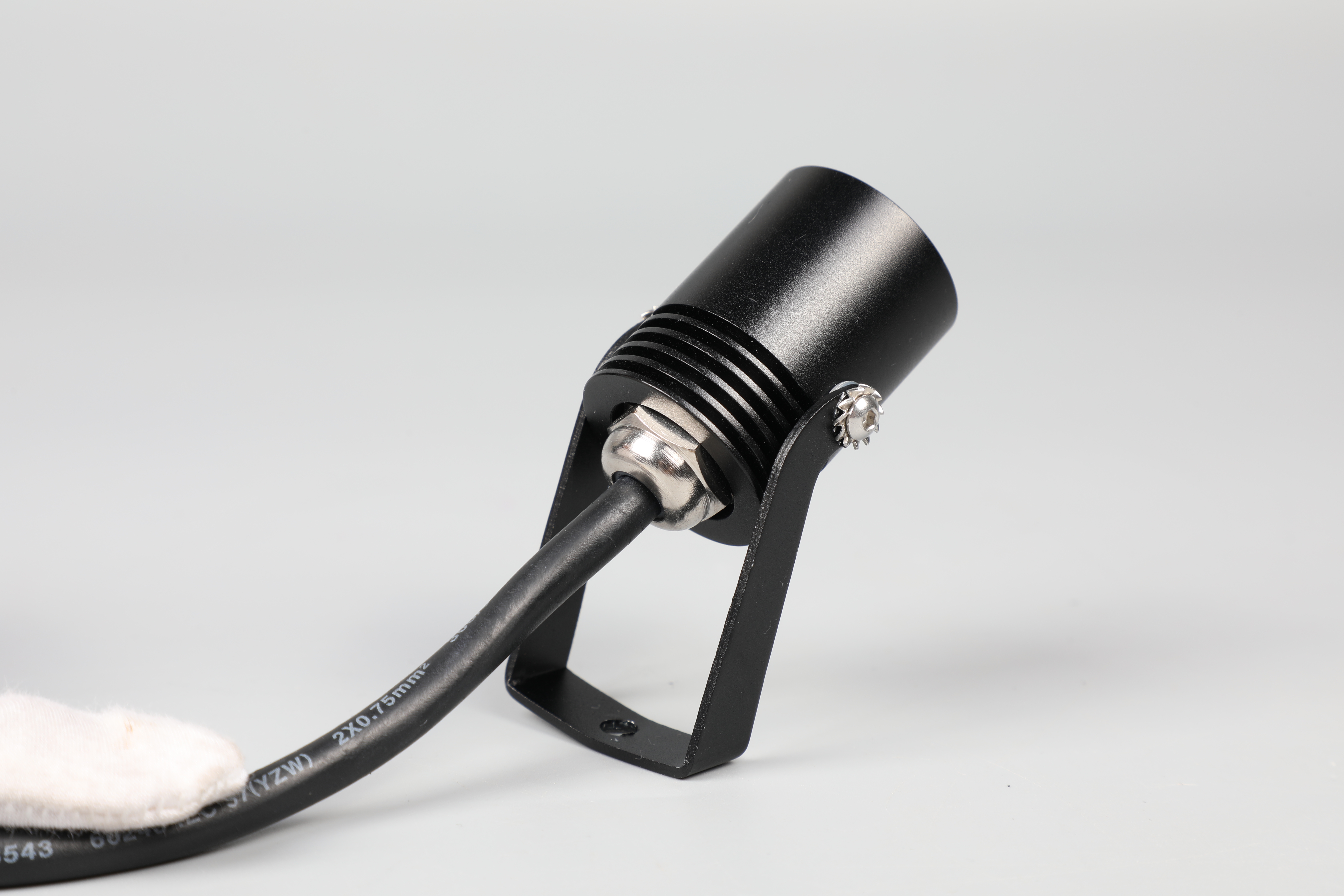

PLAYLITE
0.5kg
UL-1004-0300-A
否
.1pcs 3W LED with high lumen and beautiful light output.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.15°,25°,30°,45°,60° beam angle as options
.High luminous flux output
.IP67 waterproof
.3 years warranty
.8~10 years professional sales and technicians to serve you
General Data | |
Item No. | UL-1004-0300-A |
Power | 3Watts |
LED type | 1pcs 3W LED |
Luminous flux | 190lm |
CCT | 2700K,3000K,4000K,6000K |
CRI | 80+ |
Beam angle | 15°,25°,30°,45°,60° |
Dimension | 28*40mm (Diameter x Height ) |
Cut out | / |
Net weight | 0.097 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | DC12-24V |
Insulation class | Class III |
Cable | 1PC rubber cable 1M H05RN-F 3x1mm square |
Driver | high voltage constant current driver with transformer |
Construction Data | |
IP rating | IP67 Waterproof |
Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
Protection finishing | 20~25μm thickness anodized film for housing .Dark grey |
Trim | Passivated (Anodizing) Aluminum |
Glass | Step tempered Glass.T=4mm. |
Loading capacity | 220 kgs |
Cable Gland | PG7 IP67 |
Gasket | O-ring PMQ silicone seal |
Accessories | |
Spike | With Aluminium spike as spike spot lights (Standard) |
Round base | With SS304 round base for wall mounting (optional) |
