New competitive integrated (all in one) solar street light for city minor arterial roads,squares,villages,gardens etc
中國內地
展位編號: 8-C14 | 戶外及公共照明 | 廣東省照明電器協會展團
產品規格
Light source
High lumen SMD3030
Solar Panel Type
Monocrystalline Silicon
Battery Pack Type
LiFe PO4
Product Item
Solar LED Street Lights
Solar Panel Power
18V 30W-60W
Controller
The controller circuit is integrated in PCB
Solar panel Conversion efficiency
22%
產品簡介
Item No.: SST-50-07
It's a very competitive integrated (all in one) solar street light for city minor arterial roads,squares,villages,gardens, up to 2500lumens, supports 3 continous rainy days, fit either a pole or an arm. Solar panel direction adjustable, LiFePo4 battery
Main advantages :

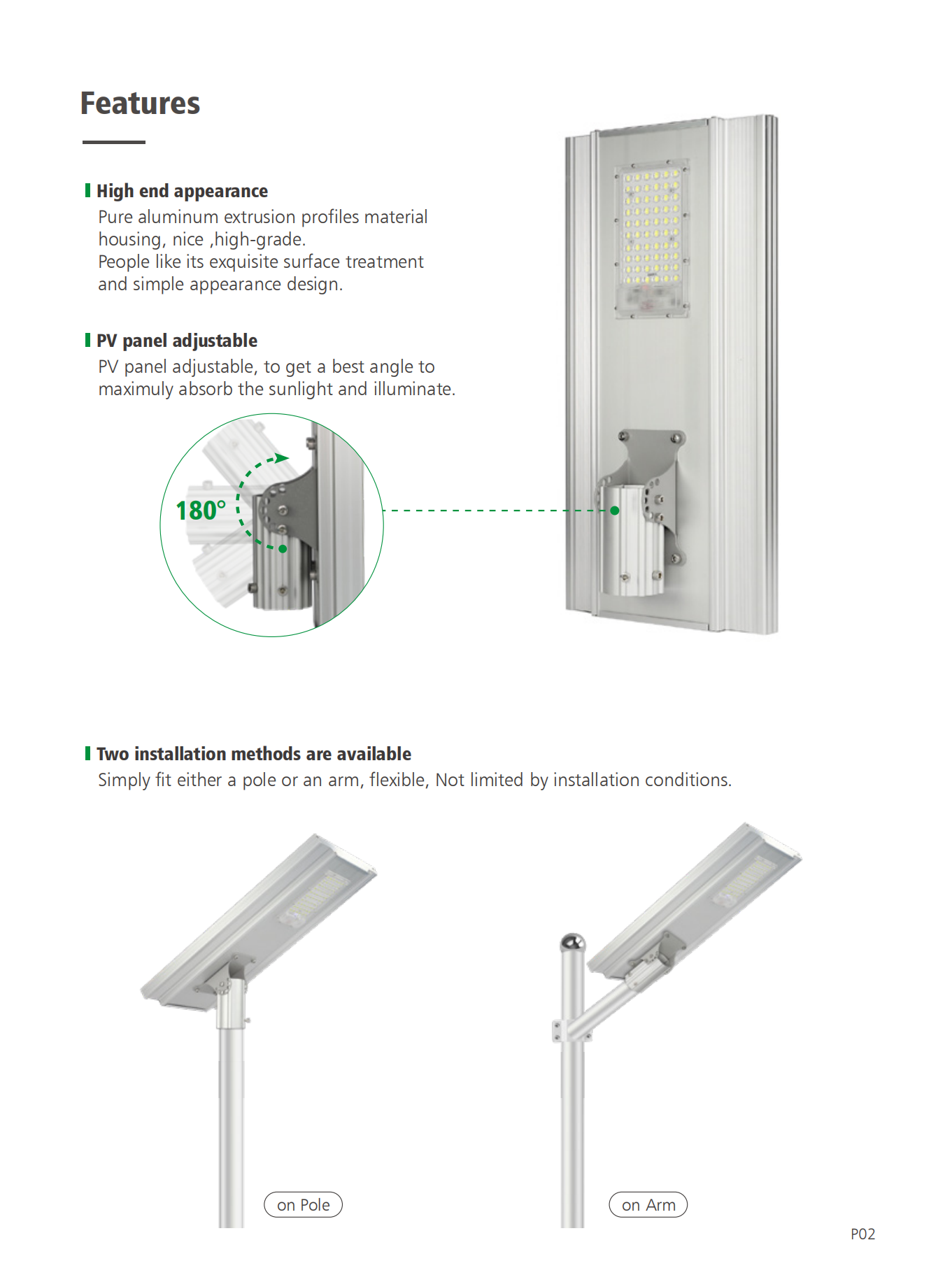

1.Looks expensive, pure aluminum extrusion profiles material housing, nice ,high-grade.
2. Rotatable installation, freely adjust to a best angle for the PV panel and illumination.
3. Simply fit either a pole or an arm, flexible.

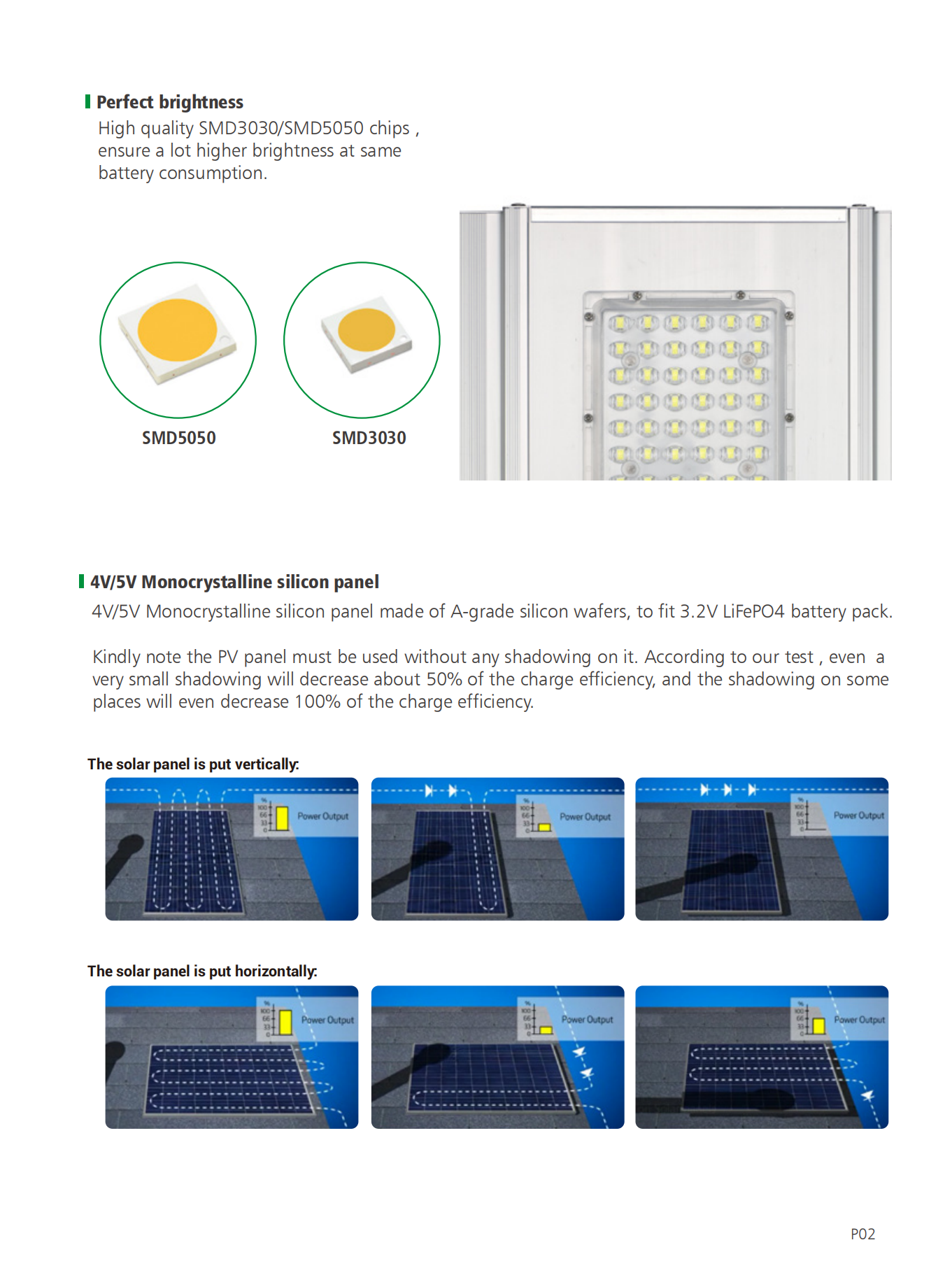

4. High quality SMD3030/SMD5050 chips , ensure a lot higher brightness at same battery consumption.
5. PV panel made of A-grade silicon wafers , LiFePO4 battery pack made of A-grade cell, reliable quality.
Specification:
*Solar panel : 4V 30Watt , Monocrystalline silicon , made of A-grade silicon wafers.

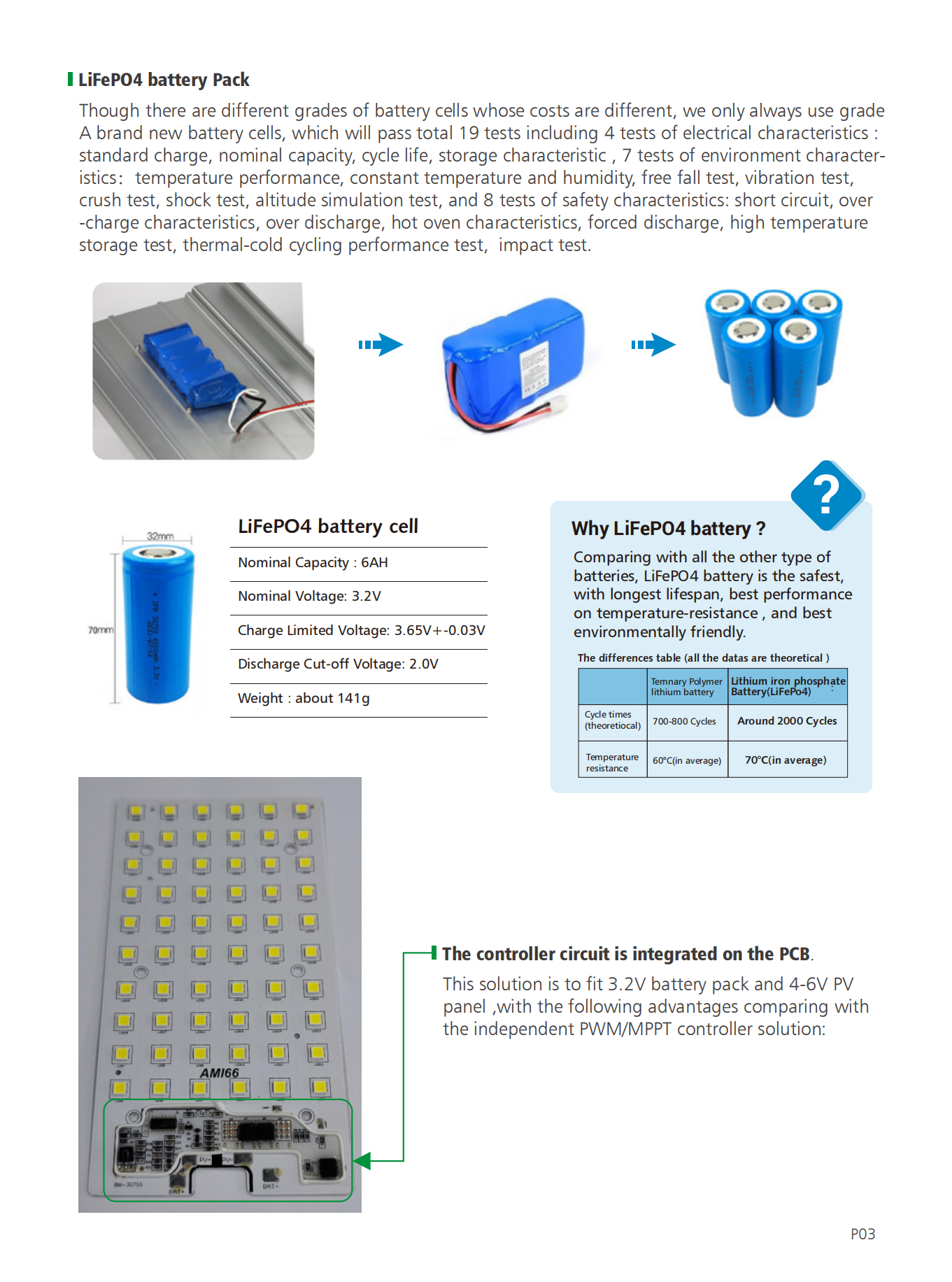

*Battery : LiFePO4 battery , 3.2V 24AH , made of A-grade battery cells.
*Charging time : around 3.2h (with enough sunshine)
*Lighting time : can choose 4H/6H/8H/10H/ All night lighting for each night (settable by remote controller)
*Working modes ： Photosensor + Time control
(lamp start lighting at sunset and stop lighting at sunrise)
*Light source: 28pcs of SMD3030 chips
* Color temperature : 6000K
*Lumen efficiency: about 200lm/w
*Total lumen : 2000-3000lumens
*Beam angle : 150*80 degrees

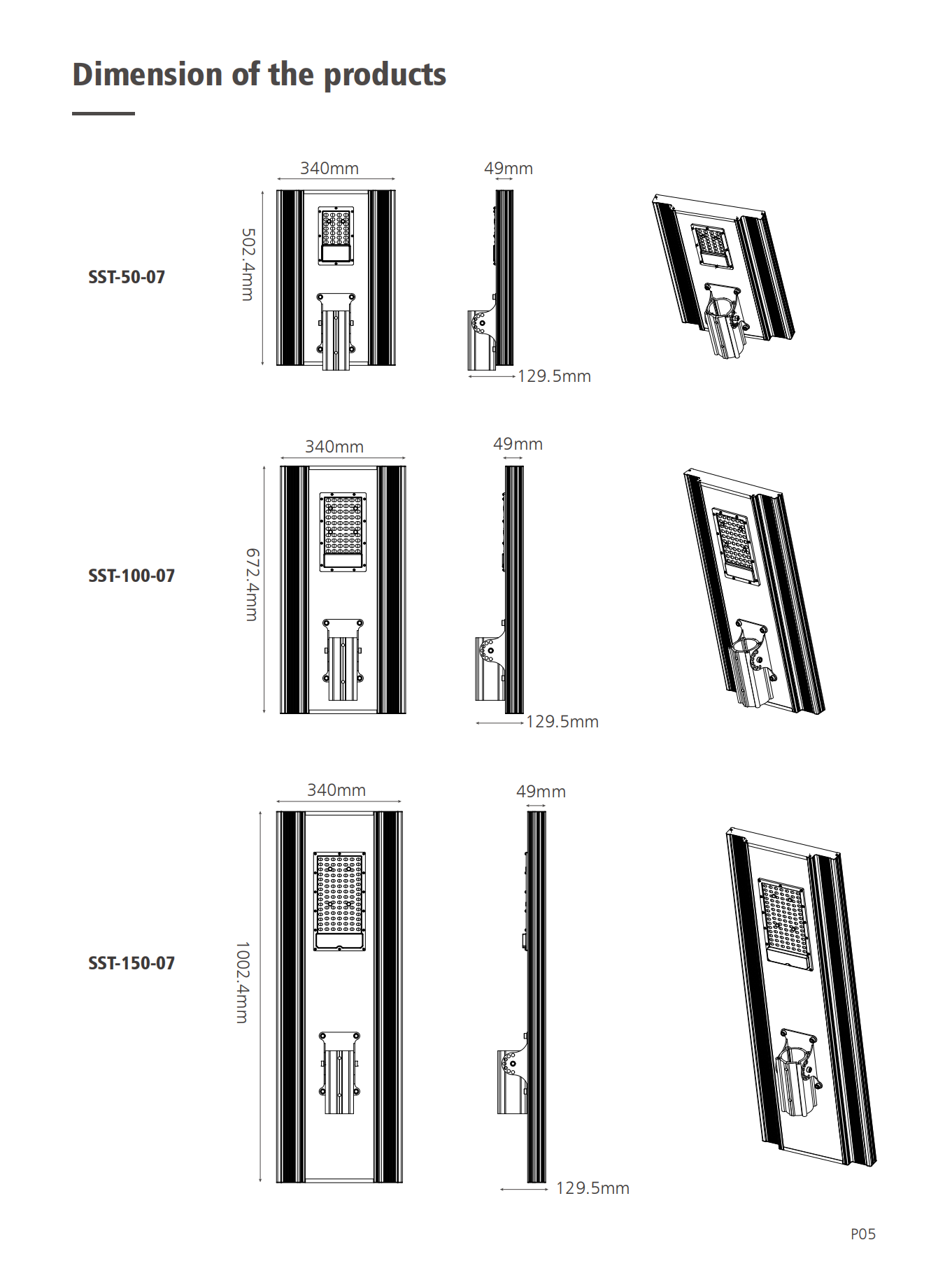

*Lamp size : 502.4*340*129.5mm
*Lamp materials : pure aluminum extrusion profiles material housing + PC lens
*IP rating : IP66
*Accessories: with remote controller
*Installation Height: 4-5m
*Warranty : 3 years
More information:
1.Looks expensive, pure aluminum extrusion profiles material housing, nice ,high-grade.
2. Rotatable installation, freely adjust to a best angle for the PV panel and illumination.
3. Simply fit either a pole or an arm, flexible.
4. High quality SMD3030/SMD5050 chips , ensure a lot higher brightness at same battery consumption.
5. PV panel made of A-grade silicon wafers , LiFePO4 battery pack made of A-grade cell, reliable quality.
Specification:
*Solar panel : 4V 30Watt , Monocrystalline silicon , made of A-grade silicon wafers.
*Battery : LiFePO4 battery , 3.2V 24AH , made of A-grade battery cells.
*Charging time : around 3.2h (with enough sunshine)
*Lighting time : can choose 4H/6H/8H/10H/ All night lighting for each night (settable by remote controller)
*Working modes ： Photosensor + Time control
(lamp start lighting at sunset and stop lighting at sunrise)
*Light source: 28pcs of SMD3030 chips
* Color temperature : 6000K
*Lumen efficiency: about 200lm/w
*Total lumen : 2000-3000lumens
*Beam angle : 150*80 degrees
*Lamp size : 502.4*340*129.5mm
*Lamp materials : pure aluminum extrusion profiles material housing + PC lens
*IP rating : IP66
*Accessories: with remote controller
*Installation Height: 4-5m
*Warranty : 3 years
More information:
生產所需時間
5 日
