Back-lit Smart Panel Light | Lights | Indoor Lighting
Back-lit Smart Panel Light
Mainland China
Booth: 3D-C16 | Residential Lighting |
Product Specification
Material

Aluminum+PC

Control Way

app, remote controller, smart video

Customised

Yes

CCT

3000K-5000K

Model No.

PL-Smart

Size

595*595mm, 295*1295mm

Is Dimmable

Yes

PF

>0.5, >0.9

Certification

SAA, C-Tick, CE

Brand

SIMONS

Product Description

Features

1.Innovative product,Light is even, no dark area.

2. Good quality aluminum, good heat sink.

3. Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.

4. Approved by SAA, C-tick, CE, RoHs etc.

5. Easy change CCT ( from 3000K to 5000K) through the phone.

6. Optional to choose different communication protocols ways, wifi, wifi+bluetooth, bluetooth mesh, zigbee

7. The light can be controlled by Tuya app or voice anywhere you will be

8. High quality PC diffuser with high light transmittance, anti-glare and easy to be cleaned.

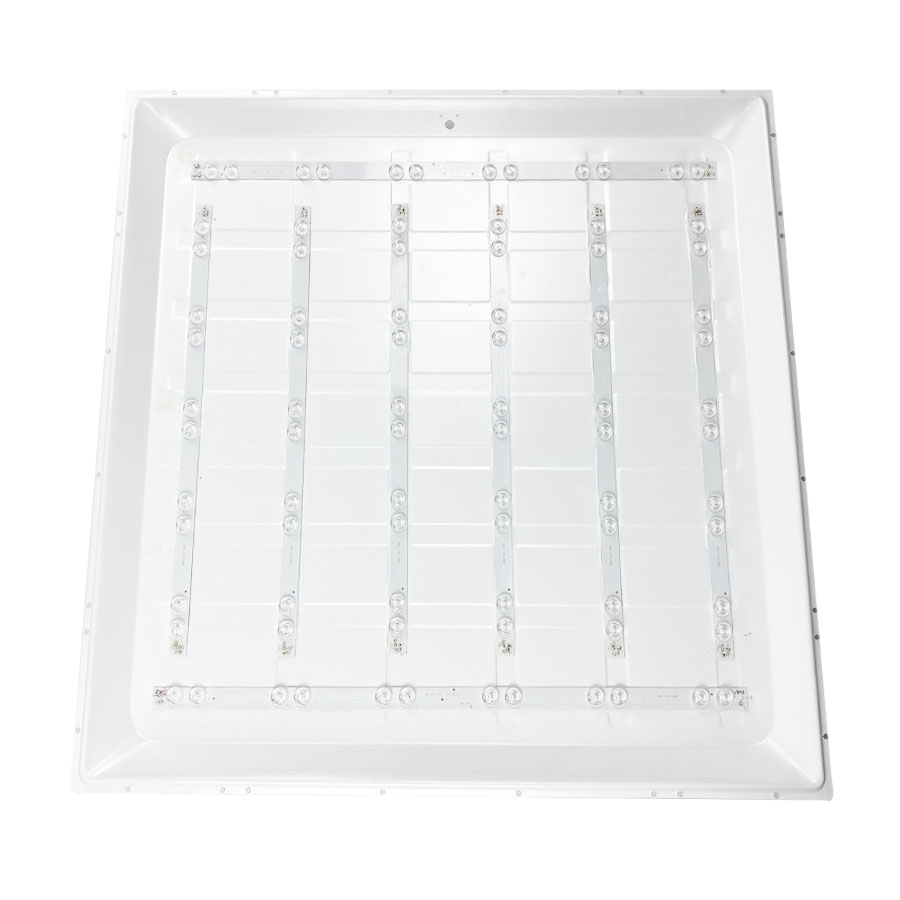

9. Two different CCT chips on the PCB board, reasonable distribution, shinning evenly. Using the app to create schedules & timing to automate your home and control the light anywhere you are.

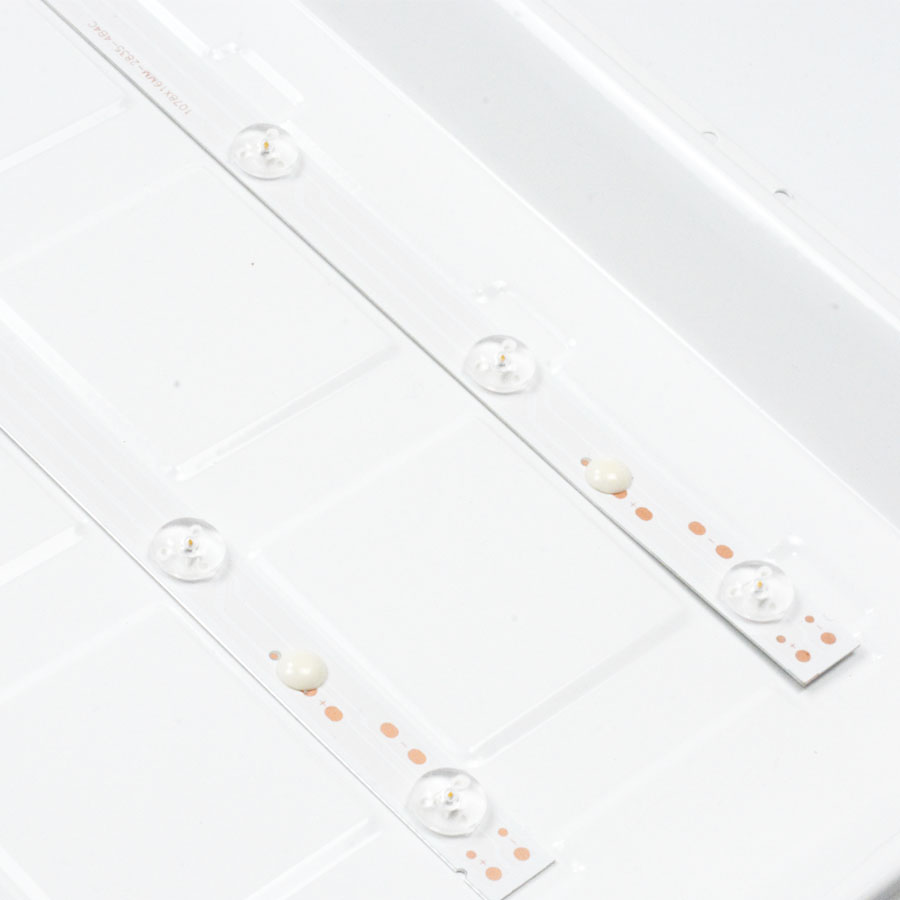

10. High quality lens to promise higher luminous efficiency, can be 140lm/w. And adding the plastic screw on the PCB board to let the PCB won’t be drop down.

11. Using the app to create schedules & timing to automate your home and control the light anywhere you are.

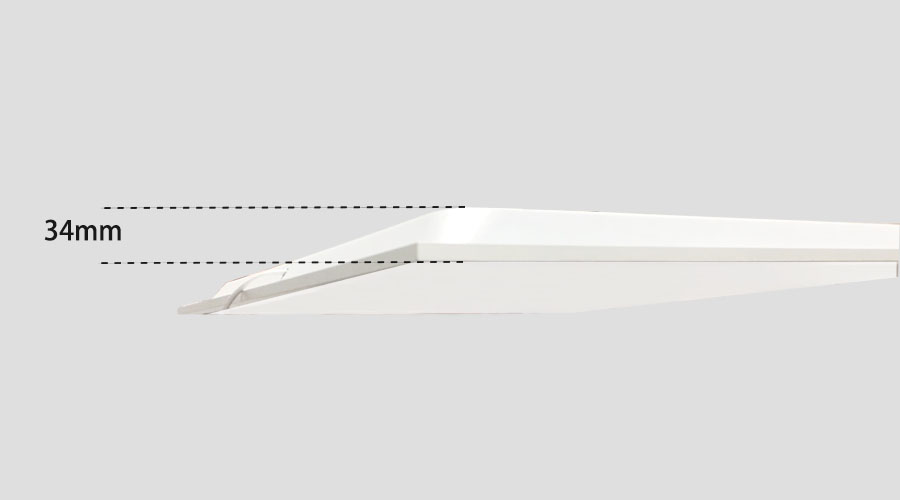

12. Ultra-thin lamp body,lighter weight and lower transportation cost. High quality of the back plate to meet good heat sink.




Spec & Models

Technical Parameter

Input Voltage200V-240VCRI (Ra>)80
Power Factor>0.9Working Frequency50/60HZ
Size595mm*595mm*34mm/1195mm*295mm*34mmThickness of back3mm, 2.5mm
Temperature-20~50℃Lifetime30000h
IP RatingIP20Back CoverIron
Cover MaterialAluminumFrame MaterialAluminum
Light SourceLEDLED ChipSMD 2835
CCT3000K-5000KBeam Angle115°
Light ColorNatural/ warm/ coldInstallationRecessed, Pendent

Models

Model

Power

Luminous Efficiency

Luminous

UGR

SM-SPL6060-25-3CCT-S

25W

120lm/w

3000lm

N

SM-SPL6060-30-3CCT-S

30W

120lm/w

3600lm

N

SM-SPL6060-25-U-3CCT-S

25W

120lm/w

3000lm

<19

SM-SPL6060-30-U-3CCT-S

30W

120lm/w

3600lm

<19

SM-LPL6060-28-3CCT-S

28W

110lm/w

3000lm

N

SM-LPL6060-36-3CCT-S

36W

110lm/w

4000lm

N

SM-SPL12030-25-3CCT-S

25W

120lm/w

3000lm

N

SM-SPL12030-30-3CCT-S

30W

120lm/w

3600lm

N

SM-SPL12030-25-U-3CCT-S

25W

120lm/w

3000lm

<19

SM-SPL12030-30-U-3CCT-S

30W

120lm/w

3600lm

<19

SM-LPL12030-28-3CCT-S

28W

110lm/w

3000lm

N

SM-LPL12030-36-3CCT-S

36W

110lm/w

4000lm

N

Packaging

Model

Net Weight

Gross Weight

Qtys(per carton)

Carton Size

SM-SPL6060-25-3CCT-S,SM-SPL6060-30-3CCT-S,


SM-LPL6060-28-3CCT-S,

SM-LPL6060-36-3CCT-S

10.2KG

11.65KG

6pcs

64X64X23cm

SM-SPL6060-25-U-3CCT-S,SM-SPL6060-30-U-3CCT-S

12.96KG

14.15KG

6pcs

64X64X23cm

SM-SPL12030-25-3CCT-S,SM-SPL12030-30-3CCT-S,


SM-LPL12030-28-3CCT-S, SM-LPL12030-36-3CCT-S

11.1KG

12.6KG

6pcs

124X34X23cm

SM-SPL12030-25-U-3CCT-S,SM-SPL12030-30-U-3CCT-S

13.62KG

15.1KG

6pcs

124X34X23cm

Production Lead Time

25-35 days
