LED Downlight | Lights
Mainland China
Booth: 3D-C16 | Residential Lighting |
Product Specification
Diameter

103mm

Power

6W, 8W, 9W

Model No.

DL10

Optics

Lens

Brand

SIMONS

Customised

Yes

CCT

Tri-colour(3000K, 4000K, 5000K)

Cut-out

90mm

Certification

SAA, C-Tick, CE, RoHs

Product Description

Features

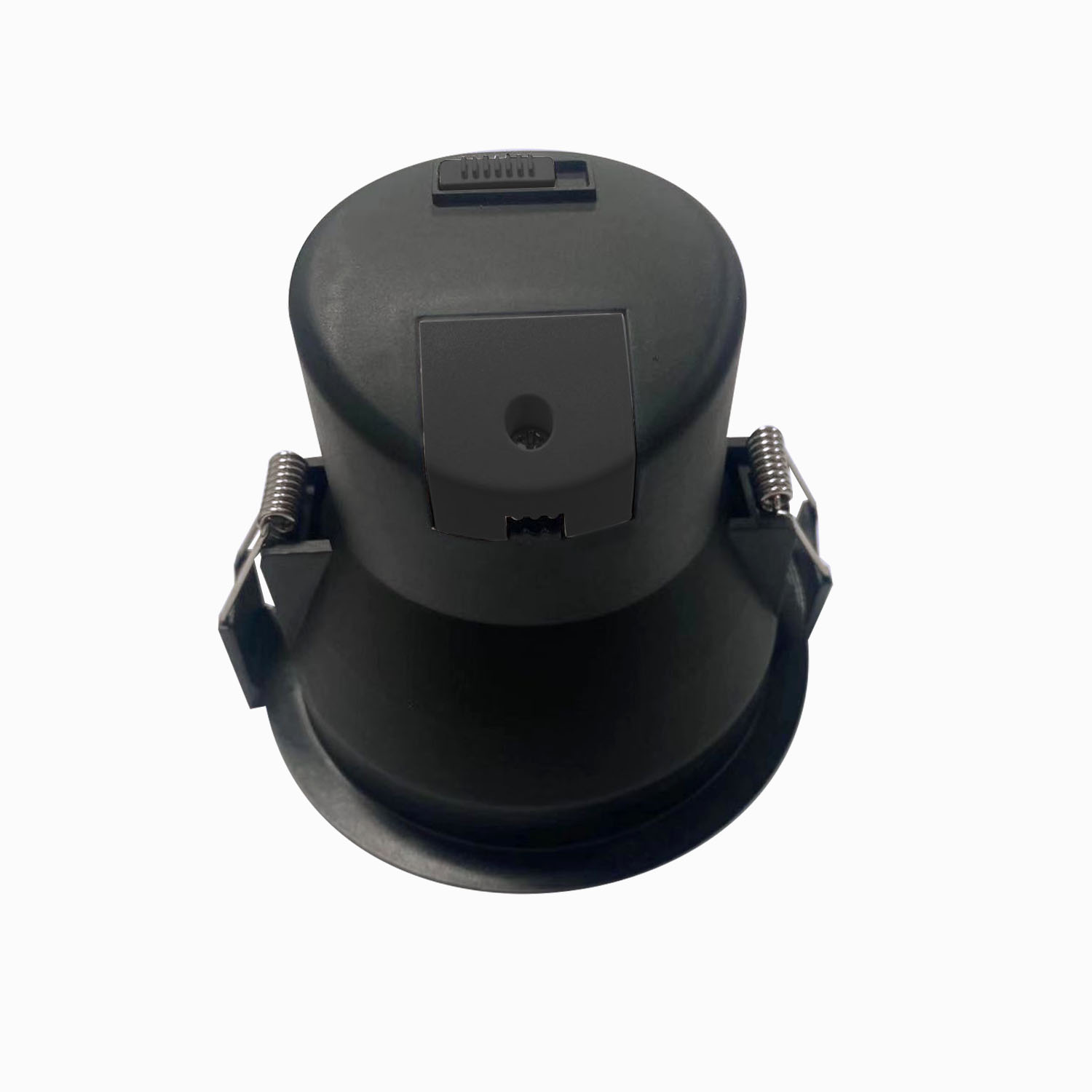

90mm cut-out 3-CCT Changeable Deep Recessed Downlight with Lens

1. Integrated design with internal driver, elegant appearance.

2. With 0.8m AC cable and plug, easy to be installed.

3.  Deep recessed downlight with lens, beam angle is 60 degree, UGR<19.

4. High efficiency SMD LED chip, special appearance on the light.

5. CRI>80, 3-CCT changeable on the light, switch is on the back of the light, end-customer is easy to change the CCT to 3000K, 4000K, 5000K, can help you to reduce the stock.

6. The materials of this downlight is plastic+aluminum, high cost effective.

7. High-thermal conductivity plastic on the housing, IC-4 rated, can be safely covered and abutted to building insulation.

8. White and black housing are optional, the colour of the fascia and housing can be different.

9. Perfect for residential or commercial application.

10. Excellent dimming performance, can be best fitted for trailing-edge dimmer.

11. 90mm cut-out, can suitable for most of the customer needs and AU market requirement.

12. Dimmer Type: Trailing edge, 0-10V, DALI / DSI, Tuya Smart

13. IP44 rated, can be fitted for most of indoor application.

14. The package of the light can be customized by customer needs.

15. Easy to replace your former high cost aluminum downlight and has the same performance.

16. SAA, C-tick, CE, RoHs approved.



Technical Parameter

Input Voltage200V-240VCRI (Ra>)80,90
Power Factor>0.9Working Frequency50/60HZ

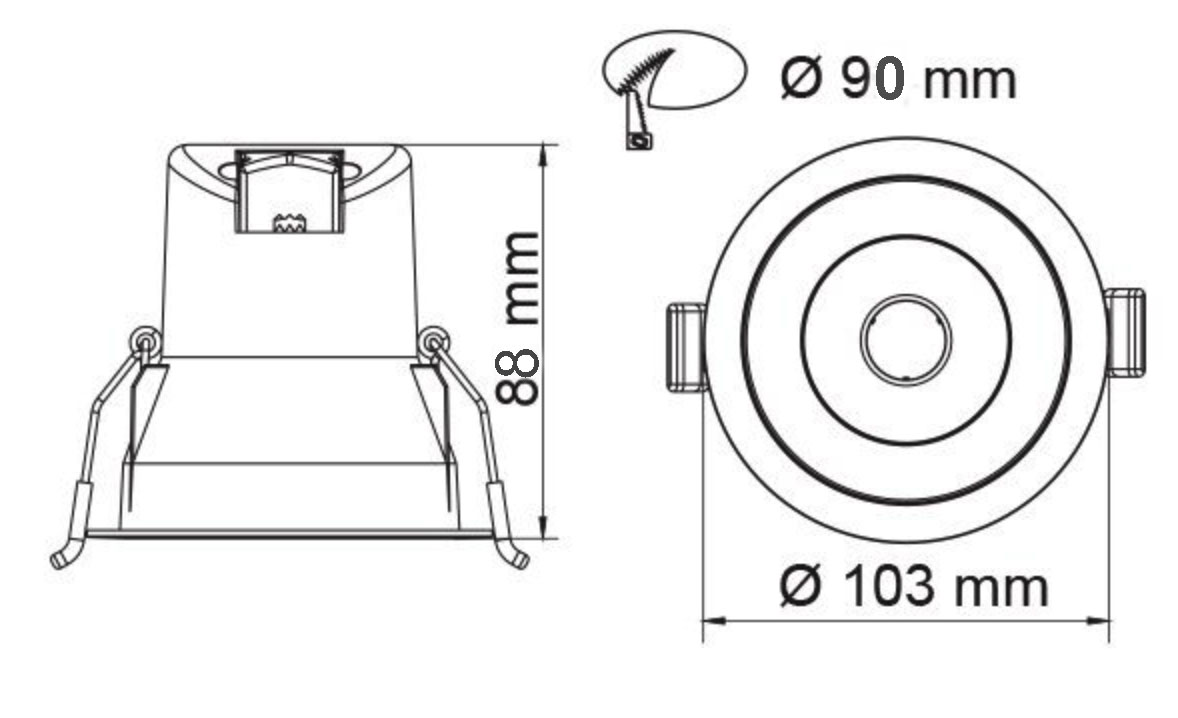

Power6W, 8W, 9WCut Out90mm
Diameter103mmHeight88mm
Temperature-2050℃Lifetime30000h
IP RatingIP40MaterialsPlastic +Aluminum
Light SourceLEDLED ChipSMD
CCTTri-colour(3000K, 4000K, 5000K)Beam Angle60°
Light ColorNatural/ warm/ coldInstallationRecessed



Models

Model

Power

Luminous

Efficiency

Luminous

Dimmable

CCT

DL10-03-06

6W

           60-80lm/w

360-480lm

Dimmable

3000K, 4000K, 5000K

DL10-03-08

8W

60-80lm/w

480-640lm

Dimmable

3000K, 4000K, 5000K

DL10-03-09

9W

60-80lm/w

540-720lm

Dimmable

3000K, 4000K, 5000K

Production Lead Time

25-35 days
