32.768KHz DT-26 DIP Crystal 32.768K Xtal
Hong Kong
Booth: 5B-A01 | Electronic Parts, Components and Production Technology |
Product Specification
Load Capacitance

7pF/9pF/12.5pF

Brand

JGHC晶光华

Nominal Frequency

32.768KHz

Model No.

Y26

Frequency Difference

10ppm/20ppm

Size

2.0x6.0mm

Customised

Yes

Product Description
32.768khz Clock Crystal Resonator Y26 Series

Features

Application for variety products reference clocks.

reliable environmental performance.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE

Y26

Nominal Frequency

32.768KHz

Load Capacitance

7pF,9pF,12.5pF, or specify

Frequency Tolerance (at 25℃)

±20ppm, or specify

Operating Temperature Range

-70~+70℃, or specify

Parabolic Coefficient (B)

(-0.03±0.01) 10-6 * / ℃2

Shunt Capacitance (C0)

2.0pF typical

Drive Level

1.0μW Max.

Aging (at 25℃)

±3ppm/year Max.

Storage Temperature Range

-55~+125℃

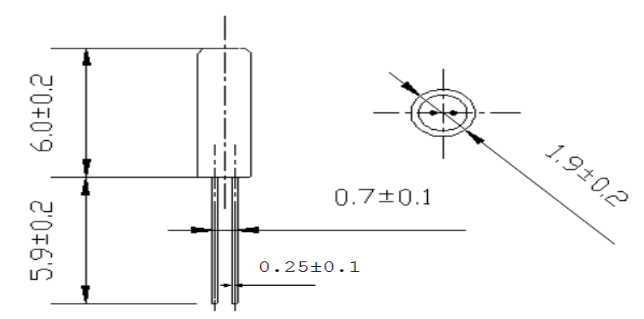

Dimensions and patterns(unit:mm)
