Product Specification
Size
3.0x8.0mm
Brand
JGHC晶光华
Load Capacitance
7pF/9pF/12.5pF
Customised
Yes
Model No.
Y38
Nominal Frequency
32.768KHz
Frequency Difference
10ppm/20ppm
Product Description
32.768khz Clock Crystal Resonator Y38 Series
Application for variety products reference clocks.
reliable environmental performance.
RoHS Compliant / Pb Free.
Crystals specifications
ITEMS/TYPE | Y38 |
Nominal Frequency | 32.768KHz |
Load Capacitance | 7pF,9pF,12.5pF, or specify |
Frequency Tolerance (at 25℃) | ±20ppm, or specify |
Operating Temperature Range | -20~+70℃, or specify |
Parabolic Coefficient (B) | (-0.03±0.01) 10-6 * / ℃2 |
Shunt Capacitance (C0) | 2.0pF typical |
Drive Level | 1.0μW Max. |
Aging (at 25℃) | ±3ppm/year Max. |
Storage Temperature Range | -55~+125℃ |

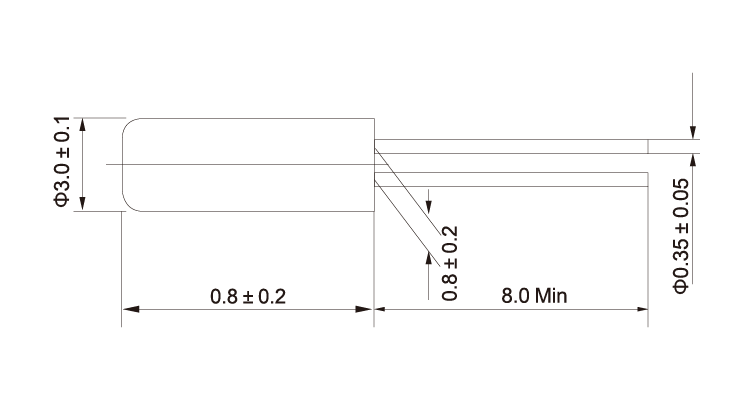

Dimensions and patterns(unit:mm)
