SMD Seam Sealing Crystals 5.0x3.2x0.9mm S53 Series
5032 SMD Crystal 8MHz-54MHz Xtal
REMOVE FROM 'FAVOURITE EXHIBITORS' LIST?
Once you confirm, this exhibitor and relevant notes will be deleted permanently.
Cancel
Remove
Hong Kong
Booth: 5B-A01 | Electronic Parts, Components and Production Technology |
Product Specification
Frequency Difference
±20ppm or specif
Model No.
S53
Size
5.0x3.2x0.9mm
Brand
JGHC晶光华
Load Capacitance
20pF or specif
Customised
Yes
Nominal Frequency
8-54MHz
Product Description
Features
High precision characteristics covering up to wide frequency range.
Higher frequency stability and reliability.
Excellent for reducing EMI effect.
The best choice of Bluetooth, wireless communication set, DSC, PDA,mobile phone and USB interface card.
RoHS Compliant / Pb Free.
Crystals specifications:
ITEMS/TYPE | S53 |
Frequency Range | 8~54MHz |
Load Capacitance | 10pF, 12pF, 16pF, 20pF, or specify |
Frequency Tolerance (at 25℃) | ±10ppm, ±20ppm, or specify |
Frequency Stability Over Operating Temperature Range | ±10ppm, ±20ppm, or specify |
Operating Temperature Range | -40~+85℃, or specify |
Shunt Capacitance (C0) | 5pF Max. (2pF typical) |
Drive Level | 1~200μW (100 μW typical) |
Aging (at 25℃) | ± 3 ppm/year Max. |
Storage Temperature Range | -40~+125℃ |

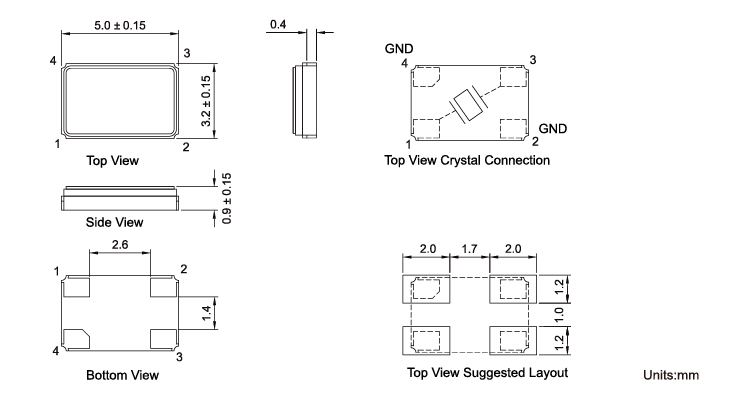

Dimensions and patterns(unit:mm):
