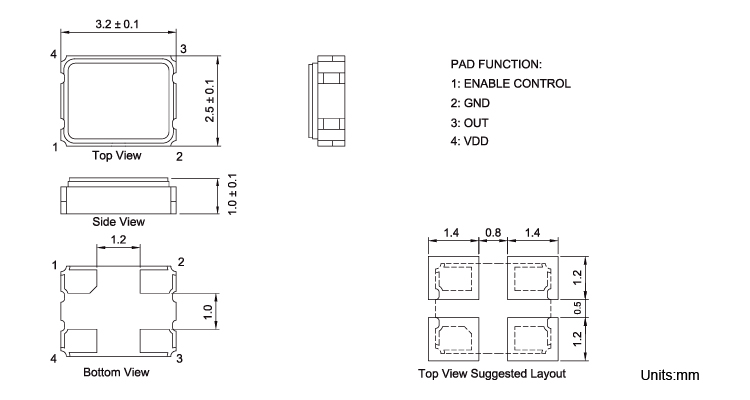

Dimensions and patterns(unit:mm)
Yes
1.8-5.0V or specif
±20ppm or specif
1-200MHz
JGHC晶光华
3.2x2.5x1mm
O32
SMD Crystal Oscillators CMOS Output 3.2 x 2.5 mm O32 Series
Features
Small SMD seam sealed clock crystal oscillator units.
High precision characteristic covering up to wide frequency range.
Designed for automatic mounting and reflow soldering.
Tri-State function available.
Supply voltage range : 1.8V~5.0V.
High stability, low jitter, low power consumption.
Main application : wireless communication set, PDA, and DSC.
RoHS Compliant / Pb Free
Crystals specifications
ITEMS/TYPE | O32 |
Frequency Range | 1~200MHz |
Output Type | CMOS |
Output Load | 15 pF , or specify |
Oscillation Mode | Fundamental / 3rd Overtone |
Supply Voltage | 1.8V~5.0V, or specify |
Frequency Stability | ± 20 ppm , or specify |
Operating Temperature Range | -40~+85 ℃ , or specify |
Storage Temperature Range | -55~+125 ℃ |
Voltage Vol ( Max. )/Voltage Voh ( Min. ) | VOH=90%Vdd / VOL+10%Vdd |
Rise ( Tr ) / Fall ( Tf ) Time | 8 ns Max. |
Current Consumption | 20 mA Max. |
Symmetry | 40 ~ 60 % |
Start-up Time | 5 ms Max. |
Phase Jitter ( 12 KHz ~ 20 MHz ) | 1 ps Max. |
Aging ( at 25℃) | ± 3 ppm / year Max. |
