OSC2016 SMD Crystal Oscillator 1MHz-125MHz CMOS Output

Hong Kong

Booth: 5B-A01 | Electronic Parts, Components and Production Technology |

Product Specification

Customised

Yes

Brand

JGHC晶光华

Frequency Difference

±20ppm or specif

Frequency

1-125MHz

Size

2.0x1.6x0.8mm

Model No.

O21

Voltage

1.8-5.0V or specif

Product Description

SMD Crystal Oscillators CMOS Output 2.0x1.6x0.8mm O21 Series

Extremely small SMD seam sealed clock oscillator unit.

Application for smart phone, sip module, variety of compact portable consumer products.

Tri-state function available.

High reliable environmental performance.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	O21
Frequency Range	1~125MHz
Output Type	CMOS
Output Load	15 pF , or specify
Oscillation Mode	Fundamental
Supply Voltage	1.8V~5.0V, or specify
Frequency Stability	± 20 ppm , or specify
Operating Temperature Range	-40~+85 ℃ , or specify
Storage Temperature Range	-55~+125 ℃
Voltage Vol ( Max. )/Voltage Voh ( Min. )	VOH=90%Vdd / VOL+10%Vdd
Rise ( Tr ) / Fall ( Tf ) Time	8 ns Max.
Current Consumption	20 mA Max.
Symmetry	40 ~ 60 %
Start-up Time	5 ms Max.
Phase Jitter ( 12 KHz ~ 20 MHz )	1 ps Max.
Aging ( at 25℃)	± 3 ppm / year Max.

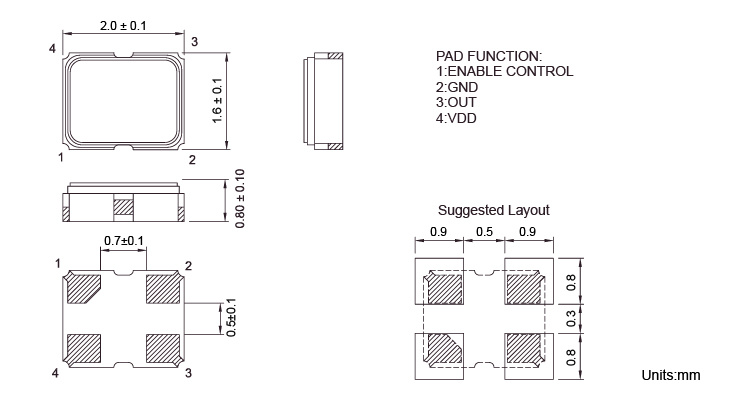

Dimensions and patterns(unit:mm)
